Vivo STAND-V002O Series Assembly Manual
Mechanical arm dual monitor desk mount
Hide thumbs
Also See for STAND-V002O Series:
- Assembly manual (12 pages) ,
- Instruction manual (8 pages) ,
- Instruction manual (8 pages)
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V002O Series
Summary of Contents for Vivo STAND-V002O Series

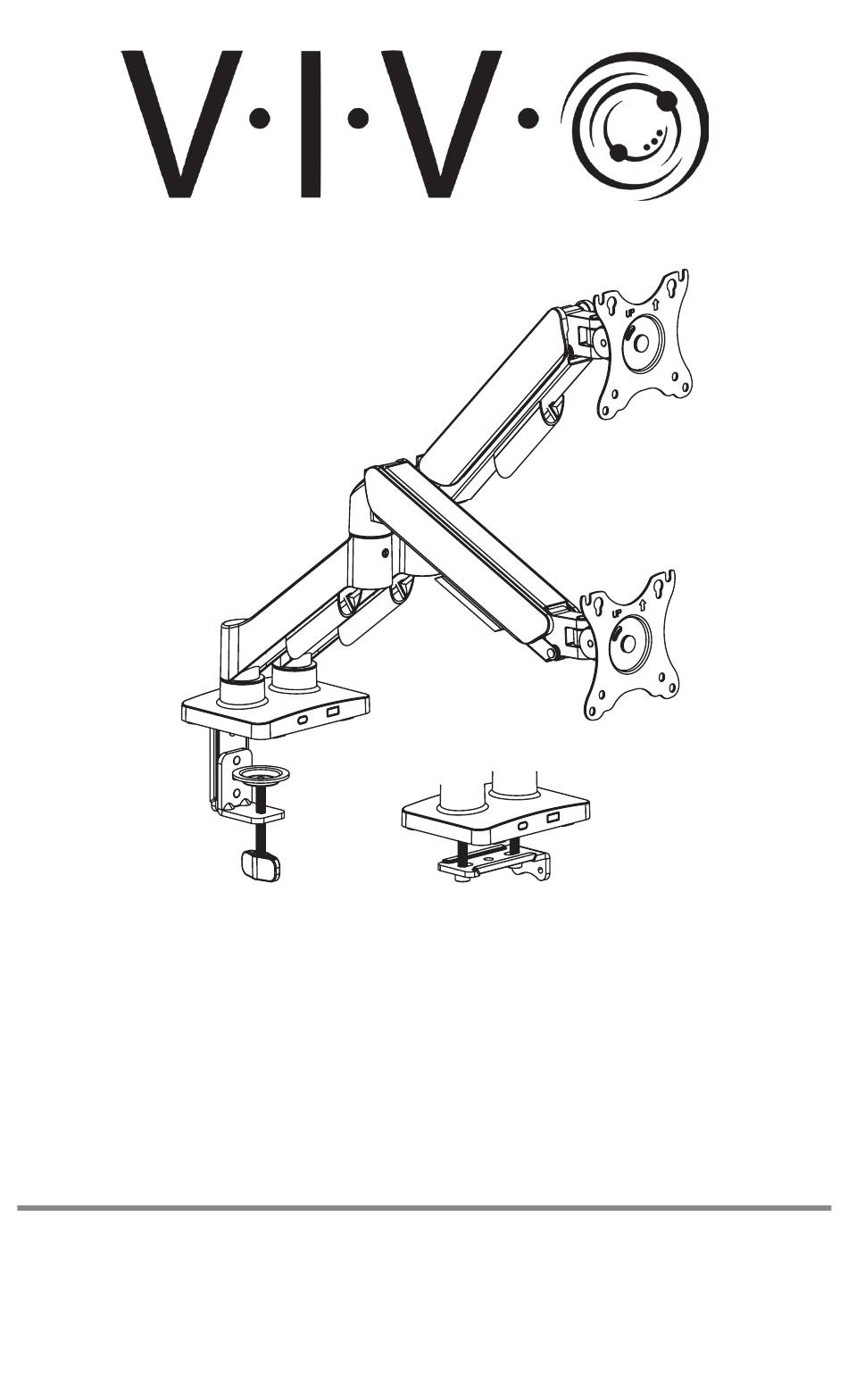

- Page 1 Mechanical Arm Dual Monitor Desk Mount STAND-V002O Series Assembly Manual Individual Product SKUs STAND-V002O STAND-V002OW...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
-
Page 4: Package Contents
Package Contents B (x2) C (x2) A (x2) D (x1) VESA Plate Upper Arm Lower Arm Base E (x4) F (x1) G (x1) H (x2) I (x1) Cable Cover Upper Clamp Lower Clamp Small Pad Large Pad Included Hardware & Tools *Some hardware may not be utilized. - Page 5 Assembly Steps STEP 1 Option 1: Clamp Installation For Grommet Installation, proceed to Page 7 Remove the Plastic Cover (D1) from Install the Upper Clamp (F) to the Base (D) the Base (D). using the M6x8mm Screws (S-C) and 5mm Allen Wrench (T-B).
- Page 6 For Desktops 0.4” - 1.9” (10-50mm) Thick Attach the Lower Clamp (G) to the upper two holes on the Upper Clamp (F) using the M8x10mm Screws (S-B) and 5mm Allen Wrench (T-B). Clamp the assembly to the desktop. Proceed to STEP 2 on Page 8 For Desktops 1.9”...
- Page 7 Option 2: Grommet Installation Only for desktops 0.4” - 1.9” (10-48mm) thick 2.6” (65mm) Secure the Plastic Cover (D1) to the Base (D) Drill two grommet holes through the using ST3x6mm Screws (S-D) and the Phillips desktop 2.6” (65mm) apart using a 3/8” end of the 5mm Allen Wrench (T-B).
- Page 8 STEP 2 Insert Lower Arms (B) into Base (D) and secure by tightening the set screws using the flat head end of 4mm Allen Wrench (T-A). The set screws may need to be loosened before inserting Lower Arm. STEP 3 Insert Upper Arms (A) into Lower Arms (B) and secure by tightening the set screws using the flat head end of 4mm Allen Wrench (T-A).
- Page 9 STEP 4 Attach VESA Plates (C) to Upper Arms (A) using the M8x30mm Screws (S-A) and 5mm Allen Wrench (T-B). Ensure the open holes are on the top. Too Stiff? If the VESA Plate (C) is too stiff, loosen the the screw located on the side using 5mm Allen Wrench (T-B).
- Page 10 STEP 5 Thread two M4x12mm Screws (M-A) with M5 Washers (M-B) into the top VESA holes on your monitors leaving 3mm of threading exposed using 5mm Allen Wrench (T-B).
- Page 11 STEP 6 Hook the monitors onto the VESA Plates (C). Install two more M4x12mm Screws (M-A) with M5 Washers (M-B) into the bottom VESA holes and tighten using the Phillips end of 5mm Allen Wrench (T-B). Then tighten the two previously installed upper VESA screws. 2 Person Mounting Recommended...
- Page 12 STEP 6 Adjusting Monitor Height 2 Person Adjustment Recommended Position Mount Arm Turn 10-20x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 5mm Allen Wrench (T-B) 10-20 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
- Page 13 STEP 7 Manage cables using Cable Covers (E). Slide Cable Covers Align Prongs to Reinstall Forward to Remove Align the prongs on the Covers with the slots on the underside of the arm, then slide down to lock in place. DO NOT PULL COVERS DOWN Doing so will damage the covers...
- Page 14 Adjustments To adjust the vertical tilt, loosen the side screw behind the monitor using 5mm Allen Wrench (T-B), adjust as desired then re-tighten. Swing and rotate as desired. Note: The M8x30mm Screws (S-A) from step 4 may need to be loosened first to allow swinging.
- Page 15 Love Your New Setup? Tag Us on Social! @ VIVO-us @ vivo_us @VIVOus VIVO...
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
