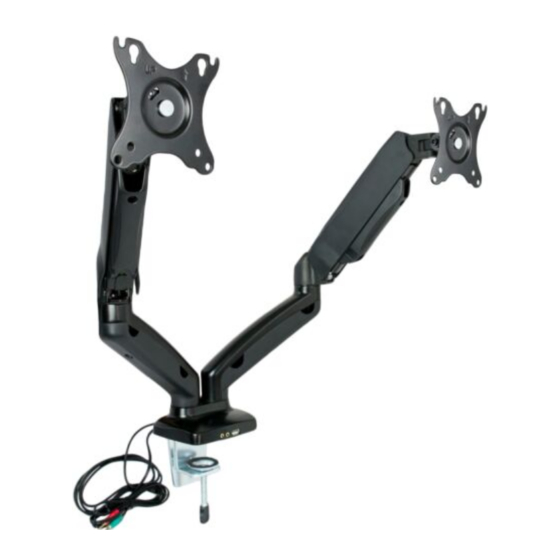

Mechanical Arm Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002OU
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002ou
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V002OU
Summary of Contents for Vivo STAND-V002OU
- Page 1 Mechanical Arm Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002OU Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002ou GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Assembly Steps
ASSEMBLY STEPS STEP 1 - Clamp Installation Remove Plastic Shroud (C1) from Base (C). Adjust the knob completely down on Lower Clamp (F). 0.4”-1.90” (10-50mm) DESKTOPS install Upper Clamp (E) to Base (C) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B).Re- install the Plastic Shroud (C1) onto Base (C) using ST3x8mm Screws (S-D) and 5mm Allen Wrench (T-B). - Page 4 STEP 1 - Clamp Installation - Continued 1.8”-3.1” (45-85mm) DESKTOPS install Upper Clamp (E) to Base (C) using M6x8mm Screws (S-A) and 5mm Allen Wrench (T-B). Reinstall the Plastic Shroud (C1) onto Base (C) using ST3x8mm Screws (S-D) and 5mm Allen Wrench (T-B).
- Page 5 STEP 1 - Grommet Installation - Continued The Base (C) features a Plastic Shroud (C1) over the top of the metal portion, which is often removed in clamp instalaltions. For a grommet mount, it stays in place, but will need secure. Secure the Plastic Shroud (C1) to Base (C) using ST3x8mm Screws (S-D) and the Phillips end of 5mm Allen Wrench (T-B).
- Page 6 STEP 2 Place Lower Arms (A) onto Base (C) and Upper Arms (B) onto Lower Arms (A). Tighten set screws using the flathead end on 4mm Allen Wrench (T-A). STEP 3 Attach VESA Plates (D) to Upper Arms (B) using M8x30mm Screws (S-C) and 5mm Allen Wrench (T-B).
- Page 7 STEP 4 Install two Screws (M-A or M-B) and M5 Washers (M-C) using the Phillips end on 5mm Allen Wrench (T-B) to the top VESA holes on the monitor leaving at least 3mm of clearance between the screw and monitor. Slide the monitor onto VESA Plate (D) making sure the screws sit within the slots. Tighten the top two screws and install the remaining Screws (M-A or M-B) and 5mm Washers (M-C) using the Phillips end on 5mm Allen Wrench (T-B).
-
Page 8: Tension Adjustment
Tension Adjustment While holding the arm in the horizontal position, adjust the gas spring tension using the 5mm Allen Wrench (T-A). WARNINGS CAUTION: To avoid damage to the monitor or mount, always ensure the arm is in a horizontal position before making adjustments. -
Page 9: Cable Management
Cable Management Remove bottom plastic covers from Lower Arm (A) using the Phillips end of 5mm Allen Wrench (T-B). Slide plasic covers off of Upper Arms (B). Run cables from monitors through bottom of Upper Arms (A) and Lower Arms (B), then reattach plastic covers. - Page 10 Adjust as Desired Adjust monitor tilt support using 5mm Allen Wrench (T-B) as shown. Adjust monitor position as desired.
- Page 11 [ THIS PAGE INTENTIONALLY LEFT BLANK ]...
- Page 12 : 1HR 8M (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
