Summary of Contents for Allegion Schlage Ascent

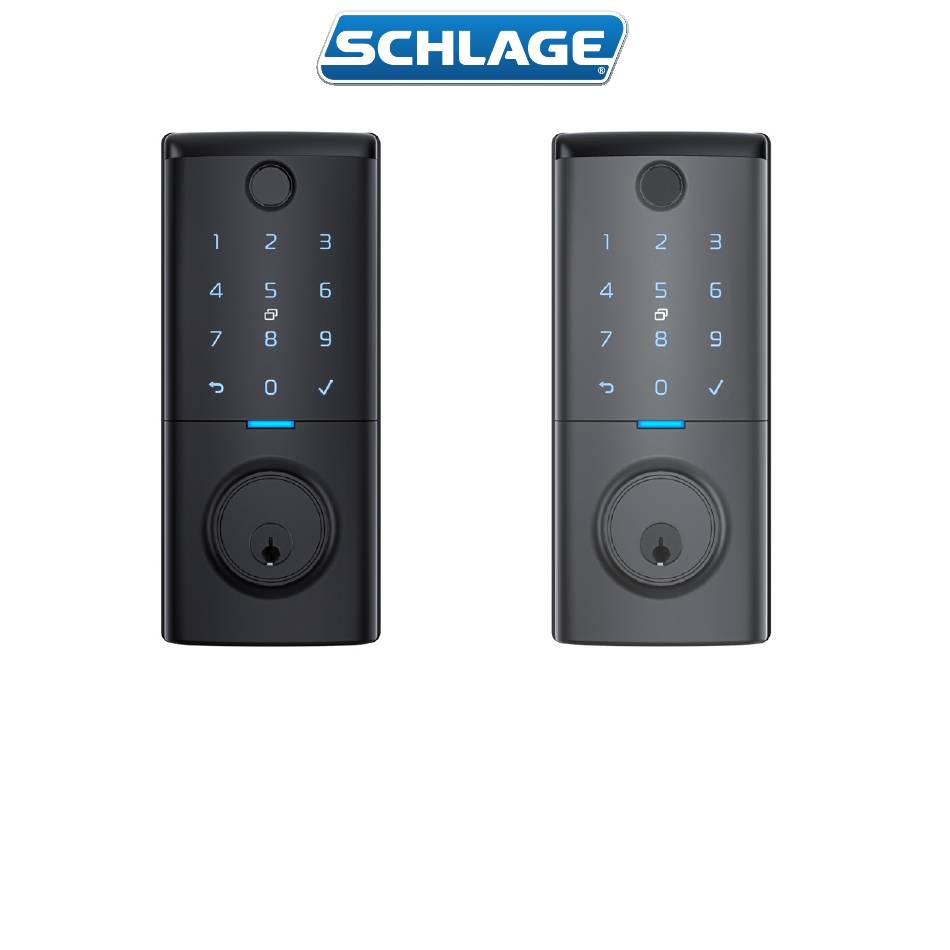

- Page 1 Ascent Schlage SMART DEADBOLT Quick Start Guide...
- Page 2 Parts Tools required Hole saw - Ø54mm Screwdrivers Tape measure (Phillips #1, #2 & #3) Pencil Spade bit - Ø25mm Level (timber door) Drill Hole saw - Ø25mm (metal door) Drill bit - Ø10mm Door thickness 32mm - 55mm Components 5.
-
Page 3: Installation
Fixing pack Door thickness Mounting screws Installation fixings Deadbolt fixings 1x M4x25mm CSK screw 32mm - 40mm 1x M4xM5x30mm standoff 4x M4x20mm screw for 2x M6x45mm CSK screw 3x M3x10mm CSK screws wooden door 1x Reset pin 4x M3.9x16mm screw for 1x M4x40mm CSK screw 1x Latch shroud aluminium door... - Page 4 2. Prepare jamb and install strike F. Ensure the rubber If jamb preparation is required, gasket is attached to we recommend contacting a the mounting plate. locksmith for installation. G. Position the A. Install strike and dust box as mounting plate to provided in box.
- Page 5 4. Set bolt orientation For the Schlage Ascent Smart Deadbolt to learn the E. Secure the battery cover. orientation of the door a mandatory reset must be performed. A. Door must be open for the following steps B. While the bolt...
- Page 6 PIN codes 2. Ensure Bluetooth is enabled on your phone, tap the keypad of your Schlage Ascent smart The Schlage Ascent allows you to store up to deadbolt to activate it. 150 PIN codes - either custom, permanent, recurring or scheduled.
- Page 7 Auto locking user, select History. This provides Sarah The Schlage Ascent smart deadbolt default is set information on your users, Rachel with a 5 second auto lock, this can be changed in timing, or any attempts of adding...
-
Page 8: Manual Programming
Fingerprint access IMPORTANT: The Schlage Ascent smart deadbolt allows you to Note for homeowner store up to 150 fingerprints. Manual factory reset To set up your fingerprint access, select Grant Access, Add Fingerprint, ensure you name your If your lock was installed by someone other than fingerprint and complete set up. -
Page 9: Hardware Specifications
Manual lock operation Manual lock operation Follow this simple chart if you are manually programming your lock. Follow this simple chart if you are manually programming your lock. Further lock functions are available using the Schlage Breeze app, refer to pages 5-7 for more information. Further lock functions are available using the Schlage Breeze app, refer to pages 5-7 for more information. - Page 10 Schlage Ascent smart Tamper alert The Schlage Ascent smart deadbolt allows for four deadbolt functions attempts to correctly input your code, on the fifth incorrect entry the lock alarm will sound. The alarm sounds for 30 seconds, during this time you cannot Refer to the manual lock operation on page 8 continue to enter PIN codes.
-
Page 11: Warranty Conditions
Warranty conditions Schlage Wi-Fi Bridge (BZ100) The Schlage Ascent provides a 2 year mechanical Empower your Schlage Ascent smart deadbolt with and electronic warranty. Wi-Fi capability. The Schlage Wi-Fi Bridge (BZ100) pairs to your Schlage Ascent smart deadbolt, to Our goods come with guarantees that cannot be provide you with a real-time connection through your excluded under the local consumer law. - Page 12 For more information visit schlage.co.nz/ascent Australia New Zealand 1800 098 094 0800 477 869 info.au@allegion.com nzinfo@allegion.com www.allegion.com.au www.allegion.co.nz © 2024 Allegion...
