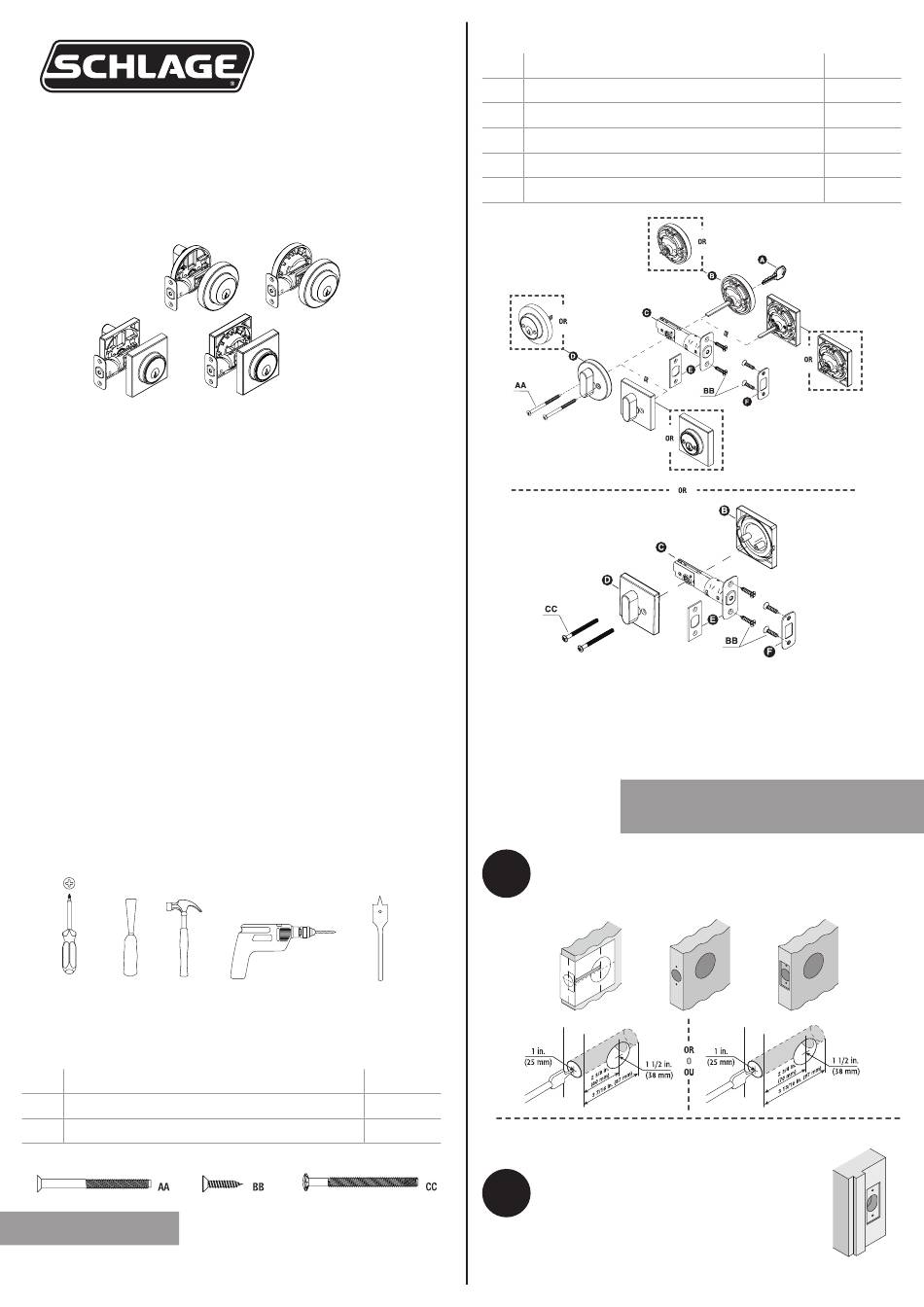

Allegion Schlage DEADBOLT Installation Instructions

SCHLAGE DEADBOLT
INSTALLATION INTRUCTIONS

1. SAFETY INFORMATION

Read the precautions and instructions in this manual before
installing and using this lock. Save this manual for future reference.
WARNING If the door needs to be drilled, be familiar with how to use
your drill safely and understand all the door preparation steps before
proceeding.
NOTE To ensure a long lasting finish, remove the locks, or do not install
the locks, prior to painting your door. Periodically clean locks with mild
soap and a soft cloth. Do not use abrasives or harsh chemicals and
avoid sharp or scratching objects.

2. TOOLS REQUIRED / HARDWARE INCLUDED

Part Description
AA Mounting Screws
BB Latch/Strike Plate Screws
CC Mounting Screws
NOTE Not to scale.
Part Description
A Key
B Exterior Assembly
C Deadbolt Latch
D Interior Assembly
E Faceplate
F Strike Plate

3. DOOR PREPARATION

Using the template over the page, mark the door, drill holes,
3.1
and chisel out a mortice. Drill from both sides to avoid wood
splitting.
25mm
Quantity
2
4
2
Prepare the door jamb - using the strike plate
as a pattern, drill the latch and screw holes, and
3.2
chisel out a mortice until the strike plate fits flush.
To assure proper lock function, the holes in the
door jamb must be drilled 28mm deep.
NOTE If your door already has holes,
skip to step 4 for installation
Quantity
2
1
1
1
1
1
