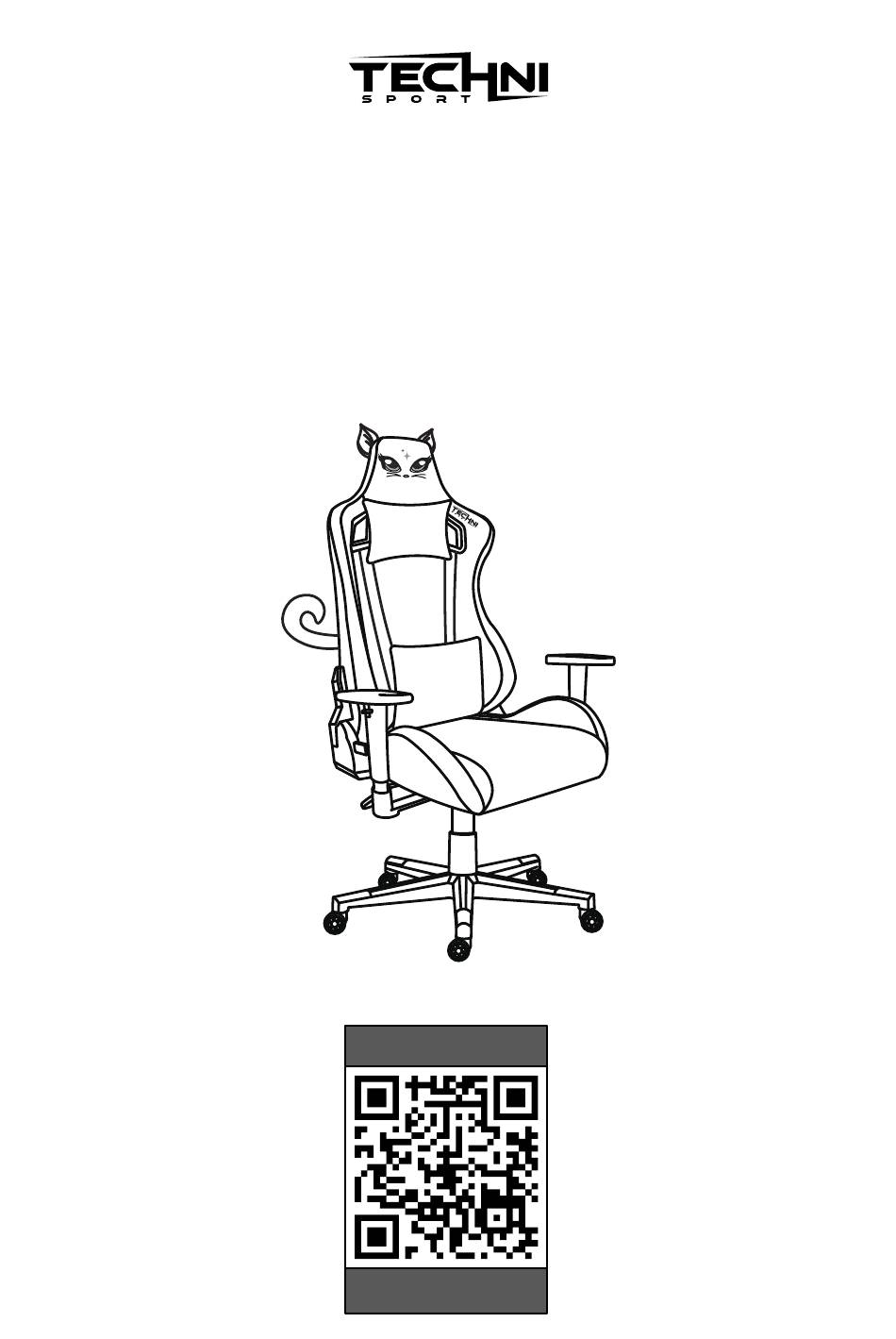

- Page 1 CAT GAMING CHAIR MODEL RTA-TS82C ASSEMBLY INSTRUCTIONS REV.ZK-1-7575-0923 Thank you for purchasing our product VIDEO Scan QR to view the general assembly video...
-
Page 2: Main Parts List
RTA-TS82C For Support, assembly questions Replacement Parts for International Do a quick inventory & Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. - Page 3 RTA-TS82C BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step.
-
Page 4: Assembly Steps
RTA-TS82C ASSEMBLY STEPS STEP 1 Flip the seat B and place the felt gaskets Q over the innnermost holes on the Hardware center and the back of the frame as shown. Then place the mechanism D over the gaskets, but make sure the tension knob M8x20 faces towards the front of the seat. - Page 5 RTA-TS82C STEP 4 STEP 5 Assemble the backrest A to the metal Hardware brackets on the seat B with screws M, Join the base parts to the seat making O-rings O and washers P, with O in the sure the tip of the lift cylinder E enters middle.
-
Page 6: Weight Limit
RTA-TS82C CHAIR'S FUNCTIONS To raise or lower the chair’s height, pull UP the lever that is under the seat on the right side. The chair goes down while sitting on it, or up if you lift your body. The chair also tilts by pulling OUT the same lever to unlock, but please note that unlike regular chairs, gaming chairs have their balance centered farther back, so the chair feels harder to tilt. - Page 7 Gaming Chair Internal Metal Frame*: LIFETIME WARRANTY RTA Products, LLC has warranted the Techni Sport products to the original purchaser who acquired a new product from RTA Products or its authorized re-sellers of the product against defects in material or workmanship.
