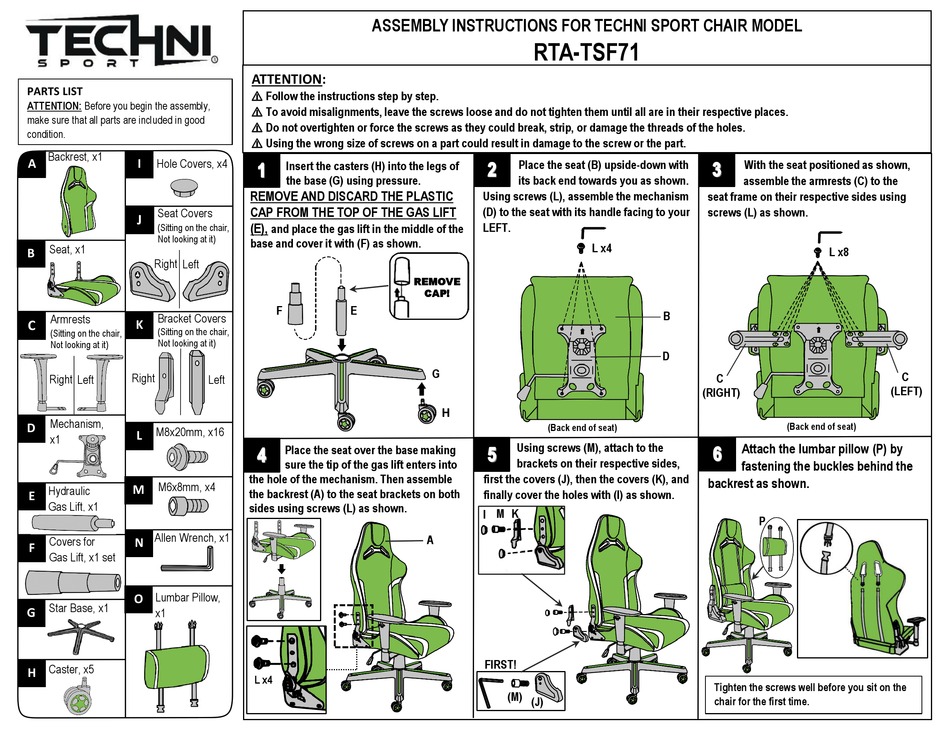

Techni Sport CHAIR RTA-TSF71 Assembly Instructions

PARTS LIST
ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Backrest, x1
Hole Covers, x4
A I
Seat Covers
J
(Sitting on the chair,
Not looking at it)
Seat, x1
B
Right Left
Bracket Covers
Armrests
C K
(Sitting on the chair,
(Sitting on the chair,
Not looking at it)
Not looking at it)
Right
Right Left
Mechanism,
D
M8x20mm, x16
L
x1
M6x8mm, x4
Hydraulic M
E
Gas Lift, x1
Allen Wrench, x1
Covers for
N
F
Gas Lift, x1 set
Lumbar Pillow,
O
Star Base, x1
x1
G
Caster, x5
H
ASSEMBLY INSTRUCTIONS FOR TECHNI SPORT CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
Insert the casters (H) into the legs of
the base (G) using pressure.
REMOVE AND DISCARD THE PLASTIC
CAP FROM THE TOP OF THE GAS LIFT
(E),
and place the gas lift in the middle of the
base and cover it with (F) as shown.
F E
Left
Place the seat over the base making
sure the tip of the gas lift enters into
the hole of the mechanism. Then assemble
the backrest (A) to the seat brackets on both
sides using screws (L) as shown.
L x4
RTA-TSF71
Place the seat (B) upside-down with
its back end towards you as shown.
Using screws (L), assemble the mechanism
(D) to the seat with its handle facing to your
LEFT.
L x4
REMOVE
CAP!
G
H
(Back end of seat)
Using screws (M), attach to the
brackets on their respective sides,
first the covers (J), then the covers (K), and
finally cover the holes with (I) as shown.
M K
I
A
FIRST!
(M)
(J)
With the seat positioned as shown,
assemble the armrests (C) to the
seat frame on their respective sides using
screws (L) as shown.
L x8
B
D
C
(RIGHT)
(Back end of seat)
Attach the lumbar pillow (P) by
fastening the buckles behind the
backrest as shown.
P
Tighten the screws well before you sit on the
chair for the first time.
C
(LEFT)
