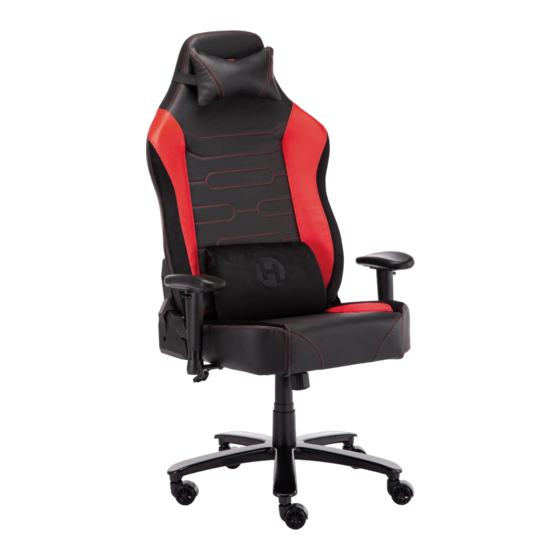

Techni Sport RTA-TSXXL2 Assembly Instructions

PARTS LIST

ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Bracket Covers
Backrest, x1
A I
Right
Seat, x1
B
M8x20mm, x10
J
(Mechanism, armrests)
Armrests
C
M8x25mm, x4
K
(Sitting on the chair,
Not looking at it)
(Backrest)
Right Left
M5x8mm, x2
L
Mechanism,
(Brackets)
D
x1
O" Rings, x14
M
Hydraulic
Washers, x14
E N
Gas Lift, x1
Covers for
Hole covers, x4
F O
Gas Lift, x1 set
Star Base, x1
Allen Wrench, x1
G P
Caster, x5
Lumbar Pillow,
H
Q
x1
ASSEMBLY INSTRUCTIONS FOR TECHNI SPORT CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
Insert the casters (H) into the legs of
the base (G) using pressure.
REMOVE AND DISCARD THE PLASTIC
CAP FROM THE TOP OF THE GAS LIFT
Left
(E),
and place the gas lift in the middle of the
base and cover it with (F) as shown.
E
F
H
Assemble the backrest (A) to the
metal brackets on both sides of the
seat (B) using screws (K), o 'rings (M) and
washers (N) as shown.
J M N
P K M N
RTA-TSXXL2
Place the seat (B) upside-down with
its back end towards you as shown.
Using screws (J), O 'rings (M) and washers
(N), assemble the mechanism (D) to the
seat with its handle facing to your LEFT.
P
REMOVE
CAP!
G
(Back end of seat)
Attach the covers (K) to the brackets
on their respective sides using
screws (L), then cover the holes with (O) as
shown.
A
P L
K (RIGHT)
Assemble the armrests (C) to the
seat (B) on their respective sides using
screws (J), O' rings (M) and washers (N).
IMPORTANT: Assemble the arm brackets
pushed all the way in!
I
J
M
(4 sets of
M
N
hardware)
N
B
D
C
(RIGHT)
Place the seat over the base
making sure the tip of the gas lift
enters in the hole of the mechanism,
and place the lumbar pillow (Q).
K (LEFT)
P
L
L
O
O
Tighten the screws well before you sit on the
chair for the first time.
J
P
(6 sets of
M
hardware)
N
B
C
(LEFT)
Q
