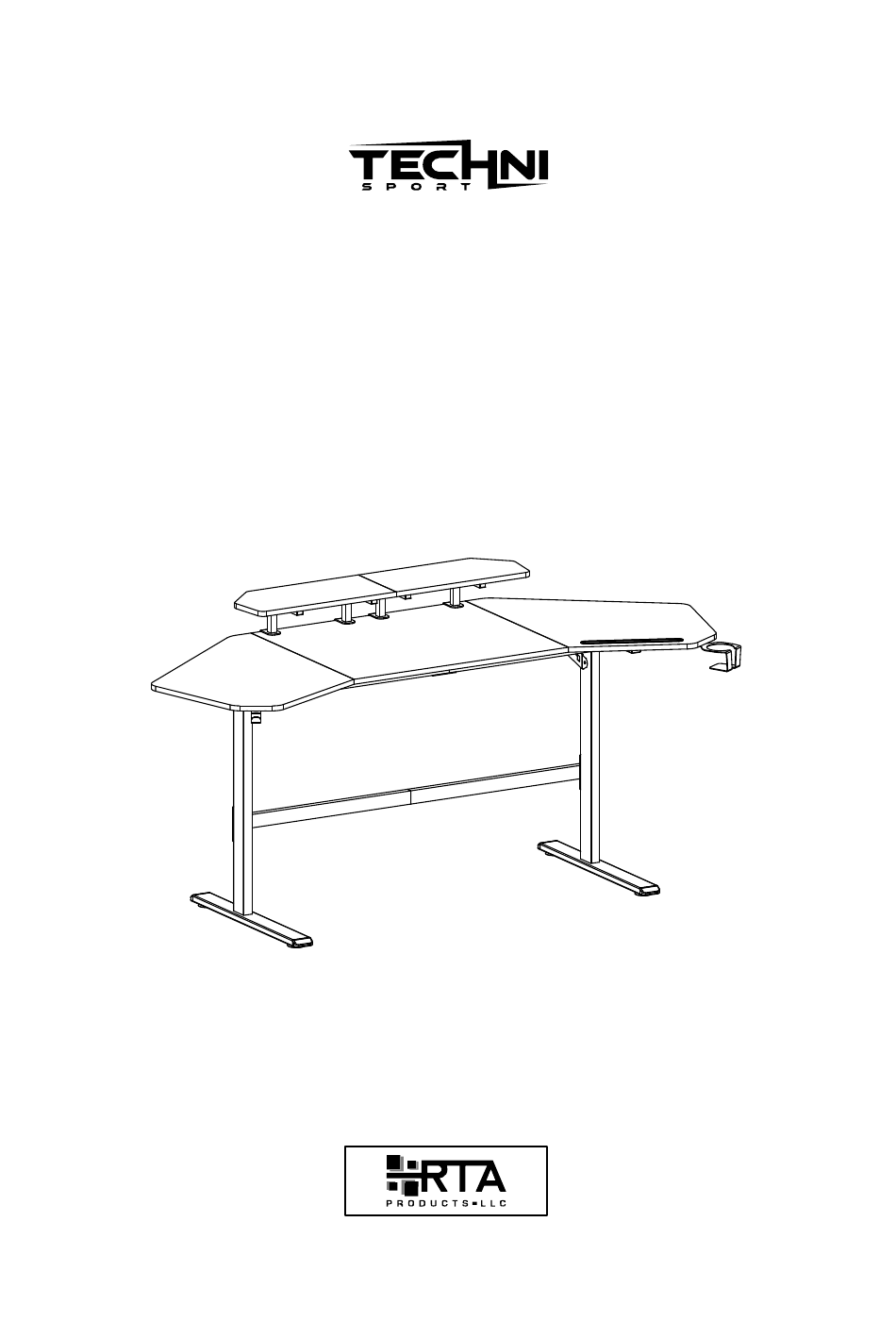

- Page 1 UNIVERSE GAMING DESK MODEL RTA-TS91D ASSEMBLY INSTRUCTIONS REV.1-OL-8213-0824 Thank you for purchasing our product!
-
Page 2: Main Parts List
RTA-TS91D For Support, assembly questions Replacement Parts for International Do a quick inventory & Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. -
Page 3: Hardware List
RTA-TS91D MAIN PARTS LIST (Continue) Metal plates Accesory Cup holder Shelf support Shelf protector hook Screw knob Left shelf Right shelf Accesory holder MAIN PARTS LAYOUT (For reference) ( B a c k ) ( R i g h t ) - Page 4 RTA-TS91D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step.
-
Page 5: Assembly Steps
RTA-TS91D ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS OR TABLECLOTHS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 FIRST: Install #11 to the legs #1 and #2. This step requires of 2 persons Hardware M6x12 Tools (included) THEN: Join the beams #5 and #6 with screws B as shown. - Page 6 RTA-TS91D STEP 2 FIRST: Join the beams #3 This step requires of and #4 with screws B. 2 persons Hardware M6x12 Tools (included) ( B a c k ) ( F r THEN: Assemble #3 to the leg #1 and #4 to the leg #2 with screws B.
- Page 7 RTA-TS91D STEP 3 This step FIRST: Join the beams #7 requires of and #8 with screws B. 2 persons Hardware M6x15 M6x12 ( B a Tools (included) c k ) ( F r THEN: Assemble #7 to leg #1, and #8 to leg #2 with screws A.
- Page 8 RTA-TS91D STEP 5 This step IMPORTANT: Do not tighten the screws untill the next step! requires of 2 persons Assemble the tabletops #12, #13 and #14 Hardware to the legs #1, #2 and to the beams #3, #4, #5 and #6 respectively with screws D.
- Page 9 RTA-TS91D STEP 7 Hardware FIRST: Install the phone/tablet holder #23 to the tabletop #14. THEN: Use screws A to install the accesories #16 and #17 on M6x15 the tabletops #12 and #14 according to your preference. Tools (included) STEP 8...
- Page 10 RTA-TS91D STEP 8 Use the screw knobs #20 to install the shelves #21 and #22 according to your preference. Below are our suggestions, with the unit viewed from behind. IMPORTANT! Make sure the protectors #19 are installed!
-
Page 11: Care And Maintenance
RTA-TS91D P.10 P.10 WARNINGS Not paying attention to the following warnings could result in injuries. WEIGHT LIMITS - DO NOT EXCEED 11 Lbs 44 Lbs (5 Kg) (20 Kg) 44 Lbs 3.25 Lbs (20 Kg) (1.5 Kg) 3.25 Lbs 110 Lbs 3.25 Lbs... - Page 12 TECHNI SPORT WARRANTY GAMING DESKS: LIMITED 5-YEAR WARRANTY RTA Products, LLC has warranted the Techni Sport products to the original purchaser who acquired a new product from RTA Products or its authorized re-sellers of the product against defects in material or workmanship.
