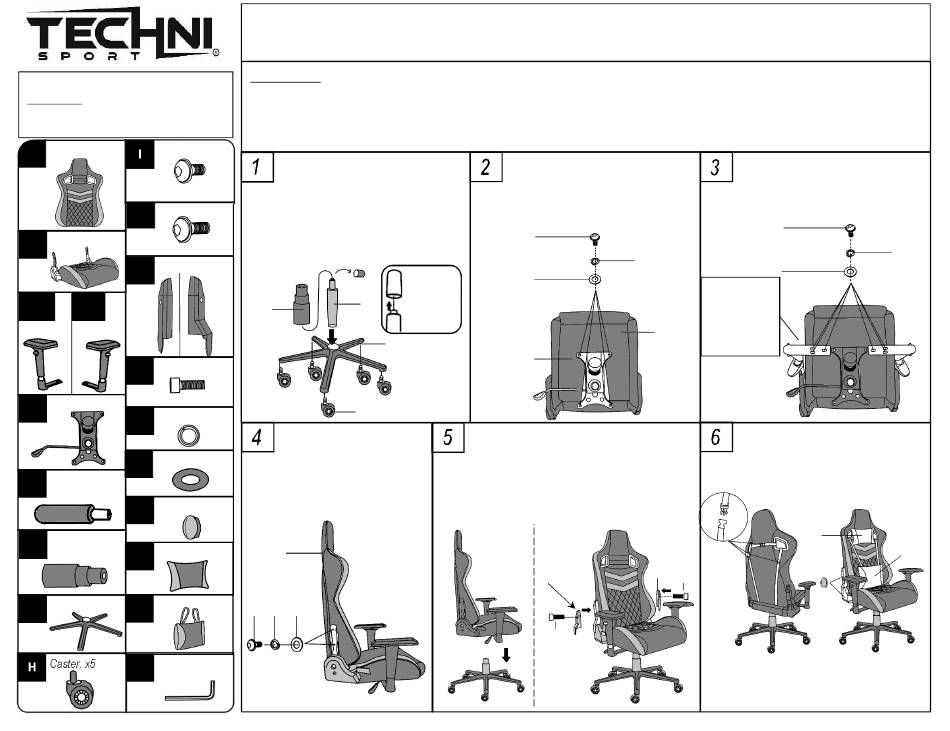

PARTS LIST
ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Backrest, x1
M8x20mm, x4
A
I
(Mechanism)
M8x25mm, x10
J
Seat, x1
B
(Backrest, armrests)
Bracket covers,
K
CR
CL
RIGHT
Right Arm Left Arm
M6x12mm, x2
L
(Brackets Covers)
Mechanism,
D
O' ring, x14
x1
M
Washers, x14
N
Hydraulic
E
Gas Lift, x1
Hole Covers, x4
O
Covers for
F
Neck Pillow, x1
Gas Lift, x1 set
P
Lumbar Pillow,
Star Base, x1
G
Q
x1
Allen Wrench,
Caster, x5
H
R
x1
ASSEMBLY INSTRUCTIONS FOR TECHNI SPORT CHAIR MODEL
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
FIRST REMOVE AND DISCARD THE
PLASTIC CAP FROM THE TOP OF THE
GAS LIFT (E).
Insert the casters (H) into the legs of the
base (G) using pressure, then place
the gas lift (E) in the middle of the base,
and cover it with (F) as shown.
E
LEFT
F
G
H
Using screws (J), O 'rings
(M) and washers (N),
assemble the backrest (A)
to both metal brackets on
the seat (B) as shown.
A
J
M
N
RTA-TS83
Place the seat (B) upside-down with
its front end away from you as shown.
Using screws (I), O' rings (M) and washers
(N), assemble the mechanism (D) to the seat
with its handle on your LEFT.
I (x4)
N (x4)
REMOVE
PLASTIC
CAP!
D
Place the top over the base, making sure
the tip of the gas lift enters into the hole of
the mechanism.
Then attach both bracket covers (K) to the
brackets using screws (L).
K (RIGHT)
L
With the seat positioned as shown,
assemble the armrests (C) to the seat
frame on their respective sides using
screws (K), O' rings (L) and washers (M).
J (x6)
M (x4)
N (x6)
(If the seat is
positioned as
(Front end of seat)
shown, the
RIGHT armrest
B
Will go on the
LEFT)
C
(RIGHT)
Cover the bracket holes with (O).
Attach the lumbar pillow (Q) first
and the neck pillow (P) as shown,
and fasten the buckles on the back.
K (LEFT)
L
Make sure that all screws are tightened
before you sit on the chair for the first
time.
M (x6)
C
(LEFT)
P
Q
O
Advertisement
Table of Contents
Related Manuals for Techni Sport RTA-TS83
Summary of Contents for Techni Sport RTA-TS83
- Page 1 ASSEMBLY INSTRUCTIONS FOR TECHNI SPORT CHAIR MODEL RTA-TS83 ATTENTION: PARTS LIST ⚠ Follow the instructions step by step. ATTENTION: Before you begin the assembly, ⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
- Page 2 CHAIR’S FUNCTIONS: (1) To raise or lower the chair’s height, pull UP the lever that is under the seat. The chair goes down while sitting on it, or up if you lift your body. (2) To make the chair tilt, pull the same lever OUT horizontally to unlock this function, and IN to lock again. (3) To adjust the tension for the tilting function, turn the mechanism’s knob in either direction to apply more or less tension.
