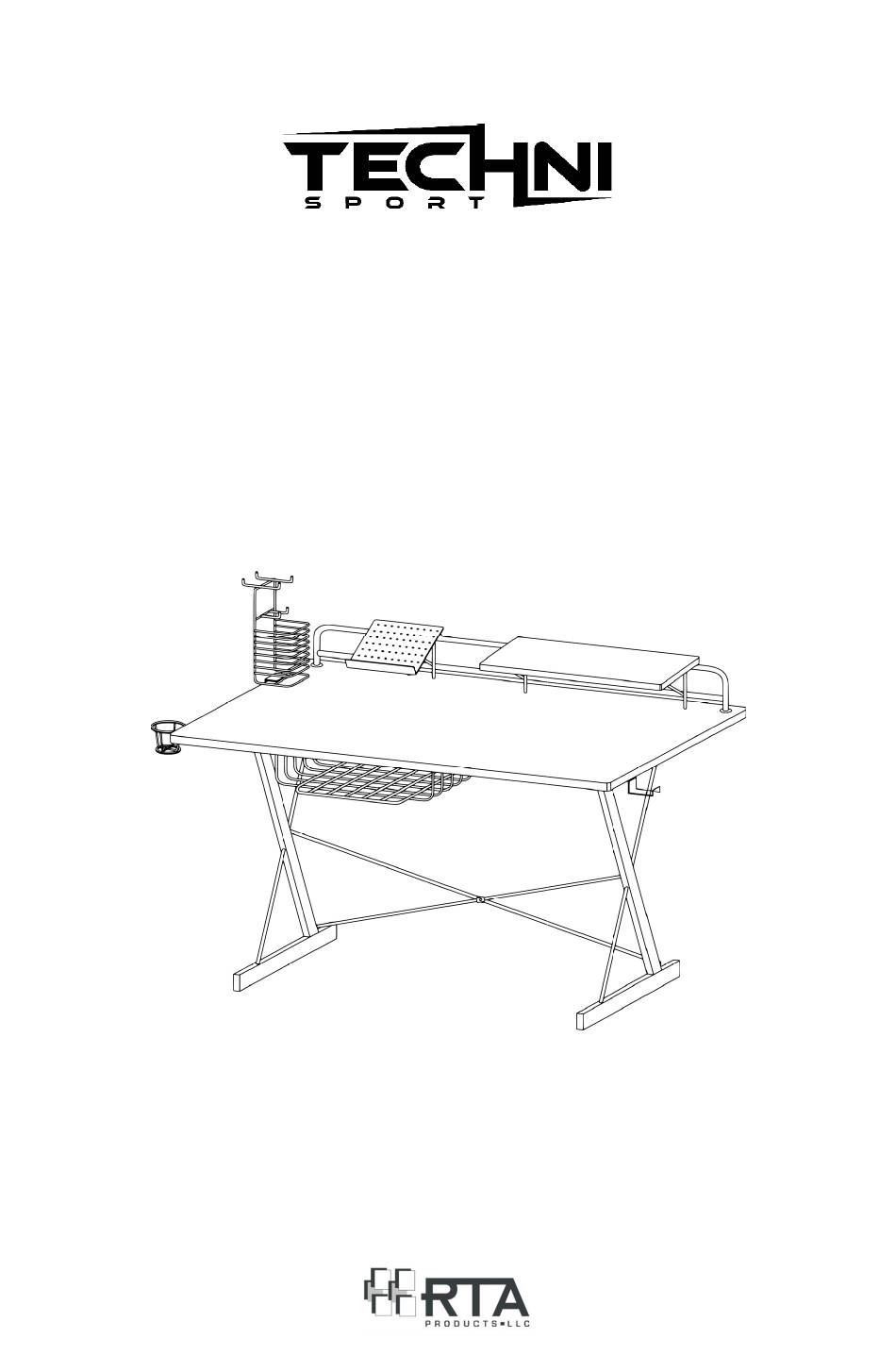

- Page 1 MODEL RTA-TS200 ASSEMBLY INSTRUCTIONS Thank you for purchasing our product. REV.082021-0...
- Page 2 RTA-TS200 • Please read carefully the assembly instructions before the installation. • Do not discard this manual or any of the packaging material until the unit has been completely assembled. • Might require two people.
- Page 3 RTA-TS200 MAIN PARTS LIST Tabletop Legs Horizontal bar Cross bars Monitor shelf Top support bar Shelf support Shelf support Tablet holder Headphones CD Holder Cup holder Wire basket holder LIST OF HARDWARE, SCREWS AND FITTINGS PART ITEM PART ITEM M6x45 Ø6x12...
- Page 4 RTA-TS200 BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. ❼ ❶ To avoid Do a quick inventory misalignments, always to make sure the package leave the screws loose contains all the parts and and tighten them until...
-
Page 5: Assembly Steps
RTA-TS200 ASSEMBLY STEPS STEP 1 Insert the Glide studs G into the bottom holes of the Legs 2. Hardware: STEP 2 Assemble the Horizontal bar 3 in between the Legs 2 with screws A, making sure the center hole on the bar runs UP-DOWN. - Page 6 RTA-TS200 STEP 3 • From behind the frame, assemble the Cross bars 4 to the Legs 2 with screws C. Hardware: • Secure both Cross bars 4 in the center with screw C and Nut cap D. M6x12 The nut cap D...
- Page 7 RTA-TS200 STEP 5 • Assemble the Top support bar 5 to the Tabletop 1 with screws B and washers F from underneath. Hardware: • Assemble the Wire basket 12 to the Tabletop 1 with screws E from underneath. M6x30 ST4x12 Ø6x18...
- Page 8 RTA-TS200 STEP 7 You can now install the Monitor panels and the Tablet holder according to your preference: • Only one monitor shelf with the tablet holder on either side. • Both monitor shelves side to side. STEP 8 • Assemble the Cup holder 10 and the Headphones holder 11 to the...
- Page 9 RTA-TS200 ALL DONE! Give yourself a nice pat on the back. You did a great job!
- Page 10 RTA-TS200 CARE, MAINTENANCE AND SAFETY WARNINGS: 12.10 Lbs. 12.10 Lbs. WEIGHT LIMITS WEIGHT LIMITS (5.5 Kg) (5.5 Kg) 6.6 Lbs. (3 Kg) 6.6 Lbs. 132 Lbs. (3 Kg) (60 Kg) 6.6 Lbs. 12.10 Lbs. (3 Kg) (5.5 Kg) • Do not exceed the indicated weight limits.
- Page 11 Gaming Desk: 5-YEAR WARRANTY Gaming Chair Metal Frame: LIFETIME WARRANTY RTA Products, LLC has warranted the Techni Sport products to the original purchaser who acquired a new product from RTA Products or its authorized re-sellers of the product against defects in material or workmanship.
- Page 12 P.11 RTA-TS200 P.11 FOR SEVERAL HELP OPTIONS INCLUDING REPLACEMENT PARTS ORDERS _________________________________________________________________ WWW.TECHNISPORTUSA.COM VISIT: CLICK ON SUPPORT TAB Scan QR Code to order replacement parts SUPPORT@TECHNISPORTUSA.COM OR EMAIL US:...
