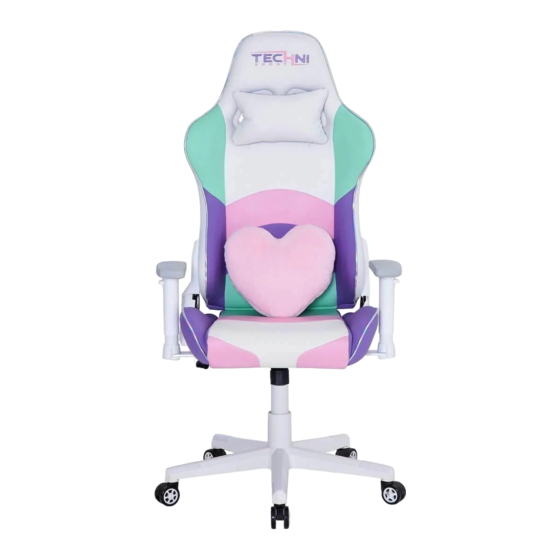

Techni Sport RTA-TS42 Assembly Instructions

PARTS LIST
ATTENTION: Before you begin the assembly,
make sure that all parts are included in good
condition.
Backrest, x1
M8x20mm
A I
+ felt gasket, x4
(Mechanism)
M8x25mm, x12
J
Seat, x1
B
(Armrest, Backrest)
Bracket Covers
K
Armrests
C
Right
(Sitting on the chair,
Not looking at it)
Right Left
M6x12mm, x2
L
(Brackets Covers)
Mechanism,
O' ring, x16
D M
x1
Washers, x16
N
Hydraulic
E
Gas Lift, x1
Hole covers, x2
O
Covers for
F
Gas Lift, x1 set
Neck Pillow, x1
P
Star Base, x1
G
Lumbar Pillow,
Q
x1
Caster, x5
H
Allen Wrench, x1
R
ATTENTION:
⚠ Follow the instructions step by step.
⚠ To avoid misalignments, leave the screws loose and do not tighten them until all are in their respective places.
⚠ Do not overtighten or force the screws as they could break, strip, or damage the threads of the holes.
⚠ Using the wrong size of screws on a part could result in damage to the screw or the part.
Insert the casters (H) into the legs of
the base (G) using pressure.
REMOVE AND DISCARD THE PLASTIC
CAP FROM THE TOP OF THE GAS LIFT
(E),
and place the gas lift in the middle of the
base and cover it with (F) as shown.
Left
Assemble the backrest (A) to the
metal brackets on both sides of the
seat (B) using screws (J), o 'rings (M) and
washers (N) as shown.
PAY ATTENTION TO
THE POSITIONS OF
(M) AND (N)
ASSEMBLY INSTRUCTIONS FOR TECHNI SPORT CHAIR MODEL
RTA-TS42
Peel off and place the felt gaskets (I)
on the holes of the seat (B), then
using screws (I), O' rings (M) and washers
(N), assemble the mechanism (D) to the
seat with its handle facing to your LEFT.
PAY ATTENTION TO
THE POSITIONS OF
(M) AND (N)
1 st : Put felt Gaskets
2 nd : Put mechanism
3 : Screw mechanism
rd
B
D
Attach the covers (K) to the brackets
on their respective sides using
screws (L) and cover the holes with (O).
Then place the seat over the base, making
sure the tip of the gas lift enters into the
hole of the mechanism
RIGHT
A
With the seat positioned as shown,
assemble the armrests (C) to the
seat frame on their respective sides using
screws (J), O' rings (M) and washers (N).
PAY ATTENTION TO
THE POSITIONS OF
(4 sets of
(M) AND (N)
screws)
C
(RIGHT)
(End of the seat)
Attach the head pillow (P) by
fastening the buckles behind the
backrest, and place the lumbar pillow
(Q) as shown.
.
LEFT
Tighten the screws well before you sit on the
chair for the first time.
(8 sets of screws)
C
(LEFT)
P
