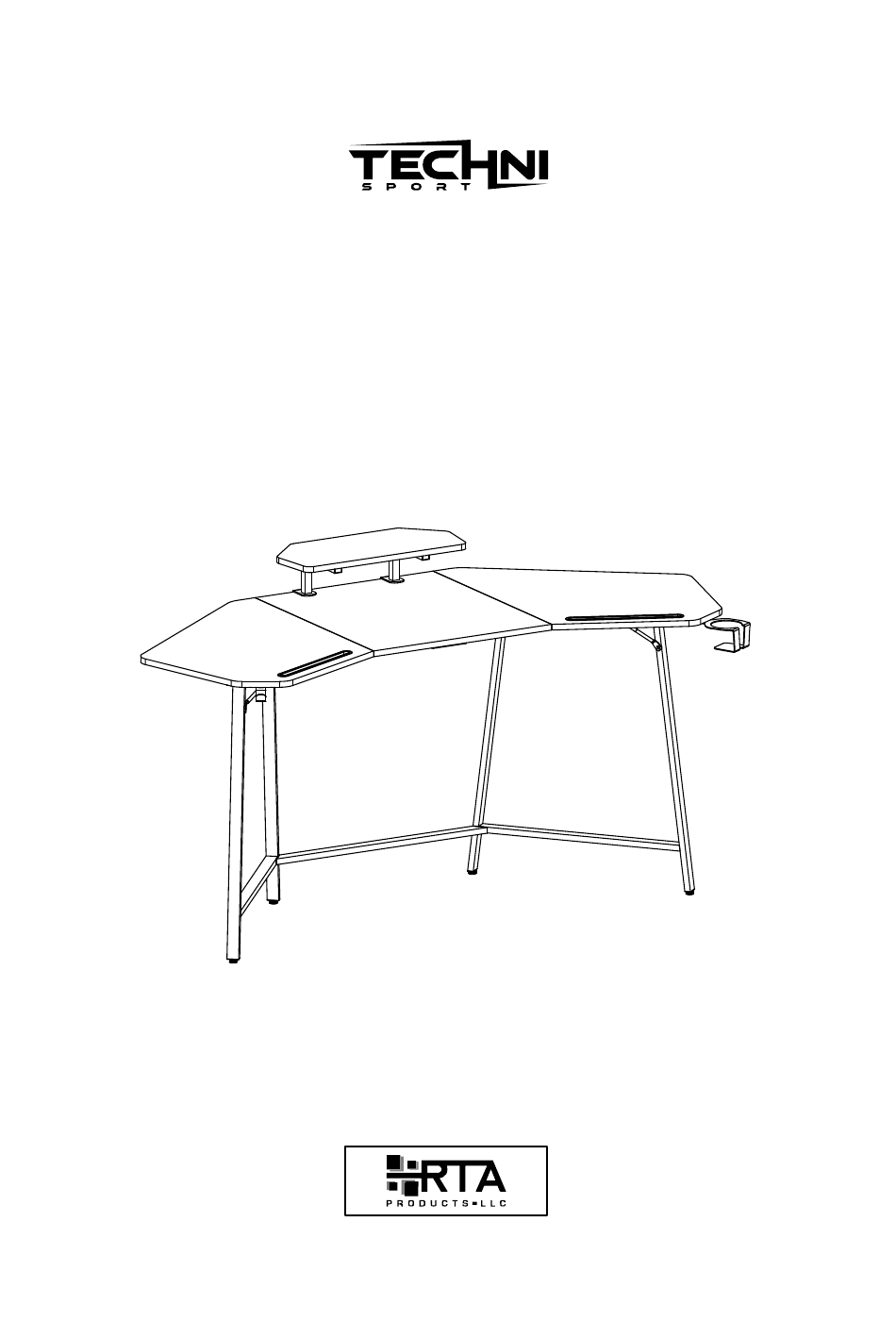

- Page 1 ECLIPSE GAMING DESK MODEL RTA-TS98D ASSEMBLY INSTRUCTIONS REV.1-OL-8213-0824 Thank you for purchasing our product!
-
Page 2: Main Parts List
RTA-TS98D For Support, assembly questions Replacement Parts for International Do a quick inventory & Replacement Parts within the Customers & AK-HI-PR orders: of all the parts and 48 Contiguous United States: RTA Products will replace the part free of hardware listed below. -
Page 3: Hardware List
RTA-TS98D MAIN PARTS LIST (Continue) Metal plate Accesory hook Cup holder Shelf support Shelf Screw knob Accesory holder Shelf protector MAIN PARTS LAYOUT (For reference) ( B a c k ) ( R i g h t ) ( F r o n t ) - Page 4 RTA-TS98D BEFORE YOU START THE ASSEMBLY, PLEASE READ THE FOLLOWING TIPS AND WARNINGS. • Do not discard this manual or any of the packaging material until the unit is completely assembled. • Please read the assembly instructions throughly and follow step by step.
-
Page 5: Assembly Steps
RTA-TS98D ASSEMBLY STEPS WE RECOMMEND TO PLACE THE PIECES OVER BLANKETS OR TABLECLOTHS TO PROTECT THEIR FINISH DURING ASSEMBLY. STEP 1 FIRST: Install the glides This step requires of #6 to the legs #1 and #2. 2 persons Hardware M6x35... - Page 6 RTA-TS98D STEP 2 FIRST: Join the beams #3 and #4 This step requires of with "Z" bracket #5 and screws B. 2 persons Hardware M6x12 Tools (included) THEN: Use screws B, and from the inside, assemble the beams #3, #4 and #7...
- Page 7 RTA-TS98D STEP 3 Hardware FIRST: Secure the beams #3, #4 and #7 to the legs #1 and #2 with screws E and nuts F. M6x12 M6x40 M6 Nut Tools (included) E from outside, F from inside. THEN: Use screws B to assemble the support #9 to leg #1 and beam #3;...
- Page 8 RTA-TS98D STEP 4 IMPORTANT: Do not tighten the screws untill the next step! This step requires of 2 persons Assemble the tabletops #11, #12 and #13 Hardware to the legs #1, #2 and to the beams #3, #4, and #7 respectively with screws C.
- Page 9 RTA-TS98D STEP 6 Hardware FIRST: Install the phone/tablet holder #21 to the tabletops #11 and #13. M6x15 THEN: Use screws A to install the accesories #16 and #17 Tools (included) on the tabletops #12 and #14 according to your preference.
- Page 10 RTA-TS98D STEP 8 Use the screw knobs #19 to install the shelf #20 according to your preference. Below are our suggestions. IMPORTANT! Make sure the protectors #18 are installed!
-
Page 11: Care And Maintenance
RTA-TS98D P.10 P.10 WARNINGS Not paying attention to the following warnings could result in injuries. WEIGHT LIMITS - DO NOT EXCEED 11 Lbs 44 Lbs (5 Kg) (20 Kg) 44 Lbs 3.25 Lbs (20 Kg) (1.5 Kg) 3.25 Lbs 110 Lbs 3.25 Lbs... - Page 12 TECHNI SPORT WARRANTY GAMING DESKS: LIMITED 5-YEAR WARRANTY RTA Products, LLC has warranted the Techni Sport products to the original purchaser who acquired a new product from RTA Products or its authorized re-sellers of the product against defects in material or workmanship.
