Thinkcar TK689 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

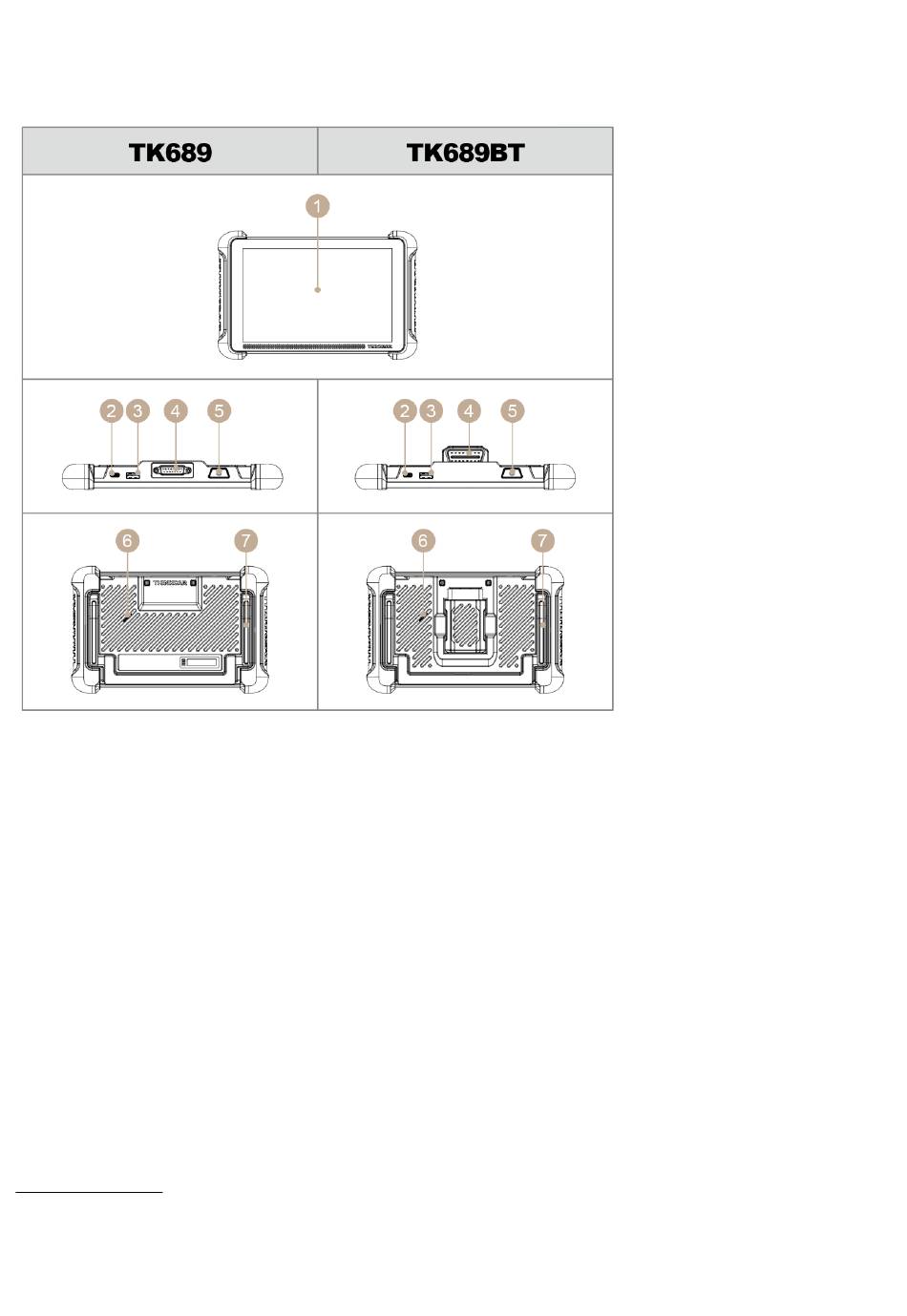

1 Product Descriptions
1. Touch Screen: 8 inches touch screen.
Charging Port: Type-C charging port for charger or data transmission.
2.
USB Expansion Slot: For connecting USB expansion module.
3.
Diagnostic Cable Interface(KT689):Connect to car OBD port for diagnosis;
4.
Diagnostic Connector (KT689BT): Bluetooth diagnostic connector, connect to car OBD port
for diagnosis.
5. Power/Screen Lock Button: Long press for 3 seconds to turn on or off, single press to
lock/unlock the screen.
Loudspeaker:Indicate product connection status and important information.
6.
Bracket:Place the product on the desktop.
7.
2 Technical Specifications
Host Computer
Display: 8" display
Resolution: 1280*800 pixel
Quick Start Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the TK689 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thinkcar TK689

Summary of Contents for Thinkcar TK689

  • Page 1 Quick Start Manual 1 Product Descriptions 1. Touch Screen: 8 inches touch screen. Charging Port: Type-C charging port for charger or data transmission. USB Expansion Slot: For connecting USB expansion module. Diagnostic Cable Interface(KT689):Connect to car OBD port for diagnosis; Diagnostic Connector (KT689BT): Bluetooth diagnostic connector, connect to car OBD port for diagnosis.

  • Page 2: How To Use

    Working Environment: 0~50℃ (32~122℉ ) Storage Environment: -20~60℃ (-4~140℉ ) Model TK689: Working voltage:9~18V Working current: ≤1.2A Model TK689BT: Working voltage:5V Working current: 2.5A Thinkscan VCI Model TK689BT: Working Voltage: 9~18V Workding Current: ≤130mA Working Environment: 0~50℃ (32~122℉ ) Storage Environment: -20~60℃ (-4~140℉ )
  • Page 3 3.1 Turn on the device After pressing the power button, image will be shown on the screen as follow. 3.2 Language Setting Select the tool language from the languages displayed on the page, If you do not select a language, the default language is English. Please read and agree to the privacy agreement. Click the Start button to start using this product.
  • Page 4 3.3 Start Using When you enter the product homepage, you can use the product functions. Our products provide online customer service functions. If you have any product-related questions, you can get technical support through online customer service. We have a professional team to provide you with services.

  • Page 5: Function Descriptions

    3.4 Connect Wi-Fi（Recommend） For a better product experience, we recommend that you connect to Wi-Fi and check and update to the latest software version before you start using the product. If there is no Wi-Fi, you can connect to the mobile hotspot, but please note that some software has a large capacity, so please pay attention to the data consumption in a non-Wi-Fi environment to avoid additional data consumption and incurring fees.
  • Page 6 4.1.2 Diagnose The diagnose module supports manual vehicle selection. You can filter by vehicle region, brand, model, etc. Using this function requires you to have a full understanding of the diagnostic vehicle information. If you do not know enough about the vehicle information, it is recommended that you use Autosearch to automatically identify the vehicle information and perform diagnosis.
  • Page 7 the connection is successful, you will enter the OBD diagnostic page. 4.1.4 Report Historical vehicle diagnostic reports can be found here. 4.1.5 History The diagnosed vehicle records will be displayed here. Click to view the diagnosis records. If you diagnose a vehicle that has been diagnosed in the history records again, click the arrow in the history records to quickly diagnose the vehicle again.
  • Page 8 4.2 Maintenance The reset function in car maintenance refers to the ability to reset certain maintenance indicators or parameters in a vehicle's onboard computer system. This feature allows users to clear or restart specific maintenance-related notifications or tracking systems. 4.3 Upgrade This module supports you to download and update vehicle model software and maintenance software.
  • Page 9 4.4 More This module provides a variety of functions, including diagnostic history, query function, system settings, etc. The following is a brief explanation of each function to help you quickly understand and use the product. 4.4.1 Settings System settings for the product host. After the initial setting is completed, the user can modify or add related information here.
  • Page 10 4.4.8 Remote Assistance Provide service support through the use of remote assistance software. Different regions can choose different remote assistance software according to your needs.Please note that before using the remote assistance software, please communicate with the staff through the online customer service to arrange the assistance time so that the technical staff can provide assistance.
  • Page 11 Please be patient. After successfully completing the upgrade, the tool will automatically restart and enter the main interface. Q: How to add function modules? A: THINKCAR TECH INC offers 5 other functional modules. You can buy them on the official website or contact dealer.

  • Page 12: Warranty Terms

    The compensation for dashboard damage caused by the defect of this equipment is limited to repair or replacement. THINKCAR does not bear any indirect and incidental losses. THINKCAR will judge the nature of the equipment damage according to its prescribed inspection methods.

This manual is also suitable for:

Tk689bt
