Page 6: Table Of Contents
THINKCAR www.thinkcar.com Content 1. Quick Start Manual ......................1 1.1 Initial Use ............................. 1 1.1.1 Turn on the Machine ........................1 1.1.2 Language Setting ........................1 1.1.3 Connect Wi-Fi ..........................1 1.1.4 Choose Time Zone ........................2 1.1.5 User Agreement .......................... 2 1.1.6 Create an Account ........................ - Page 7 THINKCAR www.thinkcar.com 3.4.15 Sunroof Initialization ....................... 18 3.4.16 EGR Adaption ......................... 18 3.4.17 ODO Reset ..........................18 3.4.18 Airbag Reset ........................... 18 3.4.19 Transport Mode ........................18 3.4.20 A/F Reset ..........................19 3.4.21 Stop/Start Reset ........................19 3.4.22 NOx Sensor Reset ........................19 3.4.23 AdBlue Reset (Diesel Engine Exhaust Gas Filter) ..............
-
Page 8: Quick Start Manual
THINKCAR www.thinkcar.com 1. Quick Start Manual 1.1 Initial Use The following settings should be made when you initially use the tool. 1.1.1 Turn on the Machine After pressing the power button, images will be shown on the screen as follows. -
Page 9: Choose Time Zone
THINKCAR www.thinkcar.com 1.1.4 Choose Time Zone Choose the time zone of the current location, then the system will automatically cofi gure the time according to the time zone you chose. 1.1.5 User Agreement Please read all the terms and conditions of the user agreement carefully. Choose “Agree all the above terms”, and click the “Agree”... -
Page 10: Vci Activation
THINKCAR www.thinkcar.com 1.1.7 VCI Activation Enter the connector serial number and activation code to activate and bind the diagnostic connector. If you have not activated it, you can also click "Settings" on the main interface to enter and select "Activate" to operate. -
Page 11: Function Menu
THINKCAR www.thinkcar.com 1.3 Function Menu Power on the main units, the system will automatically enter into the function menu selection interface: It mainly includes the following features: • The main unit and diagnostic connector support Bluetooth communication. • Supports powerful intelligent VIN recognition technology, which is convenient, fast and effi cient. -
Page 12: Battery
THINKCAR www.thinkcar.com 1.5 Battery • It is normal that the main unit won’t turn on when charging because the battery has not been used for a long time or it is exhausted. Please turn on the main unit again after charging the battery for a while. -
Page 13: Introduction

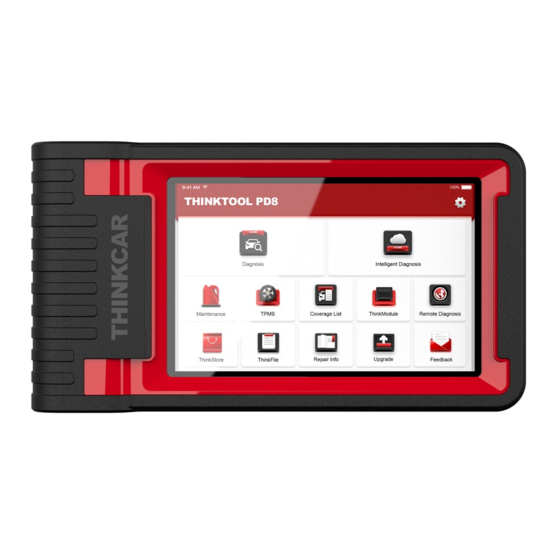

2.1 Product Profi le THINKTOOL is a new generation modular intelligent diagnostic equipment based on Android 10 system developed by THINKCAR. Featured with our unique modular design, THINKTOOL can be widely applied various scenarios. The functional modules for THINKTOOL includes printer, videoscope, worklight, battery tester, thermal imager, oscilloscope, module dock, wireless TPMS diagnostic module.THINKTOOL... -
Page 14: Function Modules
THINKCAR www.thinkcar.com 2.3 Function Modules THINKTOOL support below optional function modules, list as below: Name Image Description Super long custom coil pipeline design, fl exible bending with durable materials, suitable for a variety of complex environments. Multiple uses with 3 kinds of special connectors (Hook, side view mirror, magnet). -
Page 15: Begin To Use
THINKCAR www.thinkcar.com 3. Begin to Use Diagnostic function, coverage more than 100 car brands, support intelligent diagnosis and traditional diagnosis, including OBD II full-function diagnosis, full-system diagnosis including: read fault code, clear fault code, read real-time data stream, special function, actuation test. A diagnosis report can be generated after the diagnosis. - Page 16 THINKCAR www.thinkcar.com 2) Select Diagnostic method: After the connection is successful, the screen will enter the test item selection interface. A.Health Report: It enables you to quickly access all the electronic control units of the vehicle and generate a detailed report about vehicle health. ( This function varies from vehicle to vehicle.) Click "Health Report", the system will start scanning the ECUs to see if there is fault code and and displays...
-
Page 17: System Selection
THINKCAR www.thinkcar.com B.System Scan: automatically scan all systems of the vehicle C.System Selection: manually choose the automotive electronic control system. 3.2.2 System Selection Choose the system: Click “ECM” (e.g.), and the screen will enter selection interface 3.2.3 Function Selection Click the function to be tested... - Page 18 THINKCAR www.thinkcar.com a) Version Information As shown in the picture, click “Version Information” to read the current version information of the car ECU. b) Read Fault Code This function is to read the DTC in the ECU memory, helping maintenance personnel to quickly identify the cause of the vehicle breakdown.
- Page 19 THINKCAR www.thinkcar.com On-screen Buttons: Displays the parameters of the selected data stream in waveform. On the data stream waveform page, you can do the following: [Combine]: Displayed in graph merge status for data comparison. [Value]: Displayed the parameters in values and shown in list format.
- Page 20 THINKCAR www.thinkcar.com Tap to display the current (single) data stream in waveform graph. On the waveform graph page, you can do the following: [Min/Max]: Tap to defi ne the maximum / minimum value. Once the value goes beyond the specifi ed value, the system will alarm.
-
Page 21: Quick Check And Printing
THINKCAR www.thinkcar.com [Report] Tap to save the value of current data stream. To record diagnostic data, for you to replay and review. Tap “Stop” button to end reading. [Record] The saved fi le follows the naming rule: It begins with vehicle type, and then the product S/N and ends with record starting time. -
Page 22: Maintenance
THINKCAR www.thinkcar.com 3.4 Maintenance THINKTOOL supports matching, coding, programming of most vehicles’ programable modules, and most commonly used maintenance and reset functions, namely, Oil Reset, Elec. Throttle Adaption, IMMO Service, Injector Coding, Break-pad Reset, Steering Angle Reset, ABS Bleeding, AFS Reset,... -
Page 23: Steering Angle Reset
THINKCAR www.thinkcar.com d) After replacing or disassembling the intake port, the controlling of the idle speed by the coordination between the electronic control unit and the throttle body is aff ected. e) Although the characteristics of the idle throttle potentiometer have not changed, the intake volume has changed and the idle control characteristics have changed at the same throttle openings. -
Page 24: Dpf Regeneration
THINKCAR www.thinkcar.com 3.4.7 DPF Regeneration DPF regeneration is used to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the fi lter performance. -
Page 25: Suspension Matching
THINKCAR www.thinkcar.com 3.4.12 Suspension Matching This function can adjust the height of the body. When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration. -
Page 26: A/F Reset
THINKCAR www.thinkcar.com In order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc. At this time, the transport mode needs to be deactivated to restore the vehicle to normal. -
Page 27: Tpms Diagnostics
Activation: to activate the sensor's ID, wheel pressure, sensor frequency, tire temperature and battery status. b) Programming: to program sensor data to a blank Thinkcar sensor, so as to replace a sensor that is in low battery and does not function properly. There are three sensor programming methods available: automatic, manual, and via activation replication. -
Page 28: Diagnostic Feedback
If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to Thinkcar Team. When we receive your feedback, we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience. Tap Diagnostic Feedback, the below pop-up message will appear: Tap OK to enter the vehicle diagnostic feedback selection screen. -
Page 29: Coverage List
3.10 ThinkStore ThinkStore, released by THINKCAR TECH, in which you can download all diagnostic software and purchase hardware products. In the store, vehicle diagnostic and maintenance software can be bought. Each diagnostic software has a detailed function introduction. All hardware products can also be... -
Page 30: Software Update
THINKCAR www.thinkcar.com 4.Software Update 4.1 Upgrade all Software In order to let you enjoy better functions and upgrade services, we recommend you make software upgrades irregular. When there is a newer software version, the system will remind you to upgrade. -
Page 31: Activate Vci
THINKCAR www.thinkcar.com 5.2 Activate VCI This item lets you activate a new VCI connectors or get help. Input the Serial Number and Activation Code, and then tap “Activate” to activate it. Once the VCI connector activated, the serial number of it will be displayed in the list. -
Page 32: Customer Management
Q: Can I use the same type of charger to charge the tablet? A: No, please use original charger. Our company is not responsible for any damage and economic loss caused by using charger, which is not provided by THINKCAR. Q: How to save power? A: Please turn off... - Page 33 The equipment isn’t connected Please make sure the network is connected Check the user name and password The user name or password is Contact THINKCAR after-sales service or regional sales incorrect to retrieve the user name and password Server problem...
- Page 34 Too low voltage of the vehicle battery • Replace the vehicle battery if it is damaged. Damage of the VCI dongle Contact THINKCAR after-sales service to get support Q: The tablet cannot establish a connection with the VCI dongle. Passible reasons Solution •...
- Page 35 ON. Q: What to do if the connector is missing A: Contact THINKCAR after-sales service or regional sales. Q: The downloaded diagnostic software is inconsistent with the serial number A: There are several connectors registered under the equipment account, and the serial number of right connector has not been selected.
- Page 36 The compensation for dashboard damage caused by the defect of this equipment is limited to repair or replacement. THINKCAR does not bear any indirect and incidental losses. THINKCAR will judge the nature of the equipment damage according to its prescribed inspection methods.
