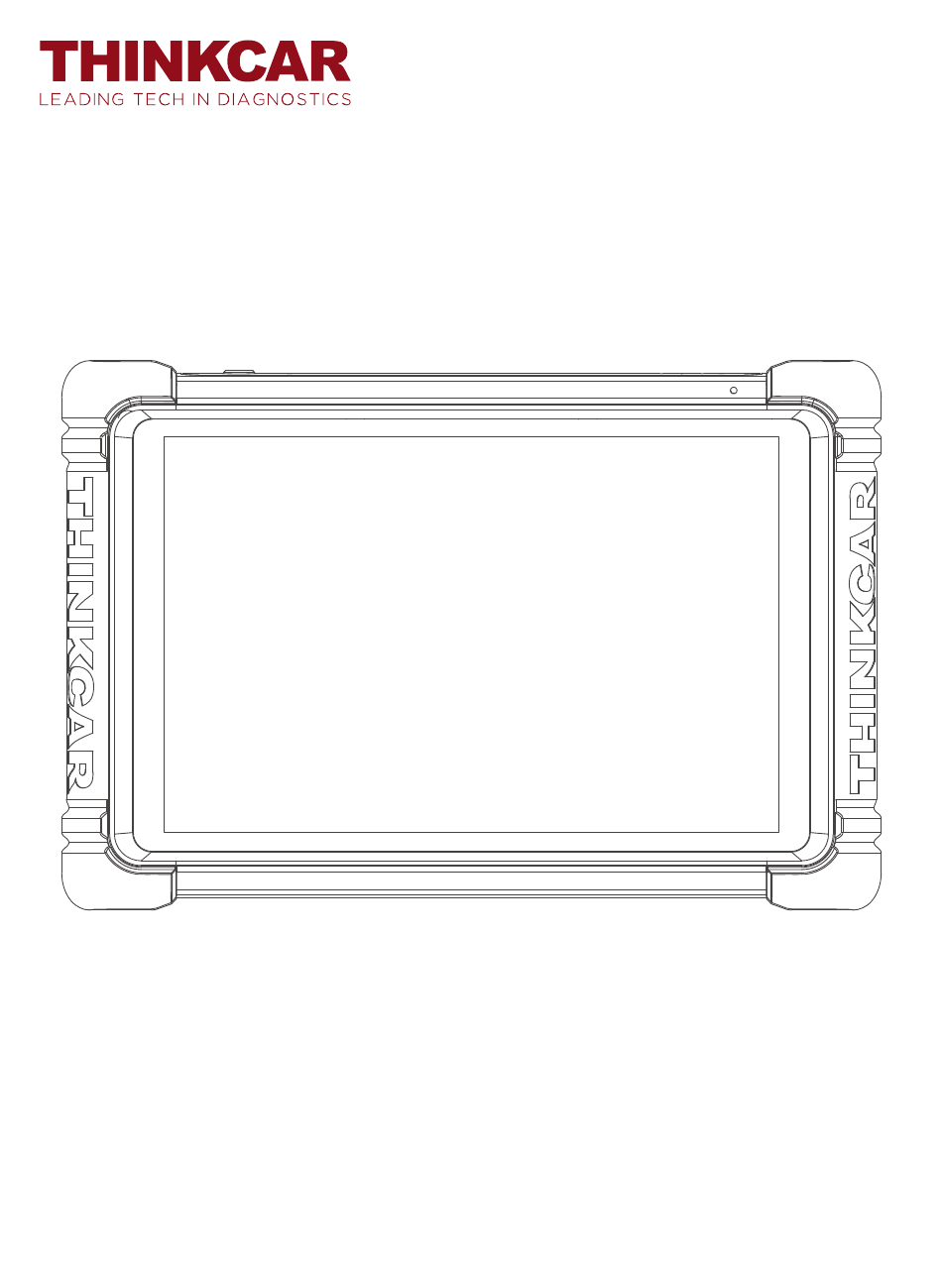

  • Page 1 THINKTOOL 195 Quick Start Guide...

  • Page 2: Initial Use

    Quick Start Manual 1.1 Initial Use The following settings should be made when you initially use the device. 1.1.1 Turn on the Machine After pressing the power button, images will be shown on the screen as follows. 1.1.2 Language Setting Select the target language from the languages displayed on the interface.

  • Page 3: Activate Device

    1.3 Activate device Before starting the diagnosis, please click [Activate] to activate the device. If you don’t want to activate immediately, you can also click [Trial Mode] for ten trial opportunities. 1.4 Charging Follow the steps below to charge the device: Use the charger to connect the device and the power socket to charge.

  • Page 4: Product Profile

    Below are five locations for the most common OBDII ports. Introduction 2.1 Product Profile THINKTOOL 195 is the new generation of modular high-end intelligent diagnostic equipment. Besides the powerful local vehicle diagnosis functions, real-time remote diagnosis is also enabled.
  • Page 5 ① Power Key ⑥ Speaker ⑦ Backplane: Remove the backplane of the Long press to power on or off tablet, and install function modules on Click to sleep or wake the device ② USB Port: Reserved for add-on modules the back-end. ⑧...

  • Page 6: Manual Diagnosis

    "OK" and enter the diagnosis menu. Diagnosis menus may be different for different car models. B. Select diagnosis method: After successfully communicating with the vehicle, it will enter the diagnosis function selection interface. THINKTOOL 195 supports the system topology map function.
  • Page 7 5) Actuation Test: Used to test whether the execution components in the electronic control system can work normally. THINKLINK THINKCAR remote diagnostic service can provide functions such as remote diagnosis, remote programming, remote anti-theft configuration, remote ADAS calibration, remote troubleshooting and answering. The platform is based on a safe, stable and efficient cloud...
  • Page 8 completed locally. Currently, it supports CAN, CAN FD, DOIP, J2534 and other protocols, covering many mainstream car series such as Mercedes-Benz, BMW, Volkswagen Audi, and General Motors. 4.1 Remote diagnostic process a. Connect your device to your vehicle b. Publish order requirements 1) Get vehicle information You can use [Intelligent Diagnosis] or [Manual selection] to obtain vehicle information.

  • Page 9: Maintenance

    Cover more than 98% car models in the market. Maintenance The current maintenance functions supported by THINKTOOL 195 are: Oil Reset, Elec.Throttle Adaption, Steering Angle Reset, Battery Matching, ABS Bleeding, Break-pad Reset, DPF Regeneration, Gear Learning, IMMO Service, Injector Coding, TPMS Reset,...

  • Page 10: Other Function

    The static calibration function of ADAS defaults to the disable status. it need to be used with ADAS calibration tool of THINKCAR for activation. It is mainly for calibrating driver assistance systems such as cameras and radars, e.g. front-facing cameras for lanes departure warning systems, radar sensors for ACC (self-adaptive Cruise control) or cameras for self-adaptive headlights.
  • Page 11 If you encounter an unresolved problem or diagnostic software bug during diagnosis, you can revert the most recent 20 test records to THINKCAR Team. When we receive your feedback. we will analyze and troubleshoot it in a timely manner, to improve the quality of our products and user experience.

  • Page 12: Warranty Terms

    This warranty applies only to users and distributors who purchase THINKCAR products through normal procedures. Within one year from the date of delivery, THINKCAR warrants its electronic products for damages caused by defects in materials or workmanship. Damages to the equipment or components because of abuse, unauthorized modification, use for non-designed purposes, operation in a manner not specified in the instructions, etc.
