  • Page 1 THINKOBD 500...
  • Page 2: Safety Precautions And Warnings

    Safety Precautions and Warnings To avoid personal injury, property loss, or accidental damage to the product, read all of the information in this section before using the product. Data and Software Protection Do not delete unknown files or change the names of files or directories created by others, otherwise the device software may not run.
  • Page 3: Fcc Requirement

    FCC Requirement Changes or modifications not expressly approved by the party responsible for compliance could void the user’ s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may...

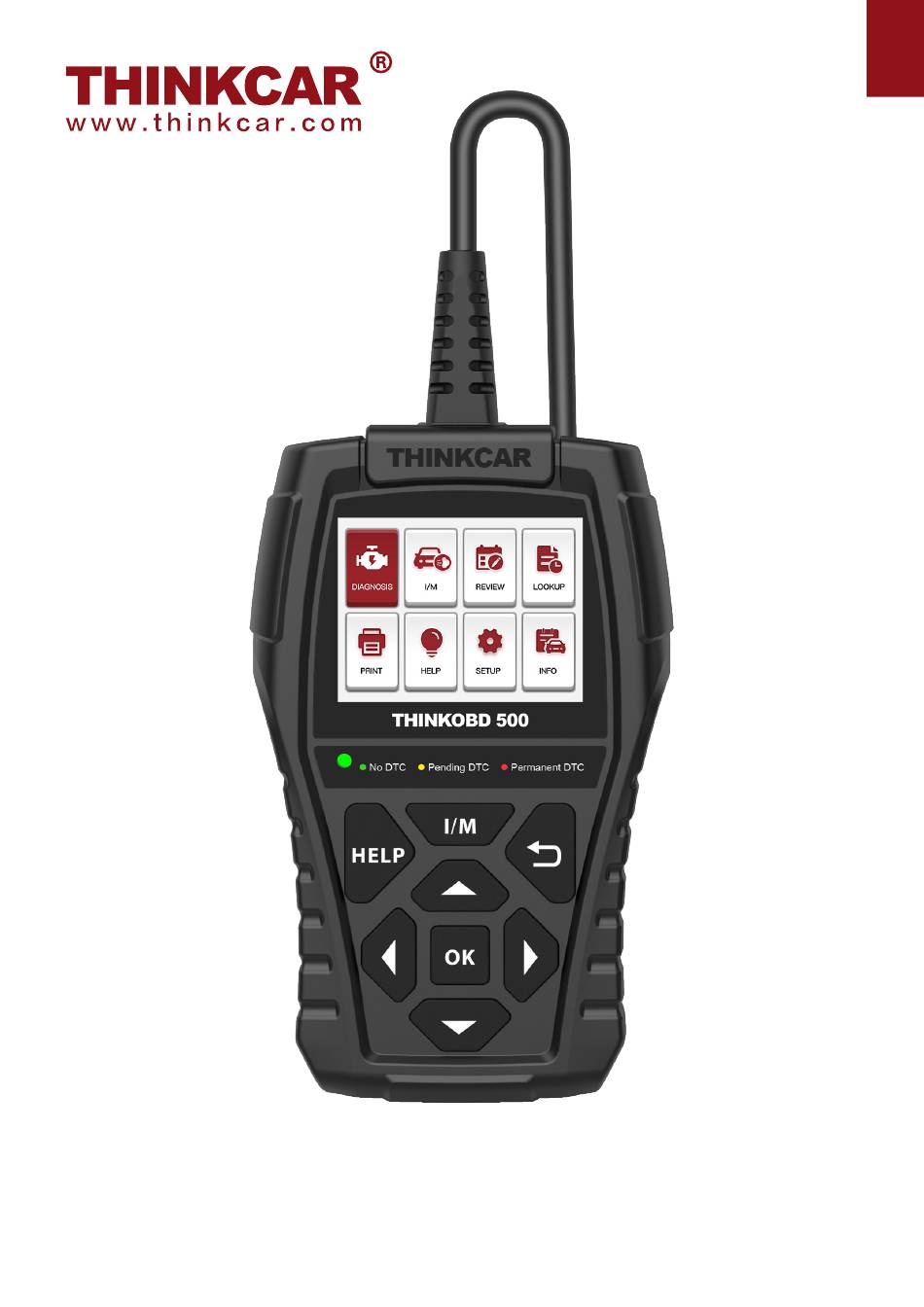

  • Page 4 1. Product Descriptions (1) Diagnostic Cable: Standard OBDII diagnostic cable (2) LCD Display: 2.8 inch display (240*320) (3) Code severity alert: Three status indicators (4) I/M Button: Quickly enter "I/M READINESS" to view the data flow (5) Help: About OBD instructions, about data flow instructions, about printing instructions, about exhaust ready instructions (6) Up, down, left and right keys: used to select interactive functions (7) Return key: Return to upper function...
  • Page 5: Technical Specifications

    Technical Specifications 2.8 inch display Display: Working Environment: 0 to 50℃ (32 to 122℉ ) Storage Environment: -20 to 60℃ (-4 to 140℉ ) Power Supply: 9-18V vehicle power Supported Protocols: ISO9141, KWP2000 (ISO 14230), J1850PWM,J1850VPM and CAN OBDII protocol Function Description 1.
  • Page 6 2.2 Application Overview When the code reader boots up, the Home screen opens. This screen shows all applications loaded on the unit. Following applications are preloaded into the code reader: ● Diagnostics : leads to OBDII screens for all 9 generic OBD system tests. ●...
  • Page 7 1.1.2 Select "READ CODE" and click "OK" to select vehicle type to view DTC diagnostic data.
  • Page 8 1.2 Select "ERASE CODES" to clear the fault code Note: Erase Codes menu lets you to clear all current and stored DTCs from the control module. Also it erases all temporary ECU information, including freeze frame. So make sure that the selected system are completely checked and serviced by technicians and no vital information will be lost before clearing codes.
  • Page 9 NOTE : ● To review I/M Readiness status, make sure that the ignition key is switched to ON with the engine off. ● Not all monitors are supported by all vehicles. I/M Readiness is a useful function used to check if all monitors are OK or N/A. The vehicle’s computer performs tests on the emission system during normal driving conditions.
  • Page 10 Freeze Frame menu displays freeze frame data, a snapshot of critical vehicle operating conditions automatically recorded by the on-board computer at the time of the DTC set. It is a good function to help determine what caused the fault. Select "O2 SENSOR TEST" and click "OK" to view O2 Sensor data Stream. OBD II regulations require certain vehicles monitor and test oxygen (O2) sensors to isolate fuel and emissions related faults.
  • Page 11 Tips: Different car models have detected different numbers of oxygen sensors, please check according to the required sensors. 1.7 Select "ON-BOARD MONITORING" and click "OK" to view On-Board Monitor data streams. The On-Board Monitor Test function is useful after servicing or after clearing a vehicle ECU’s memory.
  • Page 12 NOTE : ● Some manufacturers do not allow tools to control vehicle systems. ● The manufacturer sets the criteria to automatically stop test. Refer to appropriate vehicle service manual before using this function. Select” I/M READINESS” and click "OK" to view the I/M data flow. To retrieve I/M Readiness Status data by one-click I/M readiness key: 1.
  • Page 13 4. Select "DTC LOOKUP" and click "OK" to query fault code analysis...
  • Page 14: Diagnostic Trouble Codes (Dtcs)

    3. Diagnostic Trouble Codes (DTCs) OBD II Diagnostic Trouble Codes are codes that are stored by the on-board computer diagnostic system in response to a problem found in the vehicle. These codes identify a particular problem area and is intended to provide you with a guide as to where a fault might be occurring within a vehicle.
  • Page 15 5. Select "Print" and click "OK" to enter the "UPLOAD RECORD" interface to view the prompts, click "Help and I/M" to view the prompts and operate whether to delete the information. The first step is to open the browser and enter the URL: https://mythinkcar.com/ to enter the official website, click Download.
  • Page 16 5.3 Click the OK button on the OBD500 device to enter the APP homepage, click PRINT to select the report you want to print, and select the print button to complete.
  • Page 17 6. Select "Help" and click "OK". You will find the device OBD function and system instructions.
  • Page 18 7. Select "Settings" and click "OK" to set the native language, unit of measure, record mode and sound. 8.Select "info" and click "OK" to view local information 9. Update The tool can be updated via a USB cable. Note: Make sure that your computer has Internet connection. 1.1 Please log in to http://www.mythinkcar.com official website and find the "THINKOBD...
  • Page 19: Warranty Terms

    THINKCAR does not bear any indirect and incidental losses. THINKCAR will judge the nature of the equipment damage according to its prescribed inspection methods. No agents, employees or business representatives of THINKCAR are authorized to make any confirmation, notice or promise related to THINKCAR products.
