Puls FIEPOS FPT Series Manual

380-480 vac 26 v 500 w
Hide thumbs Also See for FIEPOS FPT Series:
Table of Contents

Advertisement

Quick Links

Download this manual

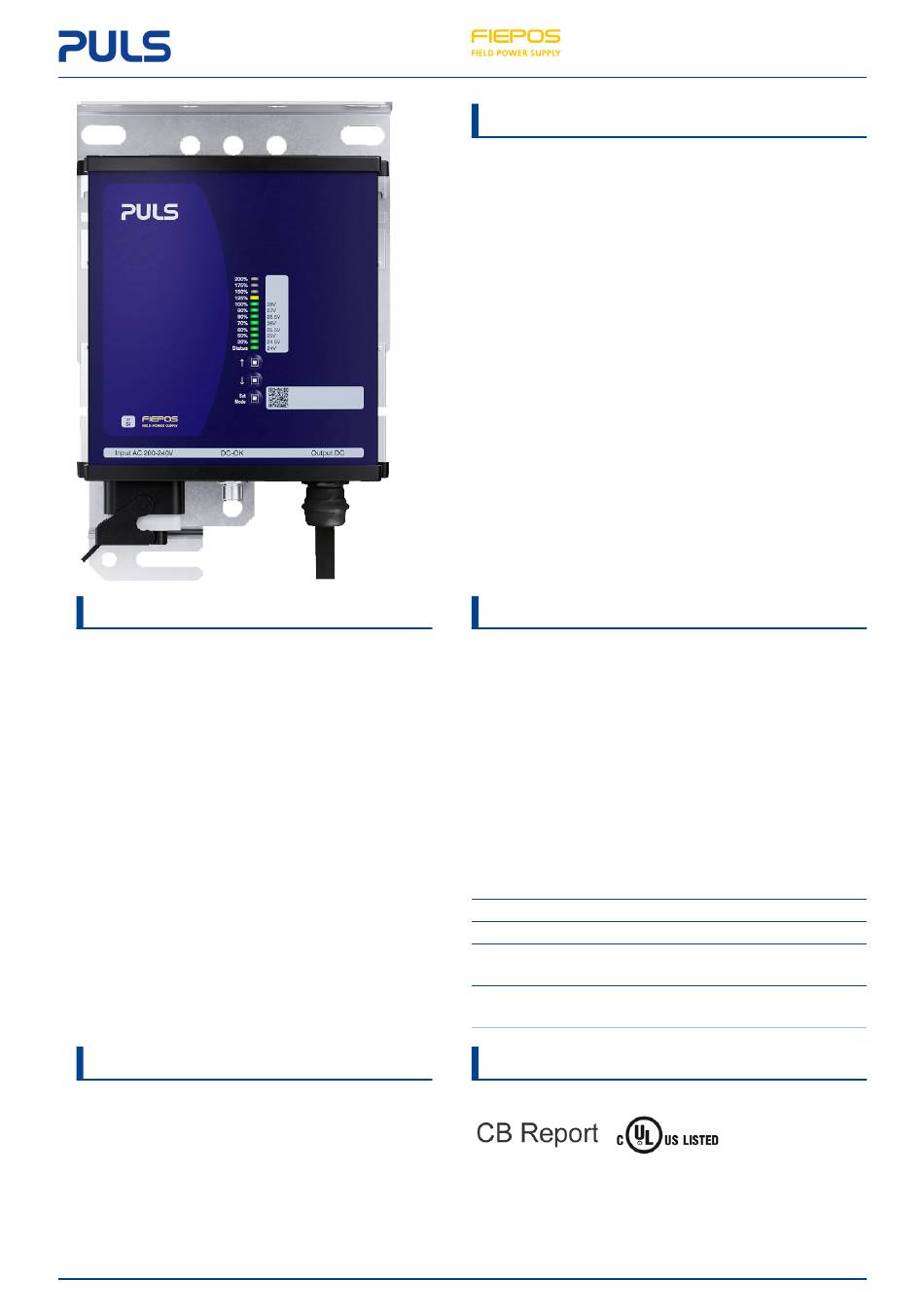

P
RODUCT DESCRIPTION
The FPT500 is an industrial grade power supply for
a 3-phase mains system that is incorporated into a
rugged wall-mount housing with an IP54 degree of
protection.
It provides 1 stabilised output that is galvanically
insulated from the input. The negative terminal of
the output is permanently connected to PE within the
unit.
The most outstanding features of the FPT series are
compact size, wide operating temperature range,
extremely low input inrush current and very high
efficiencies, which are achieved through various
design topologies. The large output capacitors can
absorb and store regenerative energy from braking
motors.
High immunity to transients and power surges as well
as low electromagnetic emissions and an international
approval package make the use in nearly every
application possible.
O
RDER NUMBERS
FPT500.241-006-113
 
Complementary units:
ZM.FPDRA-11
ZM.FPMBA-11
All parameters are specified at 24 V, 500 W, 3x 400 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted.
March 2025 / Rev. 1.1 DS-FPT500.241-006-113-en
Power supply
Input
Output
Han Q 4/2
ASi cable
DIN rail mounting kit
Mounting bracket
POWER SUPPLY
• IP54 degree of protection
• 3AC 380-480 V wide-range input
• Output connected to PE (PELV/ES1)
• 95.6 % full load and excellent partial load efficiencies
• Negligibly low input inrush current surge
• High immunity to transients and power surges
• Low electromagnetic emissions
• Large output capacitors
• DC-OK relay contact
• 3 year warranty
S
HORT-FORM DATA
Output voltage
Adjustment range
Output power
BonusPower
Short term, up to
Number of outputs 1
Input voltage AC
Power factor
AC Inrush current
Efficiency
Power Losses
Hold-up time
Temperature range -25 °C to +70 °C
Size (wxhxd)
Weight
M
AIN APPROVALS
For details and a complete approval list, see chapter 19.
IEC 62368-1
IEC 61010-2-201
www.pulspower.com
380-480 Vac 26 V 500 W
DC 26 V
nominal
24-28 V
factory setting 26 V
500 W
up to +55 °C ambient
350 W
up to +70 °C ambient
600 W
up to +45 °C ambient
1000 W / 5 s
up to +55 °C ambient
700 W / 5 s
up to +70 °C ambient
Derate linearly between +55 °C to
+70 °C
±15 %
3AC 380-480 V
0.94 / 0.95
at 3x 400 / 480 Vac
1.9 / 1.8 A
at 3x 400 / 480 Vac
peak
95.8 / 95.6 %
at 3x 400 / 480 Vac
22 / 23 W
at 3x 400 / 480 Vac
24 / 24 ms
at 3x 400 / 480 Vac
181x272x70 mm without connectors
1550 g
UL 61010
FPT500.241-006-113
1 / 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FIEPOS FPT Series and is the answer not in the manual?

Questions and answers

Related Manuals for Puls FIEPOS FPT Series

Summary of Contents for Puls FIEPOS FPT Series

  • Page 1 FPT500.241-006-113 POWER SUPPLY 380-480 Vac 26 V 500 W • IP54 degree of protection • 3AC 380-480 V wide-range input • Output connected to PE (PELV/ES1) • 95.6 % full load and excellent partial load efficiencies • Negligibly low input inrush current surge •...

  • Page 2: Table Of Contents

    FPT500.241-006-113 Index Intended Use............18 Dielectric Strength........... 19 Installation Instructions........... 19 Approved, Fulfilled or Tested Standards....20 AC Input..............20 Regulatory Product Compliance......20 DC Input..............21 Accessories..............21 Input Inrush Current..........21.1 DIN Rail Mounting Kit: ZM.FPDRA-11..21 Output............... 21.2 Mounting Bracket: ZM.FPMBA-11....
  • Page 3 FPT500.241-006-113 Nomenclature Detail Description 380-480 V 3-phase power supply 100-240 V 1-phase power supply 200-240 V 1-phase power supply 300 W power class 500 W power class 241 / 481 Standard power supply with output voltage 24 - 28 V / 48 - 52 V setting and LED bar 242 / 482 Basic power supply without voltage setting and LED bar.

  • Page 4: Intended Use

    FPT500.241-006-113 Intended Use This device is designed for indoor use and is intended for commcerial use, such as in industrial control, process control, monitoring and measurement equipment. Do not use this device in equipment where malfunction may cause severe personal injury or threaten human life. If this device is used in a manner outside of its specification, the protection provided by the device may be impaired.

  • Page 5: Ac Input

    FPT500.241-006-113 AC Input The device is suitable to be supplied from TN-, TT- or IT-mains networks. For more details, see chapter 2. An operation on only two legs of a three-phase system is possible with slightly different parameters, see chapter 22.4. AC input voltage rated range nom.

  • Page 6: Dc Input

    FPT500.241-006-113 DC Input Do not operate this power supply with DC input voltage. Input Inrush Current The power supply is equipped with an active inrush current limitation circuit, which limits the input inrush current after turn-on to an extremely low value. The inrush current is usually smaller than the steady-state input current. 3AC 400 V 3AC 480 V Inrush current...

  • Page 7: Output

    FPT500.241-006-113 Output The output provides a (PELV/ES1) rated voltage, which is galvanically isolated from the input voltage. The negative potential of the outputs is permanently connected to PE within the unit. Do not connect any output to PE (Ground). The device is designed to supply any kind of loads, including capacitive and inductive loads. If capacitors with a capacitance >...

  • Page 8: Hold-Up Time

    FPT500.241-006-113 Hold-up Time The hold-up time is the time during which a power supply’s output voltage remains within specification following the loss of input power. The hold-up time is output load dependent. At no load, the hold-up time can be up to several seconds. The status LED is also on during this time.

  • Page 9: Dc-Ok Relay Contact

    FPT500.241-006-113 DC-OK Relay Contact This feature monitors the output voltage, which is produced by the power supply itself. It is independent of an eventually present external voltage on the output of the power supply. Contact closes As soon as the output voltage reaches typ. 90 % of the adjusted output voltage. The DC-OK relay contact is synchronized with the status LED.

  • Page 10: Efficiency And Power Losses

    FPT500.241-006-113 Efficiency and Power Losses 3AC 400 V 3AC 480 V Efficiency typ. 95.8 % 95.6 % at 26 V, 500 W Average efficiency typ. 94.2 % 94 % 25 % at 120 W, 25 % at 250 W, 25 % at 370 W, 25 % at 500 W Power losses typ.

  • Page 11: Lifetime Expectancy

    FPT500.241-006-113 10. Lifetime Expectancy The lifetime expectancy shown in the table indicates the minimum operating hours (service lifetime) and is determined by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification. The manufacturer of the electrolytic capacitors only guarantees a maximum lifetime of up to 15 years (131 400 h).

  • Page 12: Functional Diagram

    FPT500.241-006-113 12. Functional Diagram LED-Bar Output Status-LED Temperature Overvoltage Shutdown Output Protection Power Down Manager Set Mode DC-OK DC-OK-Contacts Relay Power- Output Converter brown Input: blue Fuse PFC- Filter Converter Recifier Current Limiter Fig. 12-1: Functional Diagram FPT500.241-006-113 All parameters are specified at 24 V, 500 W, 3x 400 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted. March 2025 / Rev.

  • Page 13: Dimensions And Connectors

    FPT500.241-006-113 13. Dimensions and Connectors 181 mm 70 mm 14 mm 9 mm 50 mm Ø 11 mm 11 mm 60.4 mm 15 mm 21 mm 268 mm 272 mm 321 mm DC OK INPUT OUTPUT Width: 181 mm Housing body material: Aluminium alloy Housing cover material: Hi-grade polycarbonate...

  • Page 14: User Interface

    FPT500.241-006-113 14. User Interface Input connector DC-OK connector Output connector LED bar Status LED Set Mode and UP / DOWN buttons Overview LED bar (A) The LED bar is a multifunctional display. The main function is to monitor the sum of all outputs (percentages scale). It also can display the output voltage (voltage scale) and output power (percentage scale) for the individual outputs.

  • Page 15: Led Signaling

    FPT500.241-006-113 LED signaling The Status LED (B) displays different running conditions of the device in real-time. Green: On DC voltage is above 90 % of output voltage and all outputs are operating according to their settings. DC voltage is below 90 % of output voltage or power supply is not powered. Orange: Two face operation See chapter 22.4.

  • Page 16: Emc

    FPT500.241-006-113 15. EMC The EMC behavior of the device is designed for applications in industrial environment as well as in residential, commercial and light industry environments. The device is investigated according to EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 and EN 61000-3-3.

  • Page 17: Environment

    FPT500.241-006-113 16. Environment Operational temperature -25 °C to +70 °C Operational temperature is the same as the ambient or surrounding temperature and is defined as the air temperature 3 cm below the unit. Storage temperature -40 °C to +85 °C for storage and transportation Output derating 10 W / °C...

  • Page 18: Safety And Protection Features

    FPT500.241-006-113 17. Safety and Protection Features Isolation resistance min. 500 MOhm at delivered condition between input and output, measured with 500 Vdc min. 500 MOhm at delivered condition between input and PE, measured with 500 Vdc min. 500 MOhm at delivered condition between output and Output OK contacts, measured with 500 Vdc PE resistance max.

  • Page 19: Dielectric Strength

    FPT500.241-006-113 18. Dielectric Strength The negative terminals of the outputs are permanently connected to PE within the unit. The output is separated from the input by a double or reinforced insulation. Type and routine tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2 s up and 2 s down).

  • Page 20: Approved, Fulfilled Or Tested Standards

    FPT500.241-006-113 19. Approved, Fulfilled or Tested Standards IEC 62368 CB Scheme Certificate IEC 62368-1 - Audio / video, information and communication technology equipment - Safety requirements Output safety level: ES1 IEC 61010 CB Scheme Certificate IEC 61010-2-201 - Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 60950 Manufacturers Declaration...

  • Page 21: Accessories

    FPT500.241-006-113 21. Accessories 21.1. DIN Rail Mounting Kit: ZM.FPDRA-11 In addition to screw mounting FIEPOS can easily be attached to a DIN rail using the ZM.FPDRA-11 DIN rail mounting kit. click • DIN rail not included 21.2. Mounting Bracket: ZM.FPMBA-11 In addition to screw mounting FIEPOS can easily be attached onto surfaces using the mounting bracket ZM.FPMBA-11.

  • Page 22: Application Notes

    FPT500.241-006-113 22. Application Notes 22.1. Repetitive Pulse Loading Typically, a load current is not constant and varies over time. This power supply is designed to support loads with a higher short-term power demand. The short-term duration is hardware controlled by an output power manager and is available on a repeated basis.

  • Page 23: Parallel Use To Increase Output Power

    FPT500.241-006-113 22.6. Parallel Use to Increase Output Power Do not use parallel devices for higher output currents. 22.7. Series Operation Do not connect power supplies in series. All parameters are specified at 24 V, 500 W, 3x 400 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted. March 2025 / Rev.

  • Page 24: Mounting Orientations

    FPT500.241-006-113 22.8. Mounting Orientations The device can be panel mounted in various mounting orientations. The listed lifetime and MTBF values from this datasheet apply only for the standard mounting orientation. The following curves give an indication for allowed output power in different mounting orientations for altitudes up to 2000 m.
