GENERAL DESCRIPTION

The FPS300 is an industrial grade power supply for the single-phase

mains system incorporated in a rugged wall-mount housing with a

degree of protection IP65/67.

It provides one floating, stabilized SELV/PELV output, which is

galvanically separated from the input.. In case of an overload or

load failure, the output offers hiccup-mode.

The most outstanding features of the FPS series are the compact

size, the wide operational temperature range, the low input inrush

current and the extremely high efficiencies, which are achieved by

various technological design technologies.

Various connector options support the different needs of individual

applications. Please contact PULS for possible options.

High immunity to transients and power surges as well as low

electromagnetic emission and an international approval package

makes usage in nearly every environment possible.

RDER NUMBERS

Description:

Order Number

FPS300.241-002-101*

Accessories:

Need help?

Do you have a question about the FIEPOS FPS300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Puls FIEPOS FPS300

Page 1 Various connector options support the different needs of individual Losses 22.4 / 16.2 W At 120 / 230Vac applications. Please contact PULS for possible options. Hold-up time 37 / 37ms At 120 / 230Vac High immunity to transients and power surges as well as low Temperature range -25°C to +70°C...
Page 2: Table Of Contents
FPS300.241-002-101 Index Intended Use ..............3 Dielectric Strength ............17 Installation Instructions ............ 3 Approvals and Fulfilled Standards (Pending) ....18 AC-Input ................4 Regulatory Compliance ........... 18 DC-Input ................5 Accessories ..............19 Input Inrush Current ............5 21.1. DIN RAIL Mounting KIT: ZM.FP-DIN2 ......
Page 3: Intended Use
FPS300.241-002-101 Intended Use This device is designed for indoor use and is intended for commercial applications, such as in industrial control, process control, monitoring and measurement equipment or the like. Do not use this device in equipment where malfunction may cause severe personal injury or threaten human life. If this device is used in a manner outside of its specification, the protection provided by the device may be impaired.
Page 4: Ac-Input
FPS300.241-002-101 AC-Input The device is suitable to be supplied from TN, TT or IT mains networks. For more details, please review chapter 2. AC input voltage rated range Nom. AC 100-240V Suitable for TN-, TT- and IT mains networks AC input operating range 85-264Vac Continuous operation 264-300Vac...
Page 5: Dc-Input
FPS300.241-002-101 DC-Input The device is suitable to be supplied from a DC input voltage. DC input Nom. DC 110-300V ±20% DC input range Min. 88Vdc Max. 360Vdc DC input current Typ. 2.90A At 110Vdc, at 24V, 300W Typ. 1.04A At 300Vdc, at 24V, 300W Turn-on voltage Typ.
Page 6: Output
FPS300.241-002-101 Output The output provide a (PELV/ES1) rated voltage, which is galvanically isolated from the input voltage. The negative potential of the output is permanently connected to PE within the unit. The device is designed to supply any kind of loads, including capacitive and inductive loads. If capacitors with a capacitance >100mF are connected to the output, this the unit might charge the capacitor in hiccup mode.
Page 7: Hold-Up Time
FPS300.241-002-101 Hold-up Time The hold-up time is the time during which a power supply’s output voltage remains within specification following the loss of input power. The hold-up time is output load dependent. At no load, the hold-up time can be up to several seconds. The status LED is also on during this time. AC 100V AC 120V AC 230V...
Page 8: Efficiency And Power Losses
FPS300.241-002-101 Efficiency And Power Losses AC 100V AC 120V AC 230V Efficiency typ. 93.6% 94.3% 95.7% At 24V, 300W Average efficiency typ. 92.9% 93.5% 94.6% 25% at 80W, 25% at 150W, 25% at 220W, 25% at 300W Power losses typ. 2.7W 2.8W 2.2W...
Page 9: Lifetime Expectancy (Pending)
FPS300.241-002-101 Lifetime Expectancy (Pending) The Lifetime expectancy shown in the table indicates the minimum operating hours (service life) and is determined by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification.
Page 10: Functional Diagram
FPS300.241-002-101 Functional Diagram Input Fuse Input Filter Power Output Input Rectifier Converter Converter Filter Output Inrush Current Limiter LED-Bar Status LED Output Down Power Output Set Mode Manager Temperature Over- Shutdown Voltage Protection DC-OK DC-OK Contact Relay Fig. 12-1: Functional Diagram FPS300.241-002-101 All parameters are specified at 24V, 12.5A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Page 11: Dimensions And Connector Variants
See chapter 2 clearances INPUT DC-OK OUTPUT Input Connection (X1): Harting HanQ4/2 Q4/2 Set AS female Harting order code PULS order code 2.5-6mm² 7-13mm 6104401263700 ZCF.hanq42 Q4/2 Set AS female Harting order code PULS order code 6104401263800 ZCF.hanq42-1 2.5-6mm² 14-17mm...
Page 12: User Interface

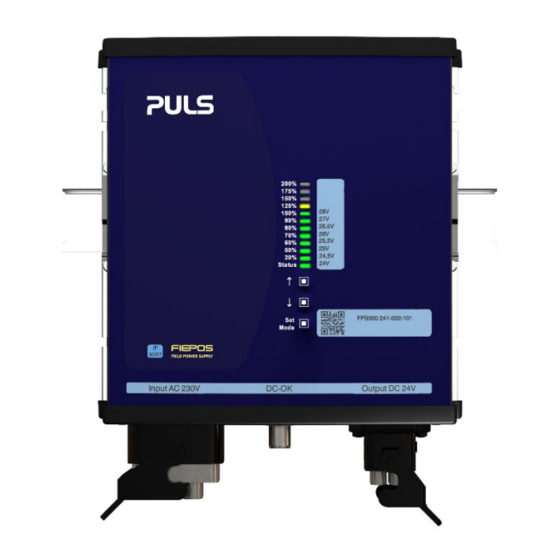

FPS300.241-002-101 User Interface Input Connector Output Connector IO Link Connector Status LED LED Bar Set Mode and Up and Down Button LED Bar Signalization Overview The user menu consists of the LED bar display and 3 push buttons. Two menus are available – the monitoring menu and the configurations menu.
Page 13 FPS300.241-002-101 See actual output voltage To see the actual output voltage press the “Set Mode” button for 3s. All LEDs will be flashing for 1s and the LED indicating the output voltage will remain on. Wait for 20s and the LED bar will return to output power monitoring mode. Setting Functions Change output voltage •...
Page 14: Emc
FPS300.241-002-101 The EMC behavior of the device is designed for applications in industrial environment as well as in residential, commercial and light industry environments. The device is investigated according to EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 and EN 61000-3-3. EMC immunity Electrostatic discharge EN 61000-4-2...
Page 15: Environment
FPS300.241-002-101 Switching Frequencies PFC converter 20kHz to 135kHz Input voltage and output load dependent Main converter 60kHz to 140kHz Output load dependent Auxiliary converter 54kHz to 66kHz Output load dependent Microcontroller clocks Fixed frequency 48Mhz and 32MHz Environment -25°C to +70°C (-13°F to 158°F) Operational temperature Operational temperature is the same as the ambient or surrounding temperature and is defined as the air...
Page 16: Safety And Protection Features
FPS300.241-002-101 Safety and Protection Features Isolation resistance min. 500MOhm At delivered condition between input and output, measured with 500Vdc min. 500MOhm At delivered condition between input and PE, measured with 500Vdc PE resistance max. 0.1Ohm Resistance between PE terminal and the housing Input/Output separation PELV IEC/EN/UL 61010-2-201, IEC/EN 62368-1, IEC/EN 60950-1...
Page 17: Dielectric Strength
FPS300.241-002-101 Dielectric Strength The negative potential of the outputs is permanently connected to PE within the unit. The output is insulated from the input by a double or reinforced insulation. Type and routine tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2s up and 2s down).
Page 18: Approvals And Fulfilled Standards (Pending)
FPS300.241-002-101 Approvals and Fulfilled Standards (Pending) IEC 62368-1 CB Scheme Certificate IEC 62368-1 - Audio/video, information and communication technology equipment - Safety requirements Output safety level: ES1 IEC 61010 CB Scheme Certificate IEC 61010-2-201 - Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 60950-1 Manufacturers Declaration...
Page 19: Accessories
• 21.2. Connectors FIEPOS features a large number of different connectors. PULS provides all matching connectors from its own stock in order to be able to supply customers quickly in the design-in phase. For a higher number of pieces or other options use the www.harting.com...
Page 20: Related Products (Pending)
The FIEPOS product family includes various devices with different technical parameters and features. The following page provides a general overview of the available solutions. Please also get in touch with your PULS contact person, for more detailed application advice and technical information.
Page 21: Application Notes
FPS300.241-002-101 Application Notes 23.1. Repetitive Pulse Loading Typically, a load current is not constant and varies over time. This power supply is designed to support loads with a higher short-term power demand (=BonusPower®). The short-term duration is hardware controlled by an output power manager and is available on a repeated basis. If the average load is higher than the nominal output power, the output voltage will dip.
Page 22: Mounting Orientations
FPS300.241-002-101 23.5. Mounting Orientations The device can be mounted in various mounting orientations. The listed lifetime and MTBF values from this datasheet apply only for the standard mounting orientation. The following curves give an indication for allowed output power in different mounting orientations for altitudes up to 2000m (6560ft).
