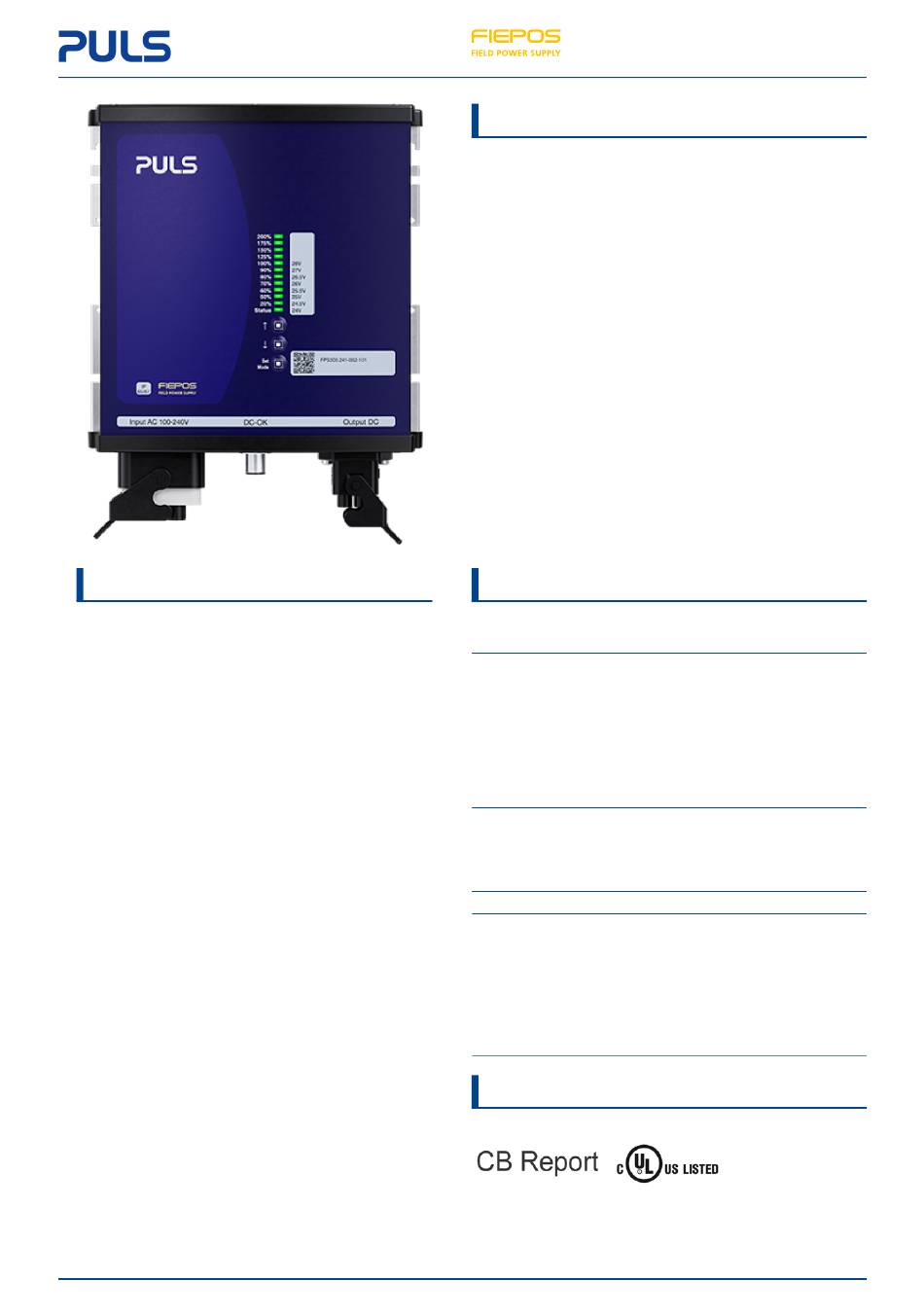

RODUCT DESCRIPTION

The FPS300 is an industrial grade power supply for

a 1-phase mains system that is incorporated into a

rugged wall-mount housing with an IP65 and IP67

degree of protection.

It provides 1 stabilised output that is galvanically

insulated from the input. The negative terminal of

the output is permanently connected to PE within the

unit.

The most outstanding features of the FPS series are

compact size, wide operating temperature range,

extremely low input inrush current and very high

efficiencies, which are achieved through various

design topologies. The large output capacitors can

absorb and store regenerative energy from braking

motors.

High immunity to transients and power surges as well

as low electromagnetic emissions and an international

approval package make the use in nearly every

application possible.

All parameters are specified at 24 V, 300 W, 230 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted.

Feb. 2025 / Rev. 1.0 DS-FPS300.241-002-101-en

POWER SUPPLY

• IP65 and IP67 degree of protection

• AC 100-240 V wide-range input

• 600 W

for 5 s

peak

• Output connected to PE (PELV/ES1)

• 95.7 % full load and excellent partial load efficiencies

• Negligibly low input inrush current surge

• High immunity to transients and power surges

• Low electromagnetic emissions

• Large output capacitors

• DC-OK relay contact

• 3 year warranty

HORT-FORM DATA

Output voltage

Adjustment range

Output power

BonusPower

Short term, up to

Number of outputs 1

Input voltage AC

Input voltage DC

Power factor

AC Inrush current

Efficiency

Power Losses

Hold-up time

Temperature range -25 °C to +70 °C

Size (wxhxd)

Weight

For DC supply voltages above 150 Vdc an external fuse is

required.

AIN APPROVALS

For details and a complete approval list, see chapter 19.

IEC 62368-1

IEC 61010-2-201

www.pulspower.com

100-240 Vac 24 V 300 W

DC 24 V

nominal

24-28 V

factory setting 24.5 V

300 W

up to +55 °C ambient

150 W

up to +70 °C ambient

360 W

up to +45 °C ambient

600 W / 5 s

up to +55 °C ambient

300 W / 5 s

up to +70 °C ambient

Derate linearly between +55 °C to

+70 °C

AC 100-240 V

-15 / +10 %

±20 %

DC 110-300 V

0.99 / 0.97

at 120 / 230 Vac

2.6 / 6 A

at 120 / 230 Vac

peak

94.3 / 95.7 %

at 120 / 230 Vac

18 / 13.2 W

at 120 / 230 Vac

29 / 29 ms

at 120 / 230 Vac

181x183x59 mm without connectors

1200 g

UL 61010

FPS300.241-002-101

1 / 23

Table of Contents

Need help?

Do you have a question about the FIEPOS FPS Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Puls FIEPOS FPS Series

Page 1 FPS300.241-002-101 POWER SUPPLY 100-240 Vac 24 V 300 W • IP65 and IP67 degree of protection • AC 100-240 V wide-range input • 600 W for 5 s peak • Output connected to PE (PELV/ES1) • 95.7 % full load and excellent partial load efficiencies •...
Page 2: Table Of Contents
FPS300.241-002-101 Index Intended Use............17 Safety and Protection Features....... 18 Installation Instructions........... 18 Dielectric Strength........... 19 AC Input..............19 Approved, Fulfilled or Tested Standards....20 DC Input..............20 Regulatory Product Compliance......20 Input Inrush Current..........21 Accessories..............21 Output............... 21.1 DIN Rail Mounting Kit: ZM.FPDRA-11..
Page 3 FPS300.241-002-101 Nomenclature Detail Description 380-480 V 3-phase power supply 100-240 V 1-phase power supply 200-240 V 1-phase power supply 300 W power class 500 W power class 241 / 481 Standard power supply with output voltage 24-28 V / 48-52 V setting and LED bar 242 / 482 Basic power supply without voltage setting and LED bar.
Page 4: Intended Use
FPS300.241-002-101 Intended Use This device is designed for indoor use and is intended for commcerial use, such as in industrial control, process control, monitoring and measurement equipment. Do not use this device in equipment where malfunction may cause severe personal injury or threaten human life. If this device is used in a manner outside of its specification, the protection provided by the device may be impaired.
Page 5: Ac Input
FPS300.241-002-101 AC Input The device is suitable to be supplied from TN-, TT- or IT-mains networks. For more details, see chapter 2. AC input voltage rated range nom. AC 100-240 V AC input operating range 85-264 Vac 264-300 Vac for max. 500 ms Input frequency nom.
Page 6: Dc Input
FPS300.241-002-101 DC Input ±20 % DC input nom. DC 110-300 V DC input range 88-360 Vdc DC input current typ. 2.9 A at 110 Vdc, 24 V, 300 W typ. 1.04 A at 300 Vdc, 24 V, 300 W Turn-on voltage typ.
Page 7: Output
FPS300.241-002-101 Output The output provides a (PELV/ES1) rated voltage, which is galvanically isolated from the input voltage. The negative potential of the outputs is permanently connected to PE within the unit. Do not connect any output to PE (Ground). The device is designed to supply any kind of loads, including capacitive and inductive loads. If capacitors with a capacitance >...
Page 8: Hold-Up Time
FPS300.241-002-101 Hold-up Time The hold-up time is the time during which a power supply’s output voltage remains within specification following the loss of input power. The hold-up time is output load dependent. At no load, the hold-up time can be up to several seconds. The status LED is also on during this time.
Page 9: Dc-Ok Relay Contact
FPS300.241-002-101 DC-OK Relay Contact This feature monitors the output voltage, which is produced by the power supply itself. It is independent of an eventually present external voltage on the output of the power supply. Contact closes As soon as the output voltage reaches typ. 90 % of the adjusted output voltage. The DC-OK relay contact is synchronized with the status LED.
Page 10: Efficiency And Power Losses
FPS300.241-002-101 Efficiency and Power Losses AC 100 V AC 120 V AC 230 V Efficiency typ. 93.6 % 94.3 % 95.7 % at 24 V, 300 W Average efficiency typ. 92.9 % 93.5 % 94.6 % 25 % at 80 W, 25 % at 150 W, 25 % at 220 W, 25 % at 300 W Power losses typ.
Page 11: Lifetime Expectancy
FPS300.241-002-101 10. Lifetime Expectancy The lifetime expectancy shown in the table indicates the minimum operating hours (service lifetime) and is determined by the lifetime expectancy of the built-in electrolytic capacitors. Lifetime expectancy is specified in operational hours and is calculated according to the capacitor’s manufacturer specification. The manufacturer of the electrolytic capacitors only guarantees a maximum lifetime of up to 15 years (131 400 h).
Page 12: Functional Diagram
FPS300.241-002-101 12. Functional Diagram LED-Bar Output Status-LED Temperature Overvoltage Shutdown Output Protection Power Down Manager Set Mode DC-OK OUT-OK-Contacts Relay Power- Converter Output Input: Fuse PFC- Filter Converter Recifier Current Limiter Fig. 12-1: Functional Diagram FPS300.241-002-101 All parameters are specified at 24 V, 300 W, 230 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted. Feb.
Page 13: Dimensions And Connectors
FPS300.241-002-101 13. Dimensions and Connectors 59 mm Width: 181 mm Housing body material: Aluminium alloy Housing cover material: Hi-grade polycarbonate Height: 183 mm Installation clearances: See chapter 2 Depth: 59 mm Weight: 1200 g Input connector on power supply (X1): Han Q 4/2 male Pin 1: L Pin 2: Not connected...
Page 14: User Interface
FPS300.241-002-101 14. User Interface Input connector DC-OK connector Output connector LED bar Status LED Set Mode and UP / DOWN buttons Overview LED bar (A) The LED bar is a multifunctional display. The main function is to monitor the sum of all outputs (percentages scale). It also can display the output voltage (voltage scale) and output power (percentage scale) for the individual outputs.
Page 15: Led Signaling
FPS300.241-002-101 LED signaling The Status LED (B) displays different running conditions of the device in real-time. Green: On DC voltage is above 90 % of output voltage and all outputs are operating according to their settings. DC voltage is below 90 % of output voltage or power supply is not powered. Flashes orange: Overcurrent Output is off during these 18 s.
Page 16: Emc
FPS300.241-002-101 15. EMC The EMC behavior of the device is designed for applications in industrial environment as well as in residential, commercial and light industry environments. The device is investigated according to EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN 61000-3-2 and EN 61000-3-3.
Page 17: Environment
FPS300.241-002-101 Switching Frequencies PFC converter 20 kHz to 135 kHz input voltage and output load dependent Main converter 60 kHz to 140 kHz output load dependent Auxiliary converter 54 kHz to 66 kHz output load dependent Microcontroller clocks 48 MHz and 32 MHz fixed frequency 16.
Page 18: Safety And Protection Features
FPS300.241-002-101 17. Safety and Protection Features Isolation resistance min. 500 MOhm at delivered condition between input and output, measured with 500 Vdc min. 500 MOhm at delivered condition between input and PE, measured with 500 Vdc min. 500 MOhm at delivered condition between output and Output OK contacts, measured with 500 Vdc PE resistance max.
Page 19: Dielectric Strength
FPS300.241-002-101 18. Dielectric Strength The negative terminals of the outputs are permanently connected to PE within the unit. The output is separated from the input by a double or reinforced insulation. Type and routine tests are conducted by the manufacturer. Field tests may be conducted in the field using the appropriate test equipment which applies the voltage with a slow ramp (2 s up and 2 s down).
Page 20: Approved, Fulfilled Or Tested Standards
FPS300.241-002-101 19. Approved, Fulfilled or Tested Standards IEC 62368 CB Scheme Certificate IEC 62368-1 - Audio / video, information and communication technology equipment - Safety requirements Output safety level: ES1 IEC 61010 CB Scheme Certificate IEC 61010-2-201 - Electrical Equipment for Measurement, Control and Laboratory Use - Particular requirements for control equipment IEC 60950 Manufacturers Declaration...
Page 21: Accessories
FPS300.241-002-101 21. Accessories 21.1. DIN Rail Mounting Kit: ZM.FPDRA-11 In addition to screw mounting FIEPOS can easily be attached to a DIN rail using the ZM.FPDRA-11 DIN rail mounting kit. click • DIN rail not included 21.2. Mounting Bracket: ZM.FPMBA-11 In addition to screw mounting FIEPOS can easily be attached onto surfaces using the mounting bracket ZM.FPMBA-11.
Page 22: Application Notes
FPS300.241-002-101 22. Application Notes 22.1. Repetitive Pulse Loading Typically, a load current is not constant and varies over time. This power supply is designed to support loads with a higher short-term power demand. The short-term duration is hardware controlled by an output power manager and is available on a repeated basis.
Page 23 FPS300.241-002-101 Upside down Output Power (W) Horizontal clockwise and counter clockwise Ambient Temperature (°C) Over-head and table- top mounting All parameters are specified at 24 V, 300 W, 230 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted. Feb.
