Puls FPH500 Manual

G
ENERAL DESCRIPTION

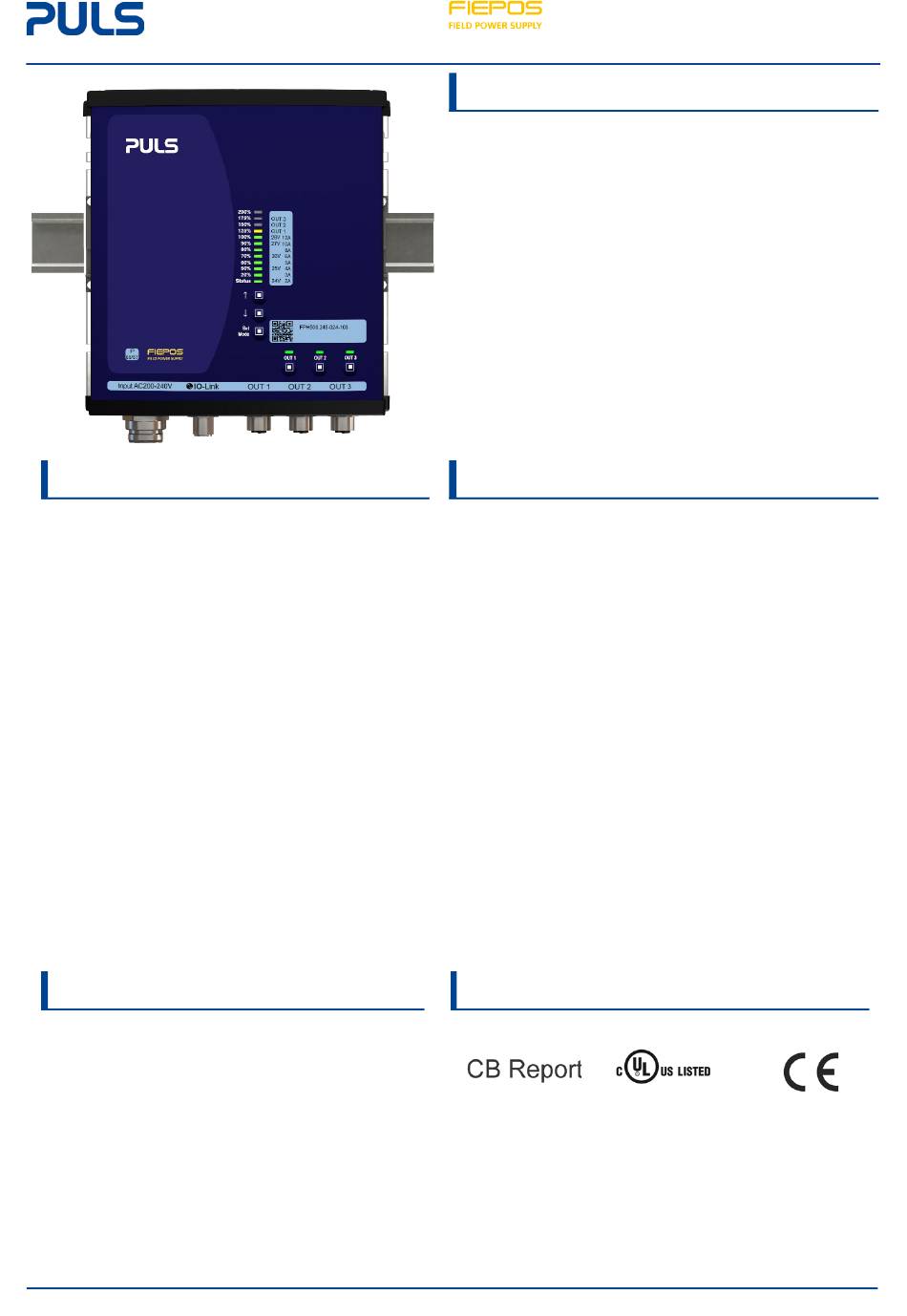

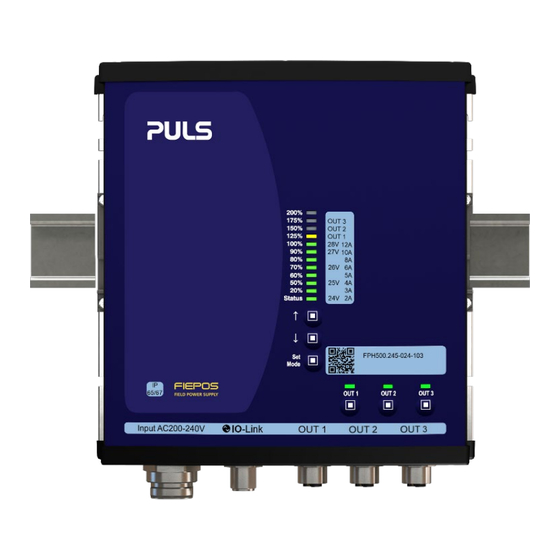

The FPH500 is an industrial grade power supply for the
1-phase mains system, it is incorporated into a rugged
wall-mount housing with an
protection.
It provides two to four stabilized outputs that are
galvanically separated from the input. The negative
potential of the outputs is permanently connected to
PE within the unit.
The most outstanding features of the FPT series are the
compact size, the wide operating temperature range,
the extremely low input inrush current and the very
high efficiencies, which are achieved through various
design technologies. Large output capacitors can
absorb and store regenerative energy from breaking
motors.
Various connector options support the different needs
of individual applications. Please contact PULS for
possible options. High immunity to transients and
power surges as well as low electromagnetic emissions
and an international approval package makes the use
in nearly every application possible.
O
RDER NUMBERS
Description:
Order Number
FPH500.245-024-103*
Accessories:
Related Products
*For DIN rail mounting PSU: (Order Number)D
e.g. FPH500.245-024-103D
All parameters are specified at 24V, 20.8A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Aug. 2022 / Rev. 0.2 DS-FPH500-EN
IP65/67 degree of
Power supply FPS300
Input Output
7/8" 3pin 3x M12-L
Chapter 21
Chapter 22
P
OWER SUPPLY
•
IP 65/67 Degree of protection
•
1000 W 5 s
peak
•
1AC 200-240 V
•
3 switchable outputs
•
Outputs for actors and sensors shares one channel
•
94.8 % full load and excellent partial load efficiencies
•
DIN rail mounting possible, option "D"
•
Output connected to PE (PELV)
•
Version without connection to PE on request
•
Large output capacitors
•
Not potted
•
Negligible low input inrush current surge
•
Full power between -25 °C and +55 °C
•
IO-Link
•
3 years warranty
S
HORT-FORM DATA
Output voltage DC 24 V
Adjustment range 24-28 V
Output power Continuous:
600 / 500 / 350 W +45 / +55 / +70 °C
Short term up to 5 s
1000 / 700 W
Derate linearly +45 °C to +70 °C
Number of output 3
Output currents Settable per output; up to 12 A
Input voltage AC 1AC 200-240 V
Input voltage DC DC 200-300
Power factor 0.99 / 0.97
AC Inrush current 6 A
Efficiency 94.8 %
Losses 27.8 W
Hold-up time 29 ms
Temperature range -25 °C to +70 °C
Size (wxhxd) 181x183x59 mm Without connectors
Weight 1200 g / 2.7 lb
*) For DC supply voltages an external fuse is required.
M
AJOR APPROVALS AND CONFORMITY
For details or a complete approval list, see chapter 21.
IEC 62368-1
IEC 61010-2-201
www.pulspower.com
FPH500.245-024-103
200-240Vac 24V 500W
Nominal
Factory setting 24.5 V
Up to:
+55 / +70 °C
-15 / +10 %
V*) ±20 %
At 230 Vac
At 230 Vac
peak
At 230 Vac
At 230 Vac
At 230 Vac
1 / 41
