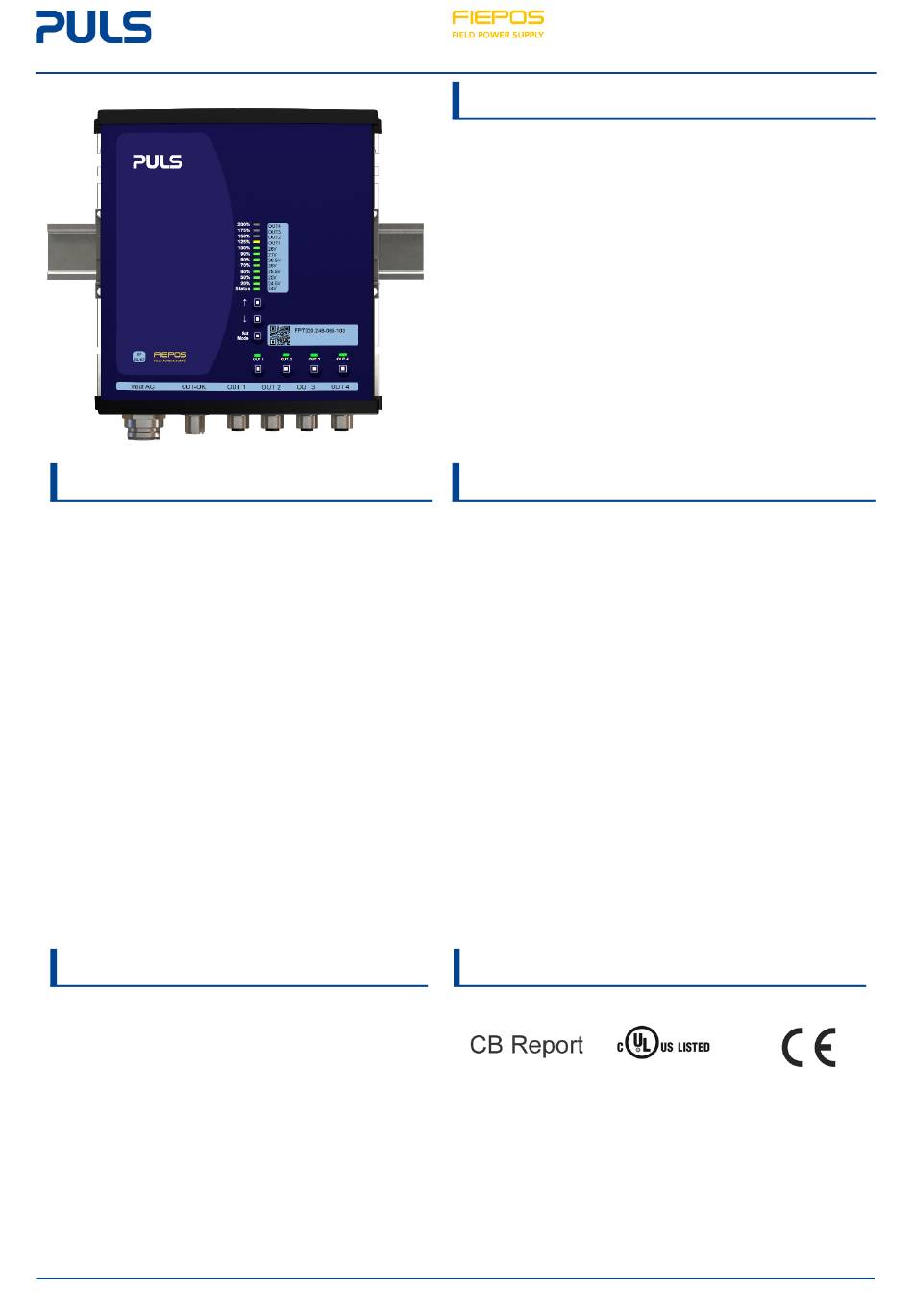

Puls FIEPOS FPT300.246-065-103 Manual

G
ENERAL DESCRIPTION

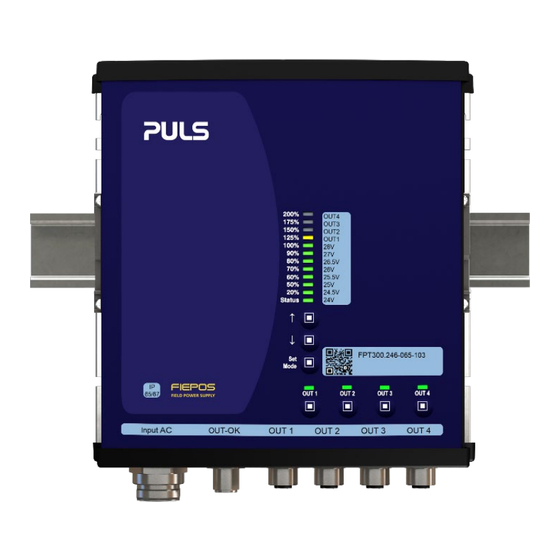

The FPT300 is an industrial grade power supply for the
3-phase mains system, it is incorporated into a rugged
wall-mount housing with an
protection.
It provides two to four stabilized outputs that are
galvanically separated from the input. The negative
potential of the outputs is permanently connected to
PE within the unit.
The most outstanding features of the FPT series are the
compact size, the wide operating temperature range,
the extremely low input inrush current and the very
high efficiencies, which are achieved through various
design technologies. Large output capacitors can
absorb and store regenerative energy from breaking
motors.
Various connector options support the different needs
of individual applications. Please contact PULS for
possible options. High immunity to transients and
power surges as well as low electromagnetic emissions
and an international approval package makes the use
in nearly every application possible.
O
RDER NUMBERS
Description:
Order Number
FPT300.246-065-103*
Accessories:
Related Products
*For DIN rail mounting PSU: (Order Number)D
e.g. FPT300.246-065-103D
All parameters are specified at 24 V, 12.5 A, 400 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted.
Apr. 2022 / Rev. 0.1 FPT300.246-065-103-EN
IP65/67 degree of
Power supply FPT300
Input Output
7/8" d 4x M12-A
Chapter 21
Chapter 22
P
OWER SUPPLY
•
IP 65/67 Degree of protection
•
600 W 1 s
peak
•
3AC 380-480 V wide-range input
•
4 switchable NEC Class II outputs
•
Outputs for actors and sensors shares one channel
•
95.1 % full load and excellent partial load efficiencies
•
DIN rail mounting possible, option "D"
•
Output connected to PE (PELV)
•
Version without connection to PE on request
•
Large output capacitors
•
Not potted
•
Negligible low input inrush current surge
•
Full power between -25 °C and +55 °C
•
Output OK
•
3 years warranty
S
HORT-FORM DATA
Output voltage DC 24 V
Adjustment range 24-28 V
Output power Continuous:
300 / 150 W
Short term up to
450 W / 60 s
600 W / 1 s
Derate linearly +55 °C to +70 °C
Number of output 4
Output currents NEC Class II
Input voltage 3AC 380-480 V
Power factor 0.9 / 0.9
AC Inrush current 1.5 / 1.5 A
Efficiency 95.2 / 95.0 %
Losses 15 / 16 W
Hold-up time 25 / 25 ms
Temperature range -25 °C to +70 °C
Size (wxhxd) 181x183x59 mm Without connectors
Weight 1200 g / 2.7 lb
M
AJOR APPROVALS AND CONFORMITY
For details or a complete approval list, see chapter 21.
IEC 62368-1
IEC 61010-2-201
www.pulspower.com
FPT300.246-065-103
380-480Vac 24V 300W
Nominal
Factory setting 24.5 V
Up to:
+55 / +70 °C
+55 °C
+55 °C
±15 %
At 3x400 / 480 Vac
At 3x400 / 480 Vac
peak
At 3x400 / 480 Vac
At 3x400 / 480 Vac
At 3x400 / 480 Vac
1 / 28
