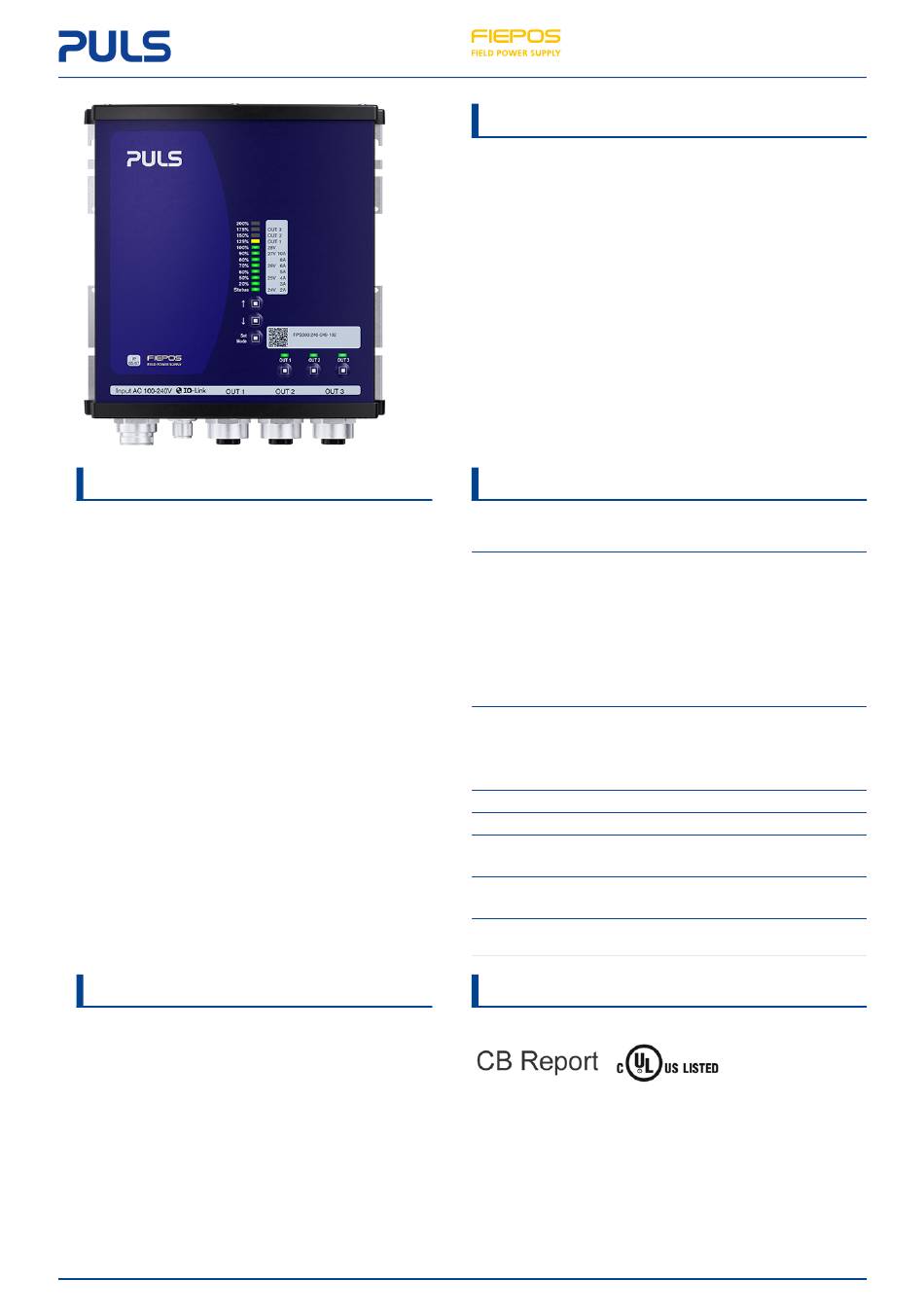

P
RODUCT DESCRIPTION
The FPS300 is an industrial grade power supply for
a 1-phase mains system that is incorporated into a
rugged wall-mount housing with an IP65 and IP67
degree of protection.
It provides 3 stabilised outputs that are galvanically
insulated from the input. The negative terminals of
the outputs are permanently connected to PE within
the unit.
The most outstanding features of the FPS series are
compact size, wide operating temperature range,
extremely low input inrush current and very high
efficiencies, which are achieved through various
design topologies. The large output capacitors can
absorb and store regenerative energy from braking
motors.
High immunity to transients and power surges as well
as low electromagnetic emissions and an international
approval package make the use in nearly every
application possible.
O
RDER NUMBERS
FPS300.246-049-102
Complementary units:
ZM.FPDRA-11
ZM.FPMBA-11
All parameters are specified at 24 V, 300 W, 230 Vac, 25 °C ambient and after a 5 minutes run-in time unless otherwise noted.
Mar. 2025 / Rev. 1.0 DS-FPS300.246-049-102-en
Power supply
Input
Output
7/8" 3pin
3x 7/8" 4pin
DIN rail mounting kit
Mounting bracket
POWER SUPPLY
• IP65 and IP67 degree of protection
• AC 100-240 V wide-range input
• 3 switchable NEC Class 2 outputs
• 600 W
for 5 s
peak
• Output connected to PE (PELV/ES1)
• 95.7 % full load and excellent partial load efficiencies
• Full power between -25 °C and +55 °C
• Negligibly low input inrush current surge
• High immunity to transients and power surges
• Low electromagnetic emissions
• Large output capacitors
• IO-Link interface
• 3 year warranty
S
HORT-FORM DATA
Output voltage
Adjustment range
Output power
Short term (5 s)
Number of outputs 3
Output currents
Input voltage AC
Input voltage DC
Power factor
AC Inrush current
Efficiency
Power Losses
Hold-up time
Temperature range -25 °C to +70 °C
Size (wxhxd)
Weight
1)
For DC supply voltages above 150 Vdc an external fuse is
required.
M
AIN APPROVALS
For details and a complete approval list, see chapter 19.
IEC 62368-1
IEC 61010-2-201
www.pulspower.com
100-240 Vac 24 V 300 W
DC 24 V
nominal
24-28 V
factory setting 24.5 V
300 W
up to +55 °C ambient
150 W
up to +70 °C ambient
600 W
up to +55 °C ambient
300 W
up to +70 °C ambient
Derate linearly between +55 °C to
+70 °C
3x NEC Class 2
AC 100-240 V
-15 / +10 %
±20 %
DC 110-300 V
1)
0.99 / 0.97
at 120 / 230 Vac
2.6 / 6 A
at 120 / 230 Vac
peak
94.3 / 95.7 %
at 120 / 230 Vac
18.1 / 13.5 W
at 120 / 230 Vac
44 / 44 ms
at 120 / 230 Vac
181x183x59 mm without connectors
1200 g
UL 61010
FPS300.246-049-102
1 / 28
