GENERAL DESCRIPTION
The FPT300 is an industrial grade power supply for the 3-phase mains
system incorporated in a rugged wall- mount housing with
of protection
IP54.
It provides two to four stabilized outputs that is galvanically
separated from the input. The negative potential of the outputs is
permanently connected to PE within the unit.
The most outstanding features of the FPT series are the compact
size, the wide operational temperature range, the extremely low
input inrush current and the very high efficiencies, which are
achieved by various design technologies. Large sized output
capacitors can absorb and store regenerative energy from breaking
motors.
Various connector options support the different needs of individual
applications. Please contact PULS for possible options. High
immunity to transients and power surges as well as low
electromagnetic emission and an international approval package
makes usage in nearly every application possible.
O
RDER NUMBERS
Description:
Order Number
FPT300.246-042-101
Accessories:
Related Products
All parameters are specified at 24V, 12.5A, 400Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Apr. 2021 / Rev. 0.2 FPT300.246-042-101-EN
a degree

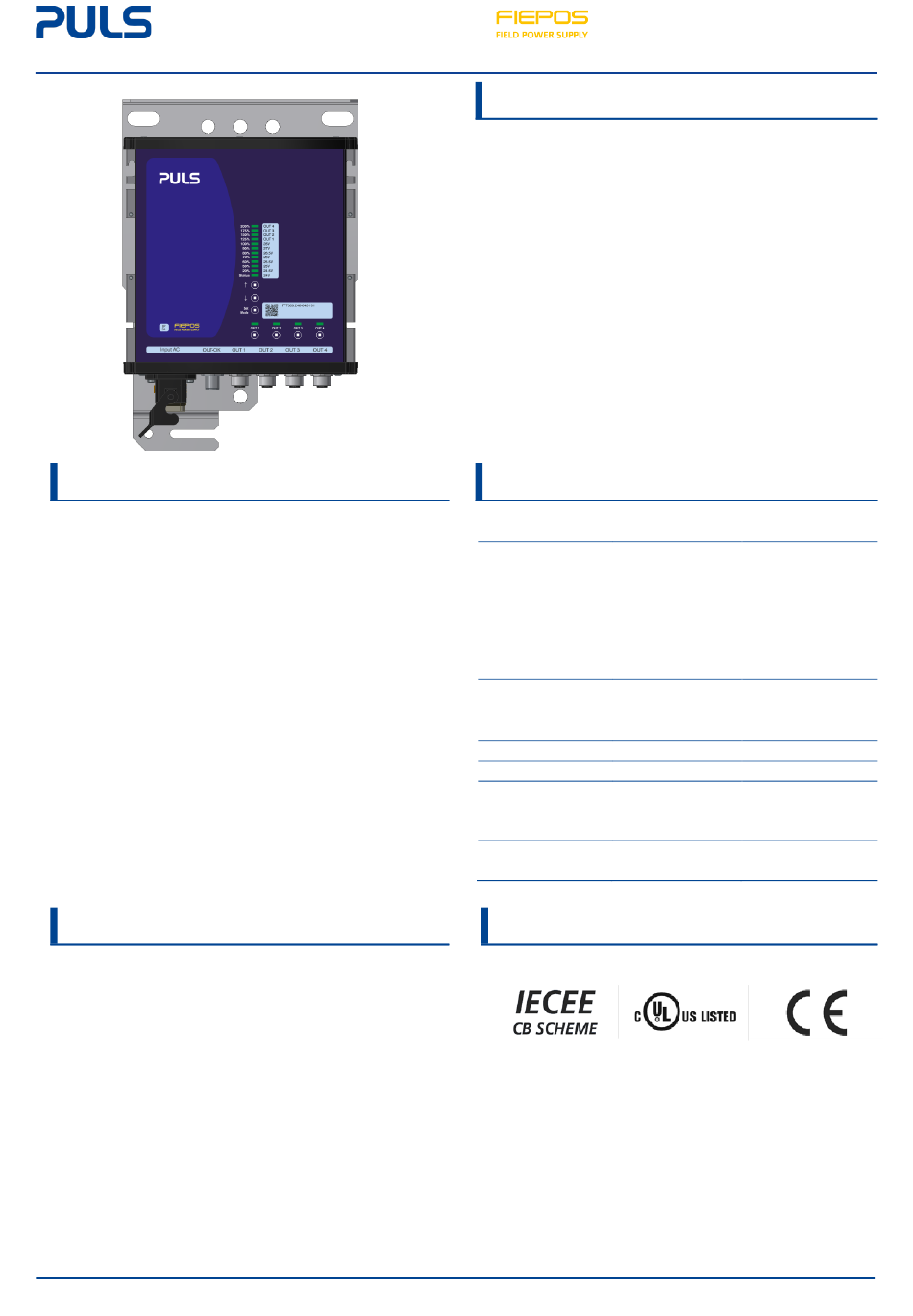

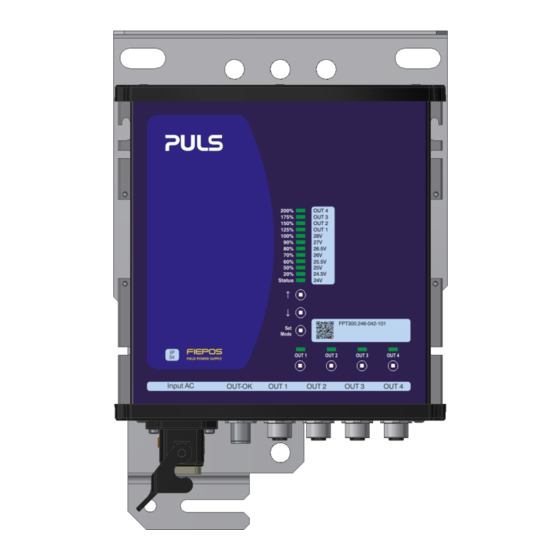

Power supply FPT300
Input
Output
HanQ5/0
4x M12-A
Chapter 21
Chapter 22
POWER SUPPLY
• IP54 degree of protection
• 600W
1s
peak
• 3AC 380-480V wide-range input
4 NEC CLASS 2 outputs
Mounting bracket for easy mounting and various additional
safety and protection features included
• 95.2% full load and excellent partial load efficiencies
• DIN Rail mounting possible, option "D"
• Output connected to PE (PELV)
• Version without connection to PE on request
• Large Output Capacitors
• Not potted
• Negligible Low Input Inrush Current Surge
• Full Power between -25°C and +55°C
Output-OK
• 3 Years Warranty
S
HORT-FORM DATA
Output voltage
DC 24V
Adjustment range
24-28V
Output power
Continuous:
300 / 150
Short term up to
450W / 60s
600W / 1s
Number of outputs: 4
Output currents
NEC Class II
Input voltage
3AC 380-480V
Power factor
0.9 / 0.9
AC Inrush current
1.5 / 1.5A
Efficiency
95.2 / 95.0%
Losses
15.1 / 15.8 W
Hold-up time
25 / 25ms
Temperature range
-25°C to +70°C
Derate linearly from +55°C to +70°C
Size (wxhxd)
182x272x70mm
Weight
1550g / 3.4lb
M
AIN APPROVALS
For details or a complete approval list, see chapter 21.
IEC 62368-1
IEC 61010-2-201
www.pulspower.com
FPT300.246-042-101
3AC 24V 300W
Nominal
Factory setting 24.5V
Up to:
+55 / +70°C
+55°C
+55°C
±15%
At 3x400 / 480Vac
At 3x400 / 480Vac
peak
At 3x400 / 480Vac
At 3x400 / 480Vac
At 3x400 / 480Vac
Without connectors
1 / 26
