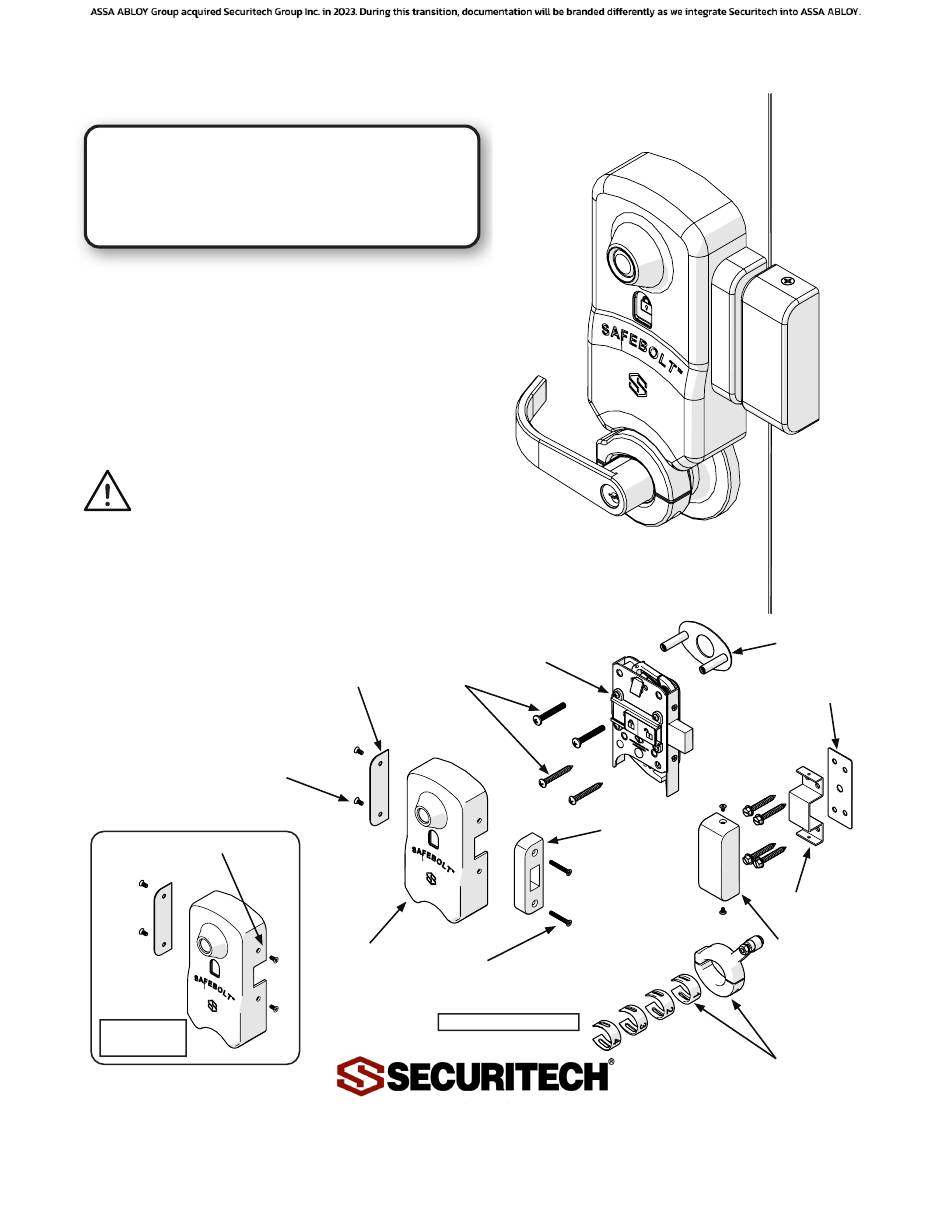

INSTALLATION INSTRUCTIONS:
SAFEBOLT
Template(s):
Template(s):
Refer to model number
Use with Series:
Use with
Safebolt Locks
Tool(s) Required:
Tool(s) Required:
Screw drivers: Phillips, slotted,
Allen keys: 5/64"
Drill bits: 1-1/4", 7/16", 11/64", #29,
1/8"
7/16" wrench
Blue Thread Locker
NOTE: Parts received may be slightly
different from parts shown in this
document.
Please refer to packing list for details on
parts received and fasteners received.
Cover
mounting
screws
No bolt guide for outswing
models
Outswing
Lock Shown
INS-00036 — Rev: 01 Dated: 02-19-20
TM
Mechanism
Cover
mounting
side-panel
screws
Cover
Cover
mounting
screws
Inswing Lock Shown
54-60 46th St., Maspeth, NY 11378
www.securitech.com
718-392-9000
RH Inswing Shown
Lock
mechanism
Bolt guide
SAFEBOLT INSTALLATION INSTRUCTIONS
Key cylinder
holder
Strike spacer
Strike
Strike cover
Handle collar
and inserts
Page 1 of 4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Assa Abloy SECURITECH SAFEBOLT
Summary of Contents for Assa Abloy SECURITECH SAFEBOLT
- Page 1 INSTALLATION INSTRUCTIONS: SAFEBOLT Template(s): Template(s): Refer to model number Use with Series: Use with Safebolt Locks Tool(s) Required: Tool(s) Required: Screw drivers: Phillips, slotted, Allen keys: 5/64” Drill bits: 1-1/4”, 7/16”, 11/64”, #29, 1/8” 7/16” wrench Blue Thread Locker NOTE: Parts received may be slightly different from parts shown in this document.
- Page 2 BEFORE YOU START • The steel SAFEBOLT template is ordered and supplied separately – make sure you have one! • SAFEBOLT works with most cylindrical levers. Consult factory if working with unit locks. • Door must swing freely. Existing lockset must be securely fastened and fully operational. •...
- Page 3 D. FASTENING THE LEVER COLLAR Fig. D1 1. Line up the inserts. #1 is the thickest insert. Place each inserts on the interior lever and check for the gap between insert and lever. The right insert is when the collar can be closed and it is snug and doesn’t slide.
- Page 4 G. COVER INSTALLATION (OUTSWING DOORS) 1. Place the cover over the mechanism. Place the cover side panel and secure with two screws. See Fig. G. b. Fasten the front of the cover with two screws. 2. Test the operation Press the red button. The bolt should project freely. b.
