Summary of Contents for CTC Union LX100

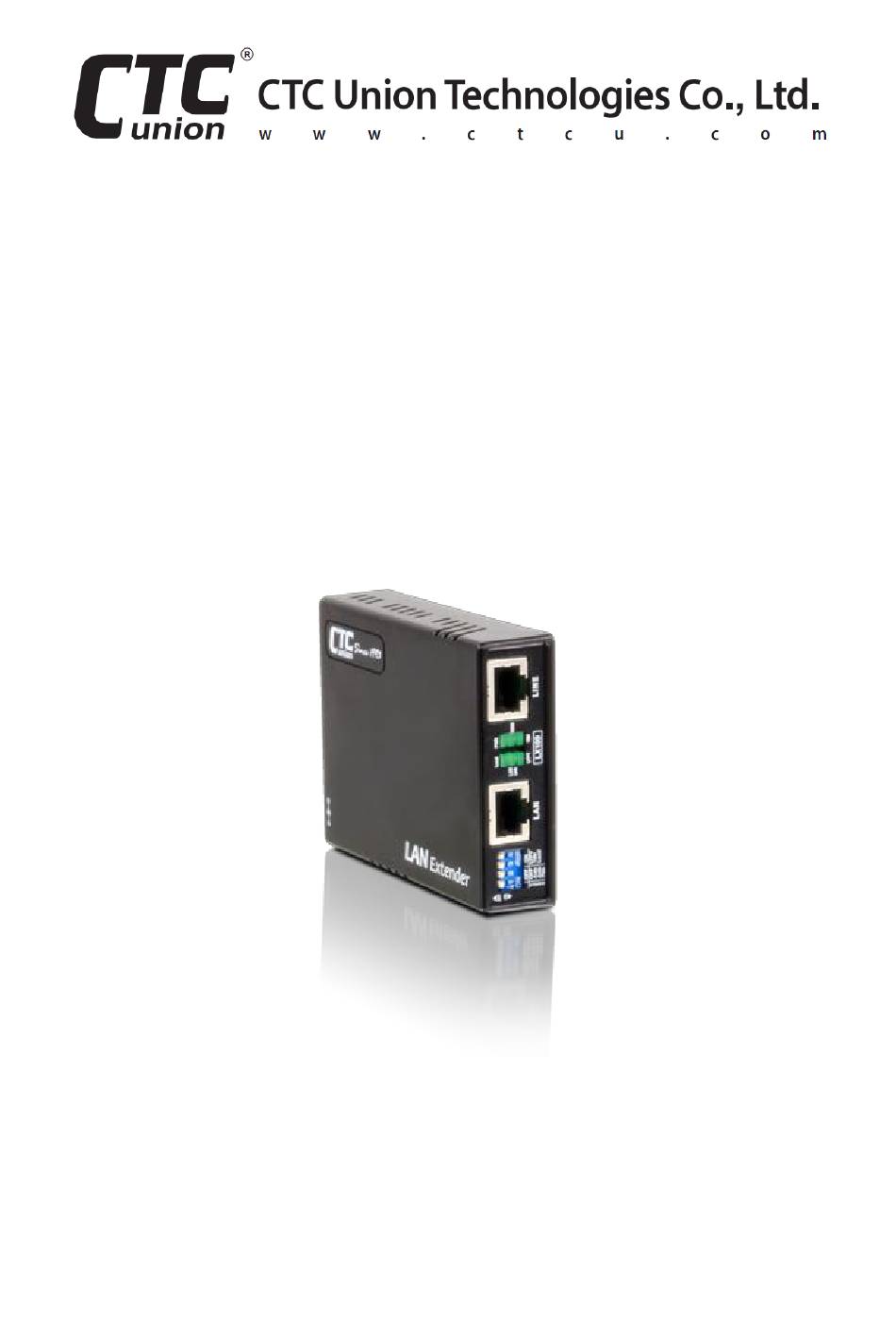

- Page 1 User Guide LX100 10/100Base-TX Ethernet LAN Extender sales@ctcu.com...
- Page 2 8F, No. 60, Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Table of Contents Introduction .................. 4 Package List ................. 4 Features ..................4 Specifications ................5 Panel ..................... 6 Connectors ................... 7 Extension Distance vs. Speed of LINE Side ....... 8 DIP Switch..................9 LED Indicators ................10 Wall Mounting Installation ............11 Application .................. -
Page 4: Introduction
100M and extend transmission distance up to 800M over Cat. 5e or Cat. 6 cable. Each LX100 LAN extender is a compact size device which can be used as a standalone extender or can be optionally inserted into FMC- CH08 and FMC-CH17 chassis for centralized concentration. All in all, for long distance data transmission, LX100 is the most cost-effective and efficient solution for data transmission deployments. -
Page 5: Specifications
10Mbps or 100Mbps -- The LINE speed between LX100 pair will be 10M or 100M depending on extension length. -- The LAN speed of LX100 is same as LINE speed. Cable -- 1 or 2-pair UTP cable (Cat. 5e or Cat. -
Page 6: Panel
Panel Figure 1. Front Panel Figure 2. Rear Panel Description RJ-45 LAN Connector RJ-45 LINE Connector DIP Switch LED Indicators 12VDC Power Input... -
Page 7: Connectors
Ethernet devices such as switch or NVR; while the connector labeled LINE connects to the LINE side of the remote device for distance extension. In the remote side, the connector of LX100 labeled LAN connects to Ethernet devices such as IP Camera, Access Point, IP Phone, Digital Signage or any other Ethernet devices. -
Page 8: Extension Distance Vs. Speed Of Line Side
Extension Distance vs. Speed of LINE Side The following table shows the extension distance and link speed between two LX100 devices (LINE side). If the DIP switch of the link speed is set to Auto, the actual link speed will be determined by the extension distance. -
Page 9: Dip Switch
DIP Switch The table below shows the concise DIP switch functions: DIP 1 DIP 2 DIP 3 DIP 4 DIP NO. Position LFPT Speed Mode Reserved LFPT Off Auto Auto LFPT On Local The table below shows the detailed descriptions of DIP switch functions: DIP NO. -
Page 10: Led Indicators
LED Indicators Color State Descriptions Power is on. Green No power inputs. Local (Master) mode. Local Green Slave mode. LINE is link up and operates at 10Mbps. Green LINE is link down. LINE is link up and operates at 100Mbps. 100M Green LINE is link down. -
Page 11: Wall Mounting Installation
Wall Mounting Installation Each LX100 standalone extender has the option of adding wall mount capability. One wall mount kit is required for installing a single standalone unit on the wall. Each wall mount kit provides all the necessary hardware for a complete installation. - Page 12 Version Date Description 2022/6/8 - Preliminary version 2022/7/22 Add 1,2 & 3,6 pins for data communications Add notes for LFPT DIP 2022/8/23...
