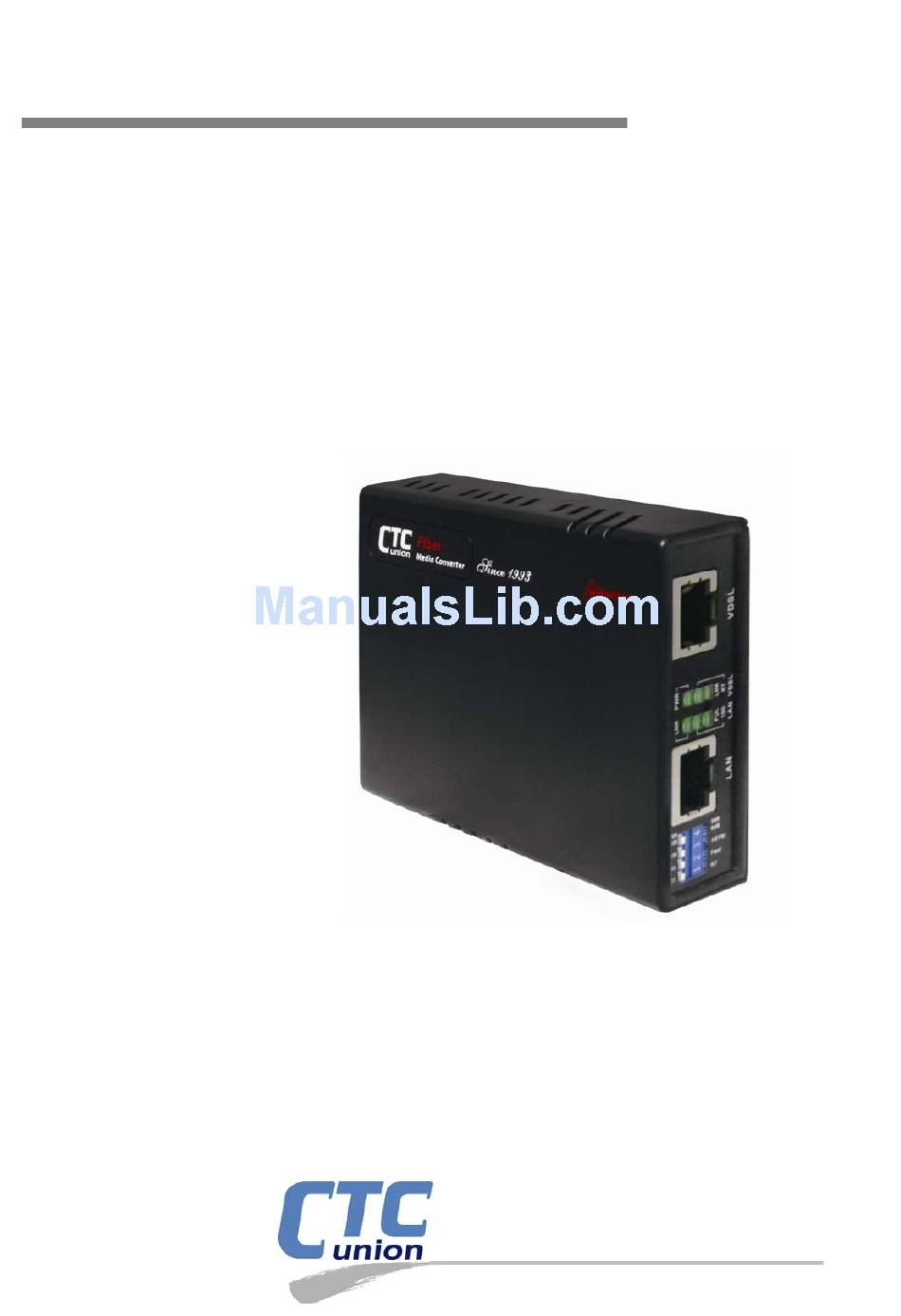

Page 1: User Manual
USER MANUAL VDTU2A-301 VDSL2 LAN Extender CTC Union Technologies Co.,... - Page 3 CTC Union Technologies reserves the right to make changes in its products or product specifications with the intent to improve function or design at any time and without notice and is not required to update this documentation to reflect such changes.
- Page 4 CTC Union Technologies Co., Ltd. Vienna Technology Center 8F, No. 60, Zhouzi St., Neihu District, Taipei, 114 Taiwan VDTU2A-301 VDSL2 LAN Extender, Installation and Operation Manual Version 1.0 April 2008 Firmware Version Notice: TBA...
-
Page 5: Table Of Contents
Table of Contents Tables of Contents..........................i Chapter 1 Introduction ......................7 Features ........................7 Specification......................8 Applications ......................8 Chapter 2 Hardware Installation ....................9 Front Panel ......................9 Real Panel......................11 Installation......................11 Appendix I.............................13 Connector Architecture ......................13... -
Page 7: Chapter 1 Introduction
Chapter 1. Introduction Chapter 1. Introduction CTC Union’s VDTU2A-301 LAN Extender is a Long Reach Ethernet media converter with one Ethernet port (RJ-45 connector) and one VDSL port (RJ-45 connector) This model is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital Subscribe Loop) technologies to extend Ethernet service over single-pair phone line. -
Page 8: Specification
Chapter 1. Introduction 1.2 Specification LAN Interface: RJ-45 connector Complying with IEEE 802.3/802.3u/802.3x 10/100 Base-T Auto-Negotiation, Auto-MDI/MDI-X. VDSL Interface: RJ-45 connector DMT Encoding Complying with ITU-T G993.1/993.2 On-board surge protection 4-position DIP Switch LED: LAN: ACT/LNK, 10/100 Mbps, Half/Full Duplex VDSL: Power On/Off, CO/CPE, Idle/Trained/Link Power supply: DC single 12 Volt over 35mm DC jack... -
Page 9: Chapter 2 Hardware Installation
Chapter2. Hardware Installation Chapter 2. Installation This chapter shows the front panel and how to install the hardware. 2.1 Front Panel Please see the side view below configure 2.1: Front panel can be separated into five parts fron left to right: (1) DIP switch (2) RJ-45 connector for Ethernet (3) LEDs for Ethernet... - Page 10 Chapter2. Hardware Installation The following table describes the DIP Switchs’ setting. Pin 1 Pin 2 Pin 3 Pin 4 Side Channel Rate Limit Interleave Symmetric Fast Asymmetric Pin 1: CO, CPE switch GO: LAN Extender acts as Central Office (CO) side. GPE: LAN Extender acts as Customer Premise Equipment (CPE) side.
-
Page 11: Real Panel
Chapter2. Hardware Installation The following table describes the LEDs’ function of the product. LED for VDSL blinking Power ON Power OFF CPE-mode CO-mode Slow: Idle Linked Off line Fast: Training 2.2 Real Panel The DC Jack on the rear panel can be connected to power supply adaptor with the DC input. 2.3 Installation Please see the illustation below... - Page 12 Chapter2. Hardware Installation...
-
Page 13: Connector Architecture
Appendix 1. Connector Architecture Connector Architecture Ethernet Port Connector (RJ-45) The Ethernet Port interface is a 8 position Modular Jack. The table below displays the pin out assignments. Pin Number Assignment (MDI-X) Figure RX+; Receive data + RX-; Receive data - TX+;... - Page 14 Appendix 1. Connector Architecture...
- Page 16 Transmission Series CTC Union Technologies Co., Ltd. Vienna Technologies Center (Neihu Technology Park) 8F, 60 Zhouzi St., Neihu, Taipei, Taiwan 114 Phone:(886) 2.2659.1021 Fax:(886) 2.2799.1355 E-mail: info@ctcu.com http://www.ctcu.com...
