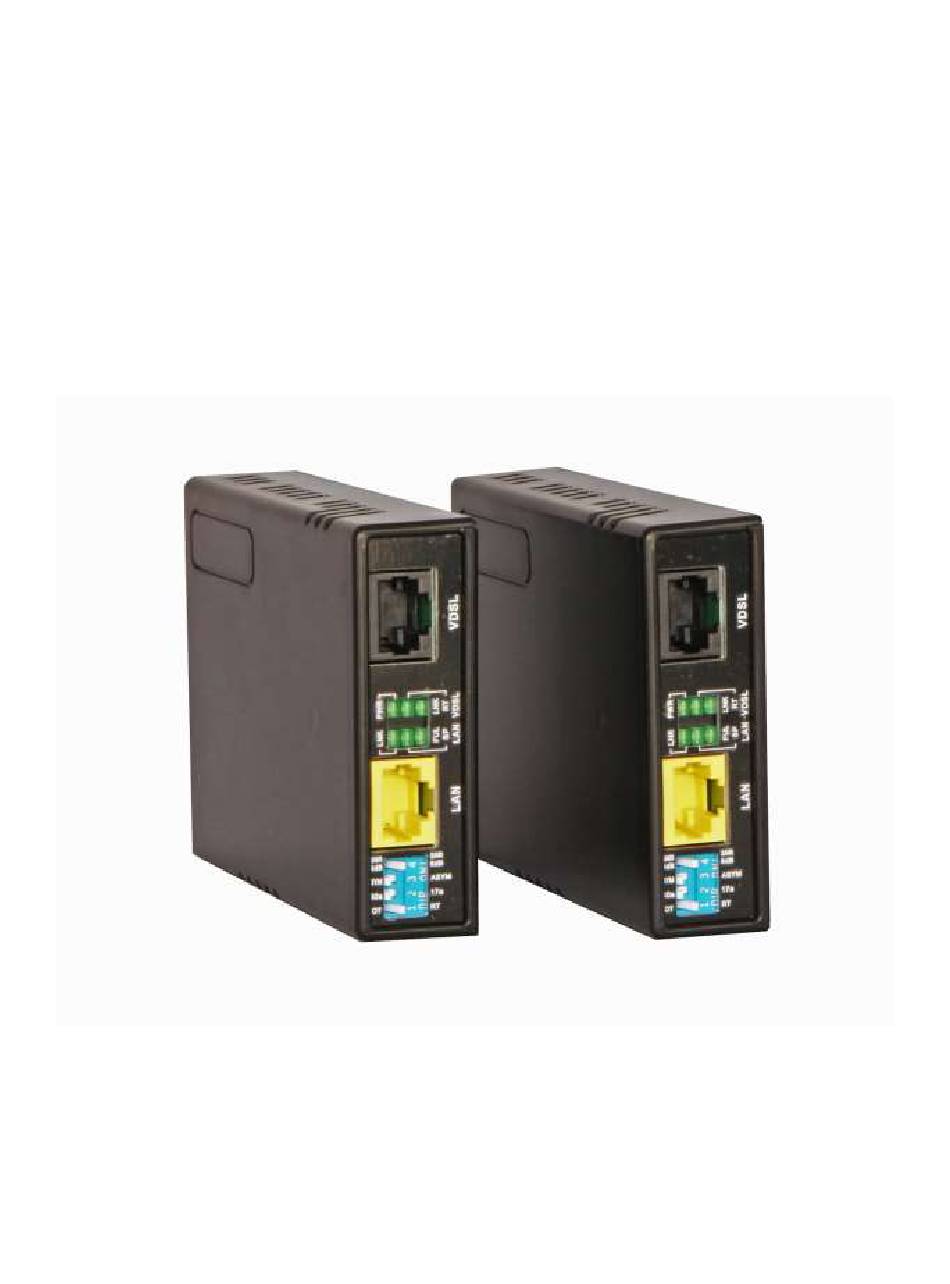

TEX-100
Ethernet Extender
User Manual
Version 2.00
March 2014
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TEX-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CTC Union TEX-100

  • Page 1 TEX-100 Ethernet Extender User Manual Version 2.00 March 2014...
  • Page 2: Table Of Contents

    Table of Contents Chapter 1 Introduction ........................3 1.1 Features ......................4 1.2 Specification ....................5 1.3 Applications ....................5 Chapter 2 Hardware Installation .......................7 2.1 Front Panel .....................7 2.2 Rear Panel ....................10 2.3 Installation......................11 Appendix I ........................12 Appendix II ........................14...
  • Page 3: Chapter 1 Introduction

    Chapter 1 Introduction TEX-100 Ethernet Extender is a high-speed Ethernet Extender with one Ethernet port (RJ-45 connector) and one VDSL port (RJ-45 connector). It is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital Subscriber Loop) technology to extend Ethernet service over single-pair phone line. It is compliant to ITU-T G.993.2 standard and supports VDSL2 30a profile that features 100Mbps of symmetric data rate over the existing copper wires.
  • Page 4: Features

    1.1 Features  Cost effective bridge function to connect two Ethernet LAN  Support flow control on Fast Ethernet port via PAUSE frame or Back Pressure  IEEE 802.1Q VLAN tag transparent  Easy installation via simple plug-and-play  Selectable CPE and CO mode via DIP switch: ...
  • Page 5: Specification

    1.2 Specification  4-position DIP Switch  Selectable CO or CPE mode  Selectable 30a or 17a (VDSL2 Profile)  Selectable Band plan (Symmetric or Asymmetric)  Selectable target SNR margin (6dB or 9dB)  LED:  LAN: ACT/LNK,10/100Mpbs, Half/Full Duplex ...
  • Page 6: Applications

     Power supply:  DC single 12 Volt over 2.0 mm DC jack; 4.2 Watt maximum.   Dimension: 73.4mm x 96.2mm x 22.8mm *The above performance data is for reference only, the actual data rate may vary depending on the quality of the copper wire and environmental factors.
  • Page 7: Hardware Installation

    Chapter 2 Hardware Installation This chapter shows the front panel and how to install the hardware. 2.1 Front Panel Front panel can be separated into five parts from left to right: (1) DIP switch (2) RJ-45 connector for Ethernet (3) LEDs for Ethernet (4) LEDs for VDSL (5) RJ-45 connector for VDSL...
  • Page 8 1. The RJ-45 is designed to connect to the Local Network with the Unshielded Twisted Pair (UTP) cable. The LEDs on top of RJ-45 connector show the status below: 3. The following table describes the DIP Switches’ setting.
  • Page 9 Pin 1: OT, RT switch OT: LAN Extender acts as Central Office (CO) side. RT: LAN Extender acts as Customer Premise Equipment (CPE) side. Pin 2: Impulse noise protection 30a: High Speed Mode. Provides communication protection for up to 250ms impulse noise with latency less than 6 ms.
  • Page 10: Rear Panel

    Pin 4: General protection 9dB: Better channel noise protection with SNR up to 9 dB 6dB: Original channel noise protection with 6 dB SNR. 4. The following table describes the LEDs’ function of the product. 2.2 Rear Panel The DC Jack on the rear panel can be connected to power supply adaptor with the DC input.
  • Page 11: Installation

    2.3 Installation Please see the illustration below:...
  • Page 12 Appendix I Connector Architecture Ethernet Port Connector (RJ-45) The Ethernet Port interface is an 8 position Modular Jack. The table below displays the pin out assignments. VDSL Interface Pin Assignments (RJ-45) The VDSL interface is standard eight-pin modular jack. The table below displays the pin out assignments.
  • Page 14 Appendix II Chassis Accessory There is also the Chassis solution for application on the rack in CO side. The major feature of the Chassis is listed below:  2U, 19”, 17-Slot rack  Support 17-slot in one unit  Power Input: AC: 100 ~240V or DC48: 36 ~ 60V ...
