CTC Union FRM220A-Eoe1 User Manual

CTC Union Technologies Co.,Ltd.
Far Eastern Vienna Technology Center
(Neihu Technology Park)
8F, No. 60 Zhouzi St., Neihu, Taipei 114,
Taiwan
T +886-2-26591021
F +886-2-26590237
E sales@ctcu.com
info@ctcu.com
marketing@ctcu.com
H www.ctcu.com
2010 CTC Union Technologies Co., LTD.
All trademarks are the property of their respective owners.
Technical information in this document is subject to
change without notice.
User Guide
Ethernet over E1 LAN Extender
FRM220A-Eoe1
Table of Contents
Specifications
Management Features
Panel/Installation
LED Indicators
DIP Settings SW1
DIP Settings SW2
DIP Settings SW3
Loop Back Diagnostics
Applications
Console Management
Version 1.1 September 2010
w w w . C T C U . c o m
Introduction ------- 1
------- 2
------- 2
------- 3
------- 4
------- 5
------- 6
------- 7
------- 8
------- 9
------- 10-12
Upgrading ------- 13
Introduction

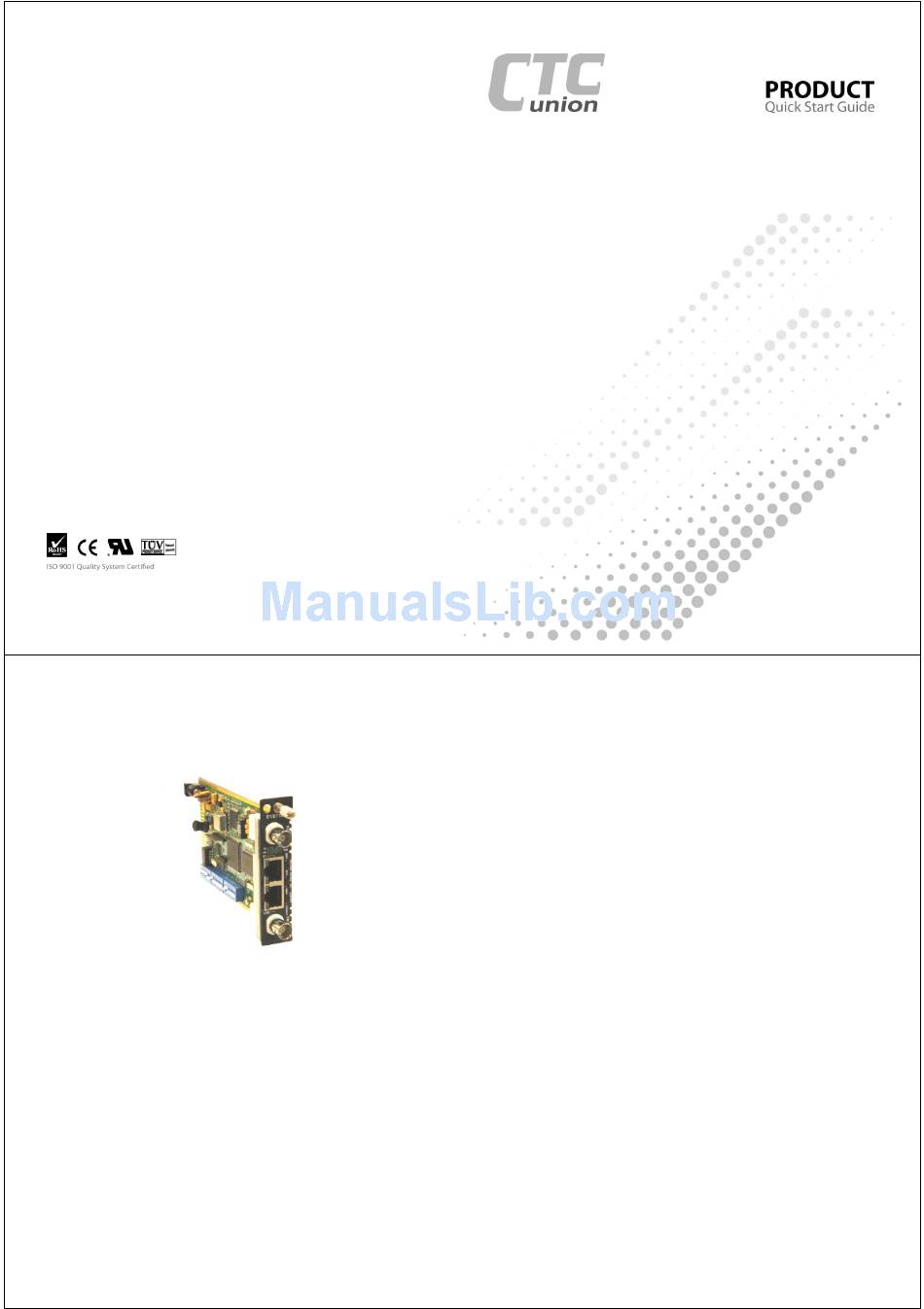

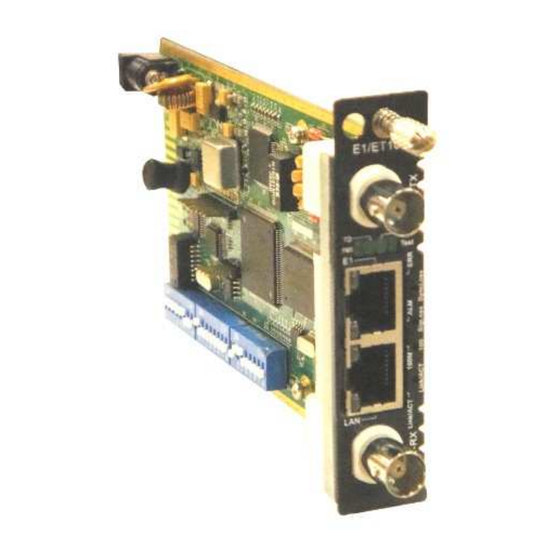

The FRM220A-Eoe1 is a single port G.703/704 Fractional E1 DSU/CSU
card with built-in HDLC Bridge for the FRM220/220A Series Platform Media
Converter Rack. The converter supports Unframed, PCM31, and PCM30
framing modes. The clock source may be selected internally or recovered
from received E1 signal. The Ethernet port utilizes a single RJ-45
connector. One single model supports either unbalanced 75 ohm with two
BNC connectors or balanced 120 ohm with one RJ-45 connector. When the
FRM220A-Eoe1 card is placed in the FRM220 rack with SNMP
management, the management can view the converter card's status, type,
version, Ethernet link status and alarms. The card can be configured to
enable or disable the port, reset the card, set clocking, frame mode and
provide analog diagnostic loopbacks. A unique feature of the FRM220A-
Eoe1 is the use of a common card design which may either be inserted in
the FRM220-CH01 single slot chassis as a stand-alone modem or as a card
when placed in the FRM220-CH20 In-band managed rack.
Features
• Standalone type, 1 port E1 to HDLC converter.
• Uplinks 100M Ethernet to Gigabit trunk card of FRM220A
• Interface connectors, RJ-48C for 120Ω , BNC*2 for 75Ω.
• E1 settings.
• Line Code HDB3 or AMI.
• Full or Fractional.
• Frame setting, E1(CCS/CAS).
• Idle code setting (0x7E or 0xFF).
• Auto generate (AIS) enable, disable setting.
• Timing source setting (Receive E1 recovery or internal oscillator).
• Active timeslot number setting (E1 CCS 1-31 or E1 CAS 1-30).
• Base timeslot setting (E1 CCS 1-31, E1 CAS 1-15 or 17-31.)
• Loop Back with integral BERT
• LED indicators
w w w . C T C U . c o m
- 1 -
