CTC Union FRM220-OAB21 User Manual

CTC Union FRM220-OAB21 User Manual

Single channel edfa booster
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
FRM220-OAB21
Single Channel EDFA Booster
sales@ctcu.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRM220-OAB21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTC Union FRM220-OAB21

Summary of Contents for CTC Union FRM220-OAB21

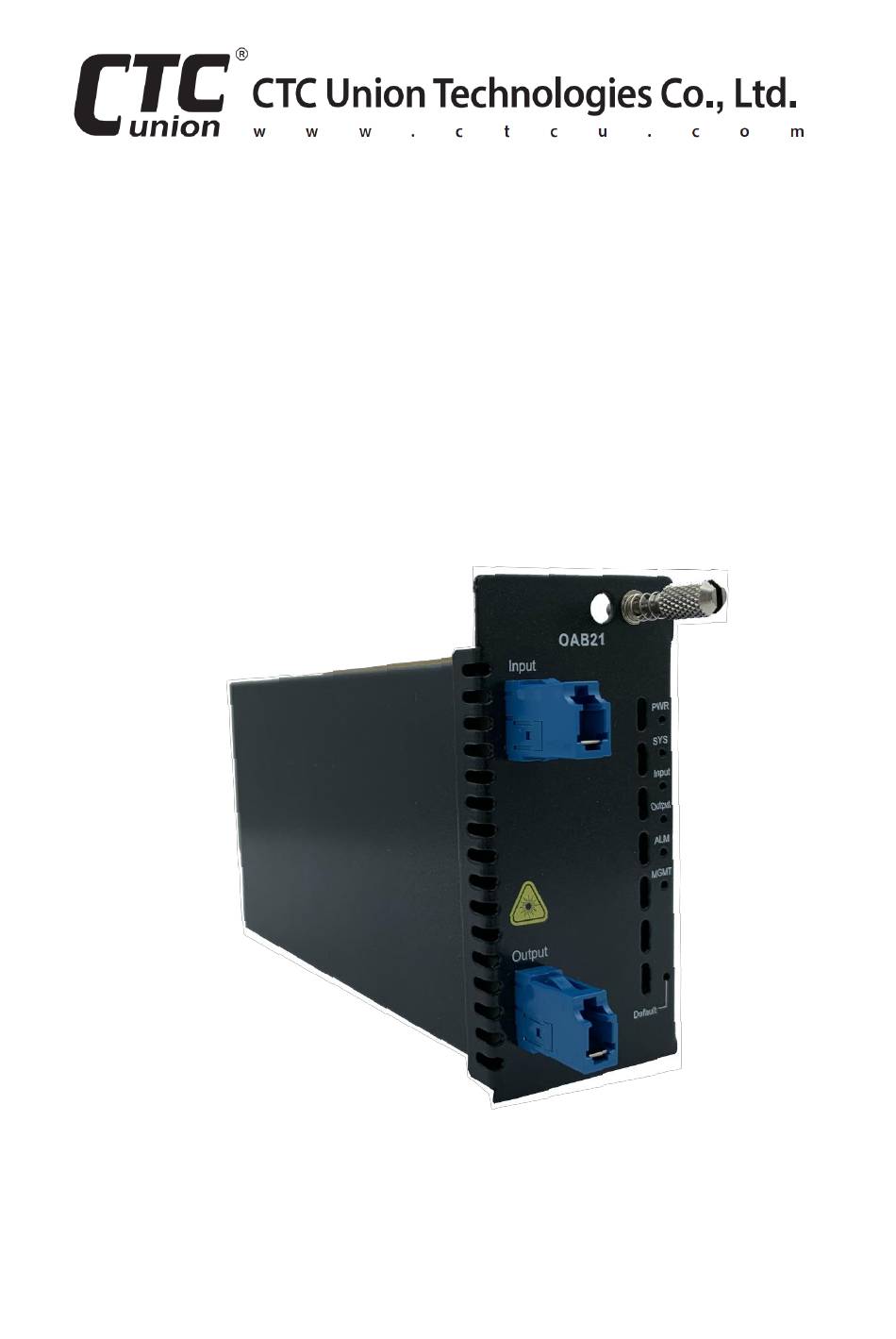

  • Page 1 User Guide FRM220-OAB21 Single Channel EDFA Booster sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.

  • Page 3: Table Of Contents

    Table of Contents Introduction .................. 4 Features ..................4 Specifications ................5 Management Features ..............5 Panel ..................... 6 Chassis Installation ..............6 LED Indicators ................7 Console Management ..............8 ....................8 ONSOLE ETTINGS ......................9 PERATION Upgrade Firmware ..............10 .............

  • Page 4: Introduction

    It features high input power, high output power, and medium optical gain and is designed to amplify aggregated optical input power for reach extension. The FRM220-OAB21 provides Automatic Gain Control (AGC) via rack management or RS-232 console interface.

  • Page 5: Specifications

    Power consumption 14W (Max.) Management Features When FRM220-OAB21 is placed in a stand-alone chassis with serial management port, this device also supports a text-based serial terminal with an easy-to-use menu system for configuration. When placed in a managed chassis, the card is configured and monitored through the chassis NMC (network management controller) via console, Telnet, Web HTTP or SNMP.

  • Page 6: Panel

    Panel Reference Table Description Optical input power connector Optical output power connector LED indicators Thumb screw Figure 1. Front Panel Chassis Installation Due to higher power requirements and greater heat dissipation, this transponder card can only be placed in the CH-02M, CH02-NMC, CH04A, CH08 or the full CH-20 chassis.

  • Page 7: Led Indicators

    LED Indicators Color Status Description Power is on. Device is active. Power Green Power is off. Blinking Device is disabled. System is ready. System is not ready. System Green Device is disabled. Blinking Firmware upgrading. Green Input power is normal. Input Input power is low or failed.

  • Page 8: Console Management

    Connect the serial cable to the CH02M's DB9. Run the terminal emulation program. With power on, press [ESC] or [Enter] to display the "Main Menu" screen. The following is an example. ***************************************** CTC Union Technologies Co. LTD. FRM220-OAB21 ***************************************** Ver:[1.100-1.000-0.000-0.000]...

  • Page 9: Operation

    The upper side of the console screen displays transceiver status. The bottom side of the console screen provides options to enable or disable the device and set up self-defined parameters for the transceivers. See below for detailed explanations of the provided options: Operation Select any of the menu items by keying in the menu item number or letter.

  • Page 10: Upgrade Firmware

    Upgrade Firmware Stand-alone Firmware Upgrading via Xmodem The FRM220-OAB21 card may be firmware upgraded using XMODEM when placed in the chassis such as CH02M. The user may use serial terminal such as a notebook computer that has an RS232 port or via a commonly available USB to RS232 adapter.
  • Page 11 3. Start upgrading new Firmware image. 4. Check the Firmware version after completing the Firmware upgrade process. **************************************** CTC UNION TECHNOLOGIES CO.,LTD FRM220-OAB21 **************************************** Ver:[1.100-1.001-0.000-0.000] [ CH-02M S2]...

  • Page 12: Firmware Upgrading Via Nmc Card

    Firmware Upgrading via NMC Card The FRM220-OAB21 card may be firmware upgraded when it is placed in the FRM220 with NMC management card. The user may use a local console connection to the NMC, a remote Telnet (IP) connection, or a Web based (HTTP) connection with any available browser.
  • Page 13 Date Manual Revision Version 2020/9/10 1.00 - Preliminary version...
