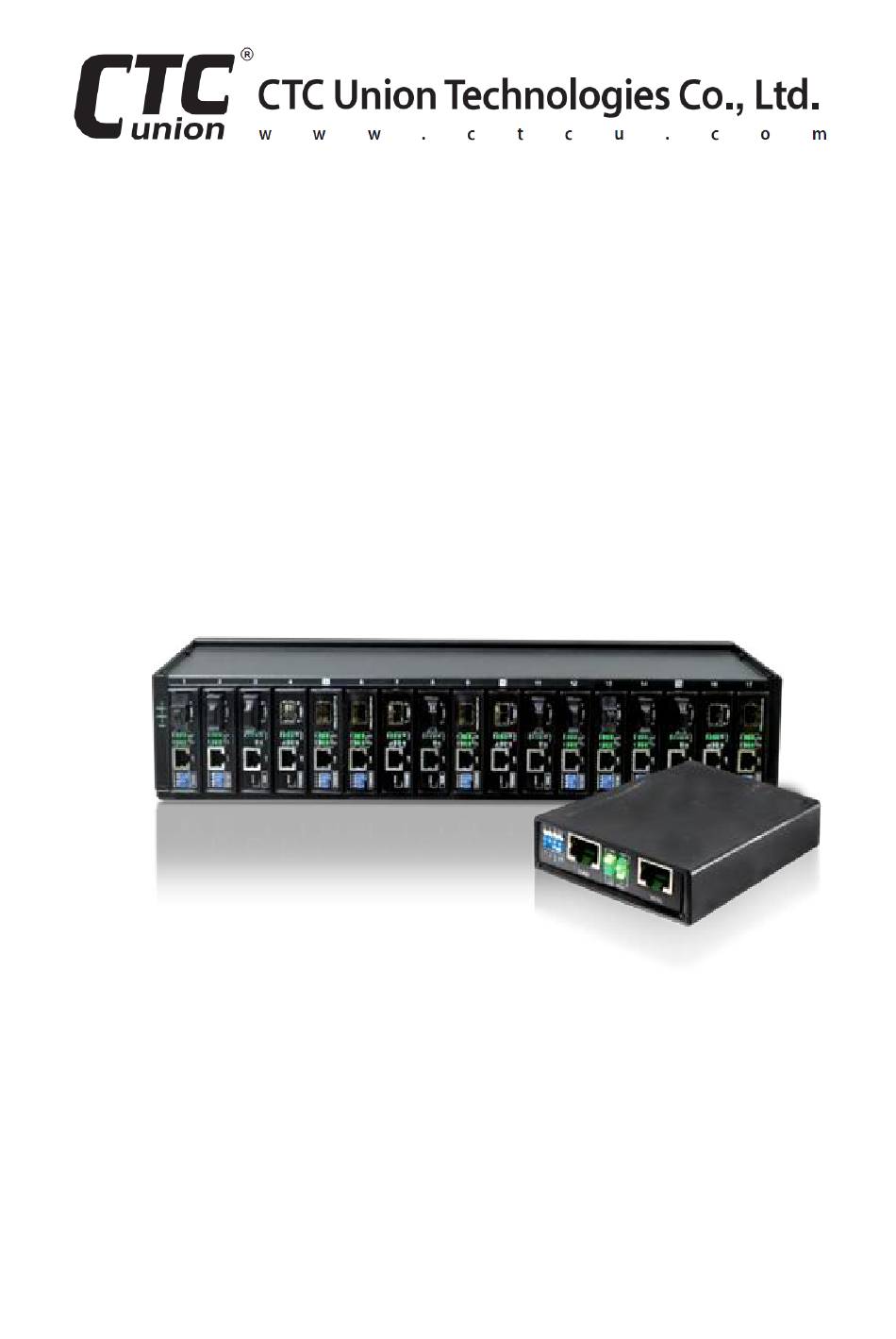

Quick Installation Guide
VDTU2-B110
VDSL2 LAN Extender
sales@ctcu.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VDTU2-B110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CTC Union VDTU2-B110

  • Page 1 Quick Installation Guide VDTU2-B110 VDSL2 LAN Extender sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
  • Page 3 Table of Contents Introduction .................. 4 Features ..................4 Specifications ................4 Panels ................... 6 DIP Switch..................7 LED Indicators for LAN ..............8 LED Indicators for VDSL2 ............8 Quick Installation ................. 9...
  • Page 4 Introduction VDTU2-B110 VDSL2 Ethernet Extender is a high-speed Ethernet Extender with one Ethernet RJ-45 port and one VDSL RJ45 port. It is a bridge mode modem, well accommodating VDSL2 (Very-high-data-rate Digital Subscriber Loop) technology to extend Ethernet service over single-pair phone line.
  • Page 5  LAN: ACT/LNK,10/100Mpbs, Half/Full Duplex  VDSL: Power On/Off, CO/CPE, Idle/Trained/Link Performance (AWG24 Wire) 17a Profile 30a Profile 600M 42/46 Mbps 600M 40/45 Mbps 1000M 18/13 Mbps 900M 22/19 Mbps 1500M 12/3 Mbps 1200M 16/7 Mbps 2000M 5/2 Mbps 1800M 8/2 Mbps Downstream/Upstream 2100M...
  • Page 6 Panels Figure 1. Front Panel Figure 2. Rear Panel Descriptions Dip Switch RJ-45 Connector for Ethernet LEDs for Ethernet LEDs for VDSL RJ-45 connector for VDSL 12VDC power jack...
  • Page 7 DIP Switch DIP 1 DIP 2 DIP 3 DIP 4 Side VDSL2 Profile Rate Limit Position Symmetric Asymmetric DIP 1 OT: LAN Extender acts as Central Office (CO) side. RT: LAN Extender acts as Customer Premise Equipment (CPE) side. DIP 2 30a: VDSL2 High Speed Mode.
  • Page 8 LED Indicators for LAN Status Color Blinking Green Activity Link Up Link Down Green Full Duplex Half Duplex Green 100Mbps 10Mbps LED Indicators for VDSL2 Status Color Blinking Device Device Green Power Power OFF Slow: Idle Fast: Training / Green Link Up Link Down Data...
  • Page 9 Quick Installation STEP 1: Set the LAN extender to CO mode or CPE mode from the DIP switch at the front panel. For Point to Point applications, one unit must be Master (CO mode) and the other one is Slave (CPE mode). STEP 2: Connect the LAN extender (CPE) with a regular Cat.
  • Page 10 Version Date Description 2020/2/3 Change A4 format to single page format.
