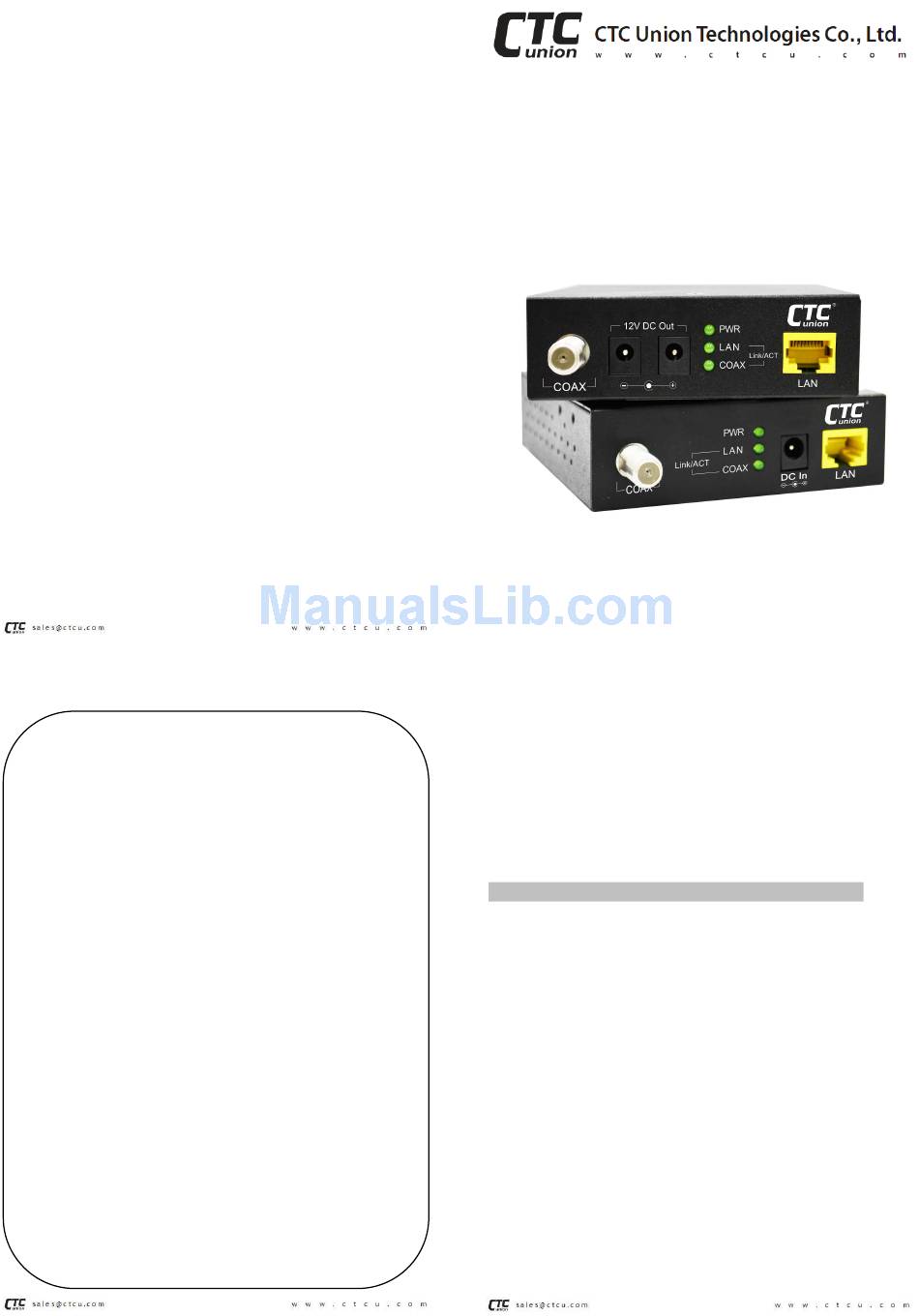

Description

EOC-101-P are a compact pair of Ethernet LAN
extenders, over traditional coaxial cable infrastructure,
that also supports remote power feeding and power
splitting along with high speed Ethernet transmission.
Power feeding eliminates the need for any extra power
line provisioning at the remote device.
The EOC-101-P is an excellent solution for remotely
connected IP cameras, WiFi access points, digital signage
and even low port count Ethernet switches. By eliminating
the need for expensive and sometimes prohibitive power
wiring at the remote, significant savings can be realized
while installation is made less complex. Just connect the
coaxial cable between devices, attach the LAN cables and
apply external power at the local side only.

Features

•
Avoid the additional expense of electrical contractors
•
Long transmission distance, up to 1.5Km
•
Remote power feeding and power splitting
•
Simultaneous transmission of data and power over coax
•
High transmission bandwidth supports 1080p/30fps IP-Cam
•
Supplies up to 12W (12V@1A) to remote device @1Km
•
Ethernet compliant with IEEE802.3 and 802.3u
•
Supports Auto MDI/MDI-X
•
Wall mounting brackets provided
•
Application include remote powering IP camera, Access
Point, embedded computer (sign board, digital signage)
•
Power, Ethernet link and coaxial link LED indicators
Notes:

User Guide

Ethernet Extender with Remote Power Feeding
•
EOC-101-P
•
includes EOC-101L-P (local unit) and
EOC-101R-P (remote unit)
sales@ctcu.com

Specifications

Standards IEEE802.3, IEEE802.3u, IEEE802.3x
Mode 10/100Base-T (auto-negotiation)
Connectors RJ-45x1 (LAN), F-Typex1 (Coaxial)
Power Adapter AC100~240 input, DC63V, 800mA output
Consumption 33W (max)
Remote output 12VDC x 2, 1A/12W total, @1000 meter
Performance
Distance (meters) 300 500 700 1000 1200 1500
Up stream (mbps) 76
Down stream (mbps) 90
Remote power (W) 18
Physical
Dimensions 95mm x 124mm x 30mm WxLxH
Weight 360 grams net (EOC-101L)
385 grams net (EOC-101R)
Environment
Operation 0 ~ 50°C (32~122°F), 20 ~ 95% RH
Storage -20 ~ 80°C (-4~176°F), < 95% RH

Compliance

EMI/EMC CE / FCC Part 15 class B
69 55 41 25 5
90 90 82 69 55
16 15 12 9.5 7.5
V1.0
