H-2895
TOUCHFREE
SOAP DISPENSER
IF tHErE Is nO HOlE In cOuntEr
1. Prior to drilling, examine below the counter to ensure
adequate clearance for the new unit.
2. Drill a 1" diameter hole in the countertop.
3. the hole can be drilled to either the right or left of the
faucet, ensuring adequate clearance for the counter
assembly.
4. clean the counter area where the new hole is located.
tOucHFrEE sOAP DIsPEnsEr InstAllAtIOn
PAGE 1 OF 3
1-800-295-5510
uline.com
instructions
1. remove the paper liner
from the bottom of the gasket.
1
3
4
(If the nut is hard to turn by hand, it is upside down.)
Hand-tighten the nut securely.

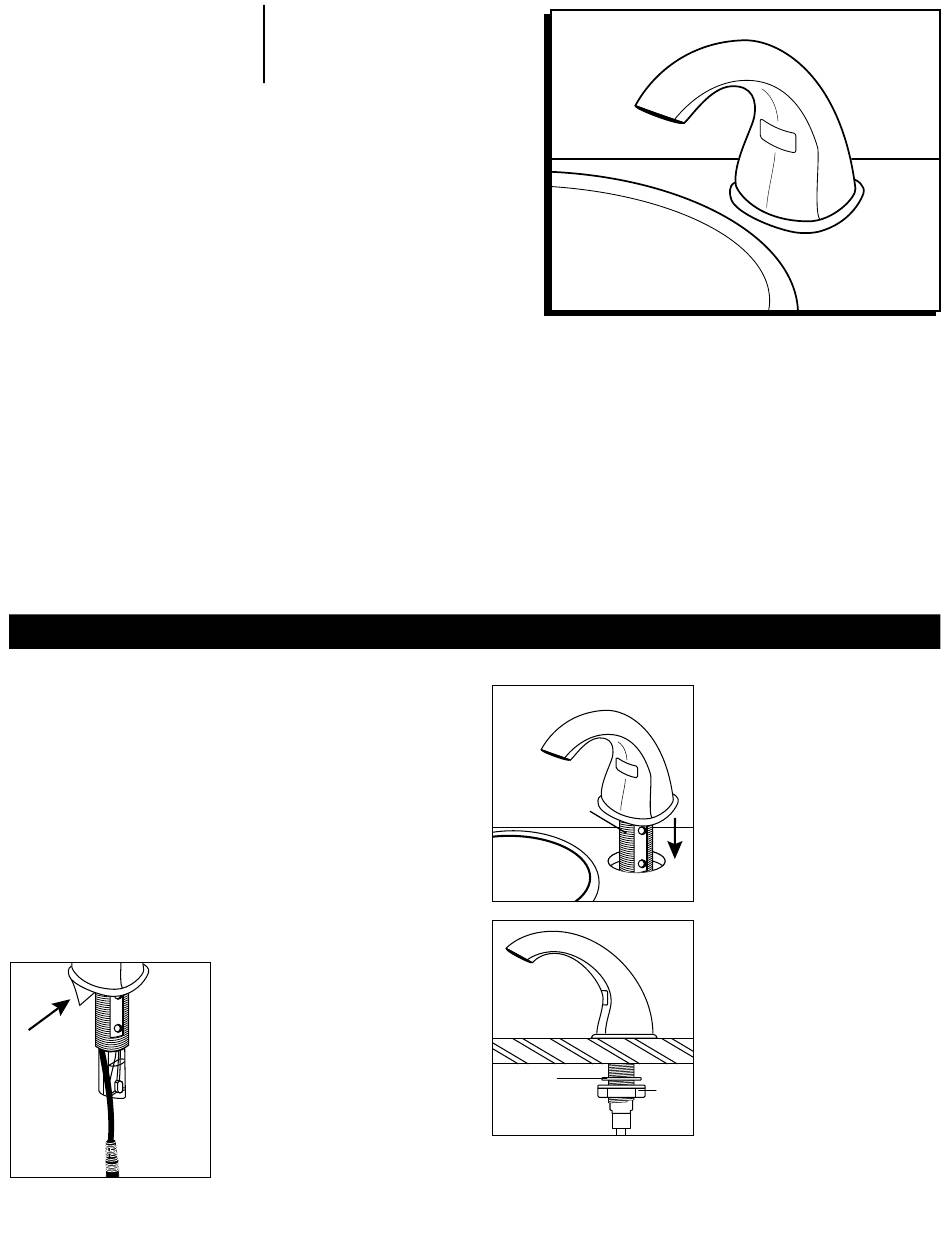

2. Feed the data cable and
the shank of the dispenser
assembly (1) through the
hole in the countertop. Point
the spout of the dispenser
into the sink bowl and press
down firmly on the dispenser
to securely attach it to the
countertop.
3. From underneath the
counter, first feed the lock
washer (3) and then the
mounting nut (4) over the
data cable and onto the
threaded shank of the
dispenser assembly. Be sure
that the "teeth" on the washer
will touch the bottom of the
counter top and that the nut
threads easily onto the shank.
0814 IH-2895
