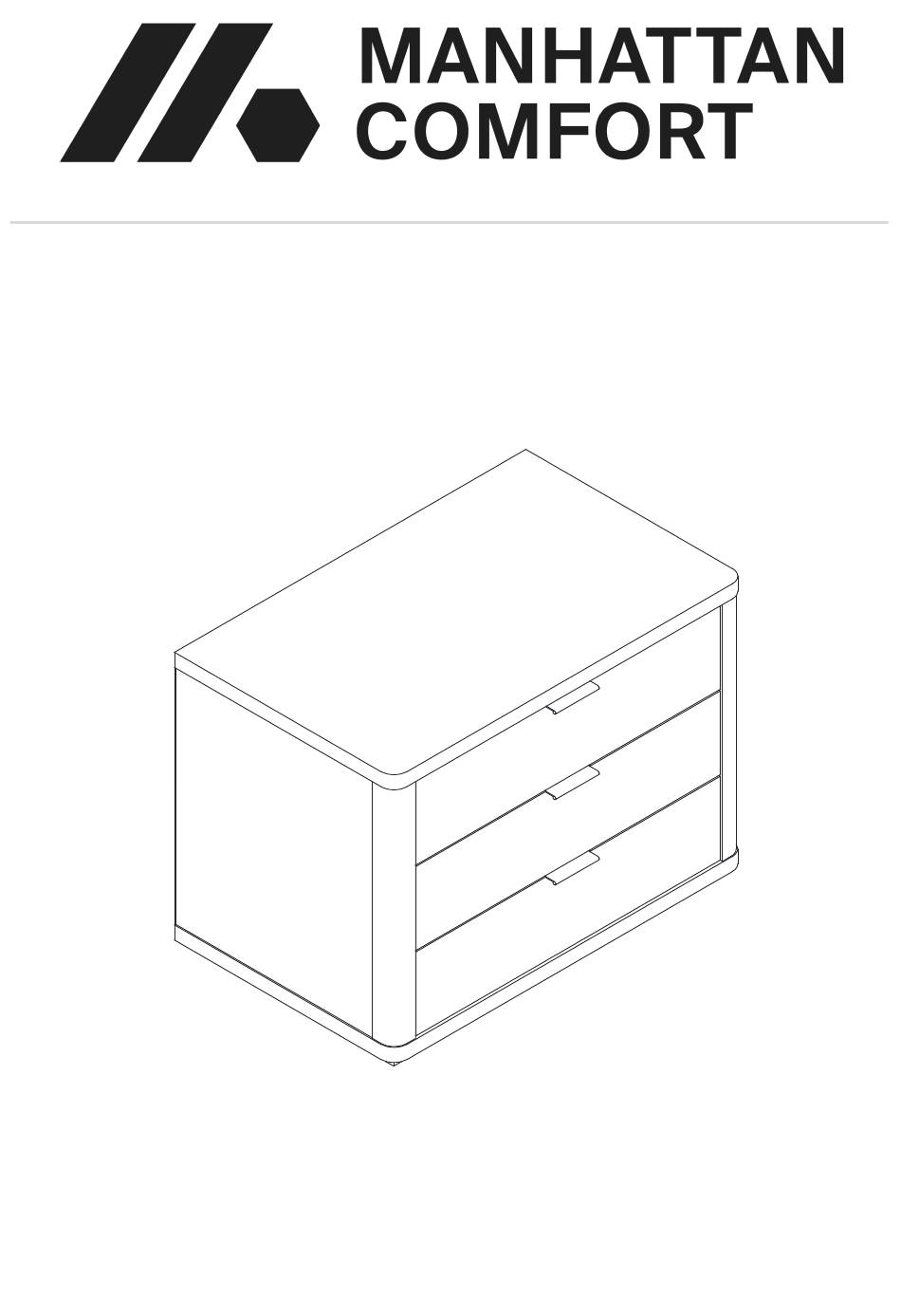

  • Page 1 NS014 V.05122024...

  • Page 2: For Best Results

    • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. • Proper assembly requires two people. TOOLS REQUIRED Support Site View our assembly video online: WWW.MANHATTANCOMFORT.COM Stuck? Question? We are here to help. tel: 908-888-0818 e-mail: help@manhattancomfort.com Page 2 NS014...

  • Page 3: Included In This Package

    D: RIGHT END (1) E: FRONT MOLDING (2) F: BACK BOARD (2) G: SUPPORTING RAIL (6) H: DRAWER FRONT (3) J: LEFT DRAWER SIDE (3) K: RIGHT DRAWER SIDE (3) L: DRAWER BACK (3) M: DRAWER BOTTOM (3) Page 3 NS014...

  • Page 4: Hardware Identification

    Hardware Identifi cation Page 4 NS014...
  • Page 5 Page 5 NS014...
  • Page 6 Step 1 ◆ Fasten the twenty-four CAM SCREW (3) to the TOP (A), DRAWER FRONT (H) and the FRONT MOLDING (E). Page 6 NS014...
  • Page 7 Step 2 ◆ Insert the twenty-four HIDDEN CAM (4) to the ENDS (C and D) and the DRAWER SIDES (J and K). Page 7 NS014...
  • Page 8 Step 3 Fasten the FRONT MOLDING (E) to the LEFT END (C) and the RIGHT END (D) by fasten the HIDDEN CAM (4). ◆ Page 8 NS014...
  • Page 9 Step 4 Fasten the SUPPORTING RAIL (G) to the LEFT END (C) and the RIGHT END (D) ◆ by using eighteen PAN HEAD SCREW (8). Page 9 NS014...
  • Page 10 Turn a SCREW into this hole. NOTE: The EXTENSION SLIDES will be used later for the DRAWERS. ◆ Fasten the EXTENSION RAIL (1) to the SUPPORTING RAIL (G) by using eighteen FLAT HEAD SCREW (10). Open end Open end Page 10 NS014...
  • Page 11 Step 6 Insert four WOOD DOWEL (7) to the TOP (A). Attach the LEFT END (C) and ◆ the RIGHT END (D) to the TOP (A) by fasten the HIDDEN CAM (4). Page 11 NS014...
  • Page 12 Step 7 Insert four WOODEN DOWL (7) to the ENDS(C and D). Attach the BOTTOM (B) to ENDS (C and D) ◆ by using six PEN HEAD SCREW (8). Page 12 NS014...
  • Page 13 Step 8 ◆ Fasten the BACK BOARD (F) to the unit by using sixteen PEN HEAD SCREW (9). Page 13 NS014...
  • Page 14 PEN HEAD SCREW (8). Repeat the same on the other drawers. ◆ Insert the DRAWER BOTTOM (M) to the DRAWER SIDES (J and K) and the DRAWER BACK (L). Repeat the same on the other drawers. Page 14 NS014...
  • Page 15 Attach the DRAWER FRONT (H) to the DRAWER SIDES (J and K) by fasten the HIDDEN CAM (4). ◆ Repeat the same on the other drawers. ◆ Fasten the PULL (6) to DRAWER FRONT (H) by using two FLAT HEAD SCREW (10). Repeat the same on the other drawers. Page 15 NS014...
  • Page 16 Step 11 ◆ Fasten the EXTENSION SLIDES (2) to the DRAWER SIDES (J and K) by using six FLAT HEAD SCREW (10). Repeat the same on the other drawers. Page 16 NS014...
  • Page 17 Step 12 ◆ Insert the drawers to the unit as shown. Page 17 NS014...
  • Page 18 Step 13 ◆ Peel the applique from the APPLIQUE CARD (5) and stick one onto each visible HIDDEN CAM. Page 18 NS014...

  • Page 19: Warranty Policy

    WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada.
