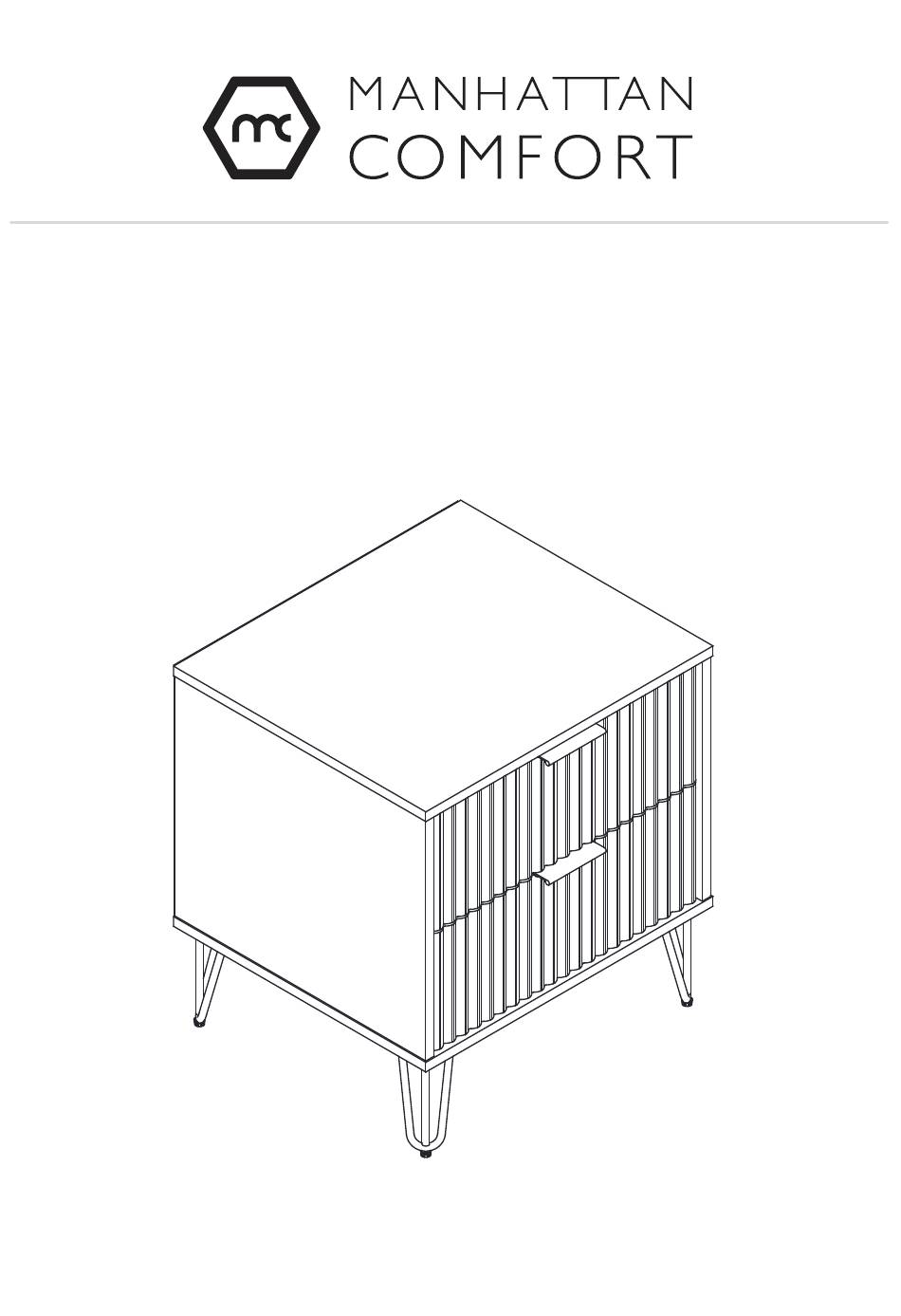

- Page 1 NS002 V.06012024...
-
Page 2: For Best Results
• Assemble item on a soft surface, such as cardboard or carpet, to protect finish. • Proper assembly requires two people. Support Site View our assembly video online: WWW.MANHATTANCOMFORT.COM Stuck? Question? We are here to help. tel: 908-888-0818 e-mail: help@manhattancomfort.com Page 2 NS002... -
Page 3: Included In This Package
B: BOTTOM (1) C: LEFT END (1) D: RIGHT END (1) E: BACK (1) F: DRAWER FRONT (2) O: DRAWER SIDE LEFT (2) P: DRAWER SIDE RIGHT (2) J: DRAWER BACK (2) K: DRAWER BOTTOM (2) L: LEG (4) Page 3 NS002... -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 NS002... - Page 5 Page 5 NS002...
- Page 6 Step 1 Insert four WOOD DOWELS (3) to the BOTTOM (B). ◆ Attach the BOTTOM (B) to the ENDS ( C and D), fasten the BOTTOM (B) by using four BOLTS (1). ◆ Page 6 NS002...
- Page 7 Step 2 ◆ Insert four WOOD DOWELS (3) to the TOP (A). Attach the TOP (A) to the ENDS (C and D), tighten four PLASTIC CAM LOCKS. ◆ Page 7 NS002...
- Page 8 Fasten the BACK (E) to the TOP (A), ENDS (C and D) and the BOTTOM (B) by using ten BOLTS (2). ◆ You should start each BOLT a few turns before completely tightening any of them. ◆ Page 8 NS002...
- Page 9 Step 4 ◆ Fasten the LEGS (L) to the BOTTOM (B) by using sixteen BOLTS (2). Page 9 NS002...
- Page 10 PLASTIC CONNECTIONS to the grooves. Repeat the same on the other drawer. Slide the DRAWER BOTTOM (K) into the grooves, in the DRWAER SIDES (P and O), ◆ and the DRAWER FRONT (F). Repeat the same on the other drawer. Page 10 NS002...
- Page 11 ◆ Fasten the DRAWER BACK (J) to the DRAWER SIDES ( P and O) by using four BOLTS (1). Repeat the same on the other drawer. ◆ Use two BOLTS (2) to fasten the PULL (4) to DRAWER FRONT (F). Repeat the same on the other drawer. Page 11 NS002...
- Page 12 ◆ The drawer should push in hard until it is all the way in , then it will slide in and out easier. Page 12 NS002...
-
