MANHATTAN
COMFORT
NS008
V.10102024

Advertisement

loading
Need help?

Need help?

Do you have a question about the NS008 and is the answer not in the manual?

Questions and answers

Summary of Contents for Manhattan Comfort NS008

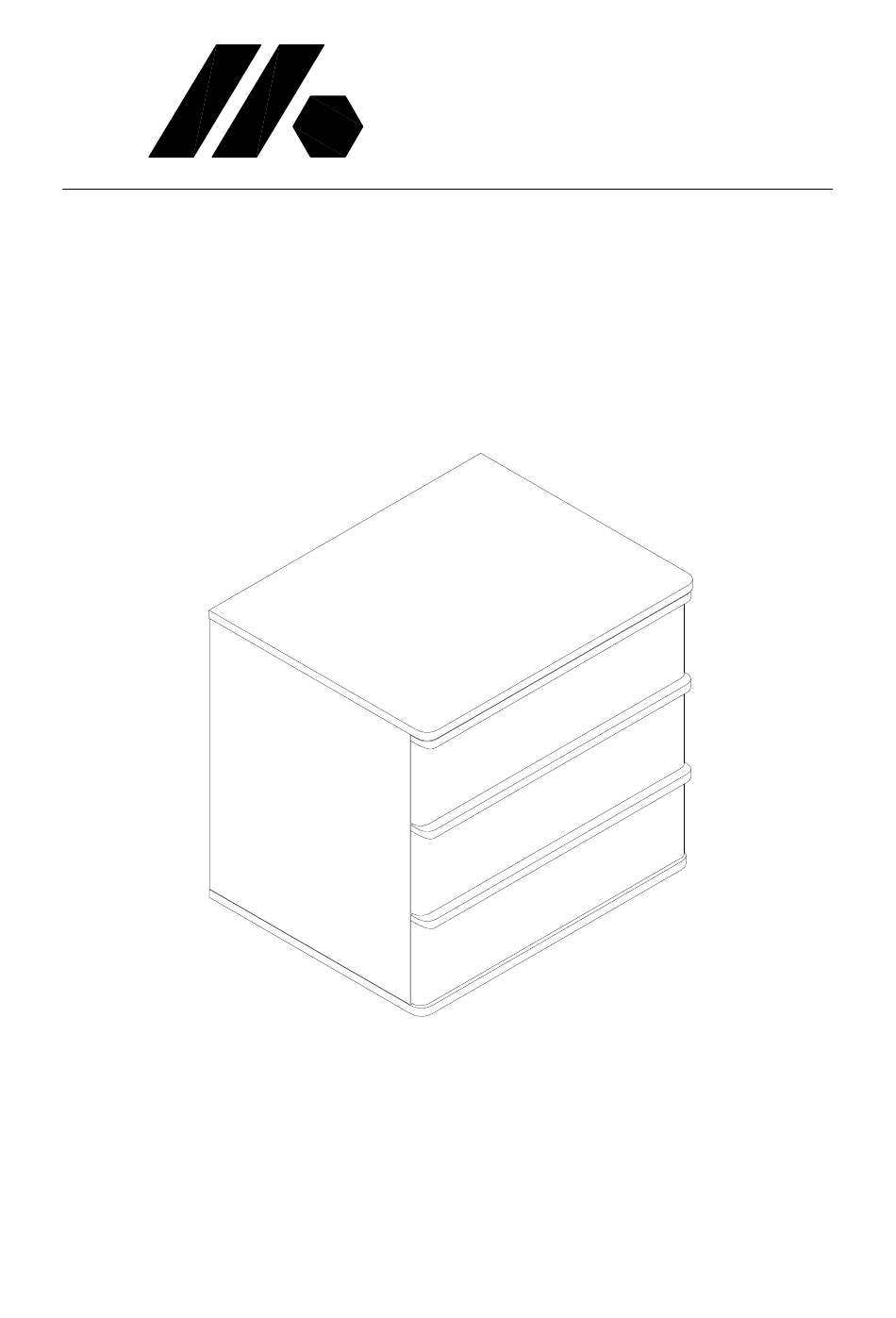

  • Page 1 MANHATTAN COMFORT NS008 V.10102024...
  • Page 3: Included In This Package

    F. BACK HORIZONTAL PANEL(1) G. FRONT HORIZONTAL PANEL (2) H. DRAWER FRONT PANEL (3) I. DRAWER SUPPORT PANEL (3) J. DRAWER LEFT PANEL (3) K. DRAWER RIGHT PANEL (3) L. DRAWER BACK PANEL (3) M. DRAWER BOTTOM PANEL (3) NS008 Page 3...
  • Page 4: Hardware Identification

    SCREW - 18pcs Ø8*30mm  Ø4*38mm LOCK - 1pc SCREW - 4pcs PLASTIC WEDGE - 8pcs Ø6*50mm SCREW - 8pcs STRAPS - 1pc SCREW - 1pc Ø3*17mm Ø4*18mm EVA PLATE - 4pcs PLASTIC - 1pc SCREW - 1pc Ø4*25mm Page 4 NS008...
  • Page 5 Page 5 NS008...
  • Page 6 Step 1: * Insert Eight KD BOLT (1) to the TOP PANEL(A), LEFT PANEL (C) and RIGHT PANEL(D). ( 8 PCS ) Page 6 NS008...
  • Page 7 * Attach the Two FRONT HORIZONTAL PANEL(G) to the LEFT PANEL(C) by the Two KD LARGE CAM (2) , Two  (3) and Two WOOD DOWEL (4) . ( 2 PCS ) ( 2 PCS ) ( 2 PCS ) Page 7 NS008...
  • Page 8 * Attach the RIGHT PANEL(D) to the Two FRONT HORIZONTAL PANEL(G) by the Two KD LARGE CAM (2) , Two  (3) and Two WOOD DOWEL (4) . ( 2 PCS ) ( 2 PCS ) ( 2 PCS ) Page 8 NS008...
  • Page 9 Step 4: * Attach the BOTTOM PANEL(B) to the LEFT PANEL(C) and RIGHT PANEL(D) by the Four Screw(7), Four WOOD DOWEL (4) and LOCK(8) . ( 4 PCS ) ( 4 PCS ) ( 1 PC ) NS008 Page 9...
  • Page 10 Step 5: * Insert the Two BACK PANEL(E) and BACK HORIZONTAL PANEL(F) to the stand. Page 10 NS008...
  • Page 11 Four KD LARGE CAM (2) , Four  (3) and Four WOOD DOWEL (4) . * Stick the Four EVA PLATE(15) to the BOTTOM PANEL(B). ( 4 PCS ) ( 4 PCS ) ( 4 PCS ) ( 4 PCS ) NS008 Page 11...
  • Page 12 Step 7: * Assemble the DRAWER BACK PANEL(L) to the DRAWER LEFT PANEL (J) and DRAWER RIGHT PANEL (K) by the SCREW (6) . ( 12 PCS ) Groove Page 12 NS008...
  • Page 13 Step 8: * Slide in the DRAWER BOTTOM PANEL (M). NS008 Page 13...
  • Page 14 Step 9: * Assemble the DRAWER SUPPORT PANEL (I) to the DRAWER TRAY by the SCREW (6) . ( 6 PCS ) Page 14 NS008...
  • Page 15 Step 10: * Insert Fifteen KD BOLT (1) to the Three DRAWER FRONT PANEL (H). ( 15 PCS ) NS008 Page 15...
  • Page 16 Step 11: * Assemble the Three DRAWER FRONT PANEL (H) to the DRAWER TRAY by the Fifteen KD SMALL CAM (5) and Fifteen  (3). ( 15 PCS ) ( 15 PCS ) Page 16 NS008...
  • Page 17 Step 12: *Input Three Drawer tray to the stand. NS008 Page 17...
  • Page 18 Step 13: * Insert Eight PLASTIC WEDGE(9) and Eight SCREW(10) to the Two BACK PANEL (E). ( 8 PCS ) ( 8 PCS ) Page 18 NS008...
  • Page 19 Step 14: * Attach anti-tipping straps to the back of the stand. ( 1 PC ) ( 1 PC ) NS008 Page 19...
  • Page 20 WALL ANCHOR. NOTE: You will need to turn the LONG SCREW multiple turns to completely tighten and secure your unit. Mark and drill ( 1 PC ) ( 1 PC ) a 3/8" hole into the wall stud. Page 20 NS008...
