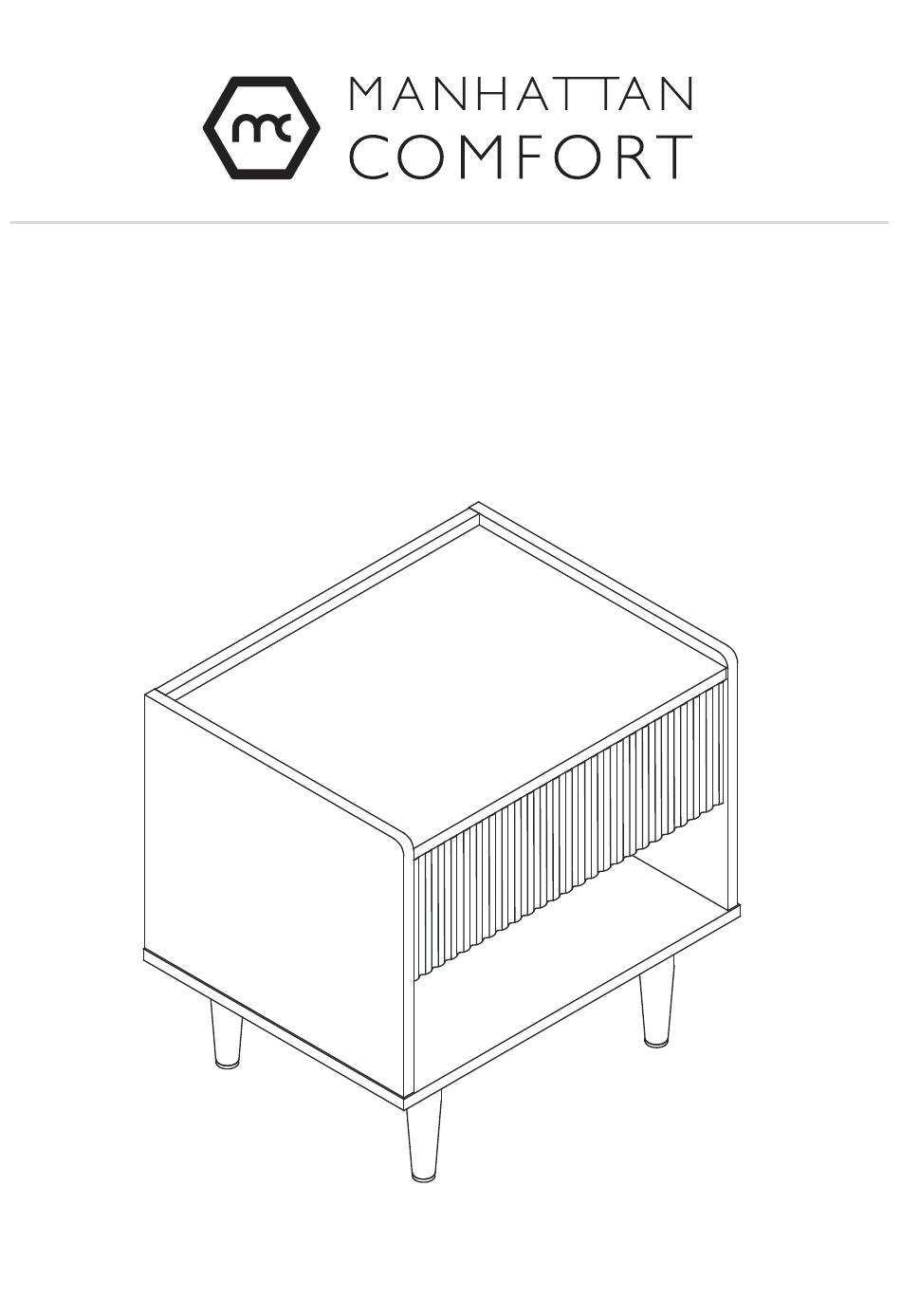

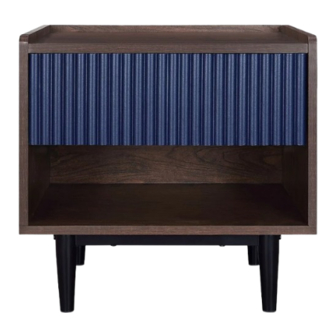

- Page 1 Duane Side Table NS-10GLF V.05112023...
-
Page 2: For Best Results
STOP! STOP! Before beginning the assembly process, ensure all boxes and parts have been delivered. FOR BEST RESULTS: • Do not throw away packaging materials until assembly is complete. • Assemble item on a soft surface, such as cardboard or carpet, to protect finish. •... -
Page 3: Included In This Package
Included in this package: A. TOP (1) B. BOTTOM (1) C. LEFT END (1) D. RIGHT END (1) E. BACK (1) F. LEG (2) G. BRACE (2) J. DRAWER FRONT (1) K. DRAWER LEFT SIDE (1) L. DRAWER RIGHT SIDE (1) H. -
Page 4: Hardware Identification
Hardware Identifi cation Page 4 NS-10GLF... -
Page 5: Warranty Policy
WARRANTY POLICY All Manhattan Comfort furniture products are warranted, to the original purchaser at the time of purchase and for a period of 30 days thereafter. Our warranty is limited to new products purchased in factory sealed cartons. This warranty is valid in the United States of America and Canada. - Page 6 Page 6 NS-10GLF...
- Page 7 Step 1 Assemble your unit on a carpeted floor or on the empty ◆ carton to avoid scratching your unit or the floor. Turn eight CAM SCREWS (3) into the ENDS (C and D) and the DRAWER FRONT (J). ◆ Fasten four L BRACKETS (8) to the ENDS (C and D).
- Page 8 Step 2 Push eight HIDDEN CAMS (4) into the BACK (E) and ◆ the DRAWER SIDES (L and K). Page 8 NS-10GLF...
- Page 9 Step 3 Separate the EXTENSION SLIDES (2) from the EXTENSION RAILS (1) as shown in the upper diagram below. ◆ Be prepared, the parts are greasy. Fasten four EXTENSION RAILS (1) to the ENDS (C and D). Use four FLAT HEAD SCREWS (14) ◆...
- Page 10 Step 4 ◆ Fasten the LEFT END (C) to the BACK (E). Tighten two HIDDEN CAMS. Page 10 NS-10GLF...
- Page 11 Step 5 Insert one WOOD DOWEL (6) into the LEFT END (C). ◆ Fasten the TOP (A) to the LEFT END (C). Use two PAN HEAD SCREWS (13). ◆ Page 11 NS-10GLF...
- Page 12 Step 6 ◆ Insert one WOOD DOWEL into the TOP (A). Fasten the RIGHT END (D) to the TOP (A) and the BACK (E). ◆ Use two PAN HEAD SCREWS (13) and tighten two HIDDEN CAMS. Page 12 NS-10GLF...
- Page 13 Step 7 Insert three WOOD DOWELS into the ENDS (C and D) and the BACK (E). ◆ Fasten the BOTTOM (B) to the ENDS (C and D) and the BACK (E). ◆ Use eight FLAT HEAD SCREWS (11) Page 13 NS-10GLF...
- Page 14 Step 8 Fasten the BRACES (G) to the LEGS (F). Tighten four ◆ HEX HEAD SCREWS (9) using the L-WRENCH (7). NOTE: You should start each SCREW a few turns before ◆ completely tightening any of them Surface Page 14 NS-10GLF...
- Page 15 Step 9 Fasten the LEGS (F) to the BOTTOM (B). Tighten eight ◆ HEX HEAD SCREWS (10) using the L-WRENCH (7). NOTE: You should start each SCREW a few turns ◆ before completely tightening any of them. Page 15 NS-10GLF...
- Page 16 Step 10 Fasten the DRAWER SIDES (L and K) to the ◆ DRAWER BACK (H). Use four PAN HEAD SCREWS (12). NOTE: You should start each SCREW a few turns before ◆ completely tightening any of them. Slide the DRAWER BOTTOM (N) into the grooves in the DRAWER SIDES (K and L) and ◆...
- Page 17 Step 11 Fasten the DRAWER FRONT (J) to the SMALL DRAWER SIDES (Kand L). ◆ Tighten four HIDDEN CAMS. Note : Be sure the DRAWER BOTTOM ◆ inserts into the DRAWER FRONT groove. Fasten two EXTENSION SLIDES (2) to the DRAWER SIDES (L and K). Use four FLAT HEAD ◆...
- Page 18 Step 12 To insert a drawer into your unit, line up the EXTENSION SLIDES on the drawer with the EXTENSION RAILS on the unit and push the drawer into the unit until the drawer is ◆ fully inserted. The drawer will push in hard until it is all the way in, then it will slide in and out easier.
- Page 19 Step 13 ◆ Peel APPLIQUES from the APPLIQUE CARDS (5) and stick them onto each visible HIDDEN CAM. Page 19 NS-10GLF...
