ray RAYSCAN OBJECT SCAN User Manual page 28

OBJECT SCAN 4 How to use RAYSCAN Object Scan
5
6
7
8
+

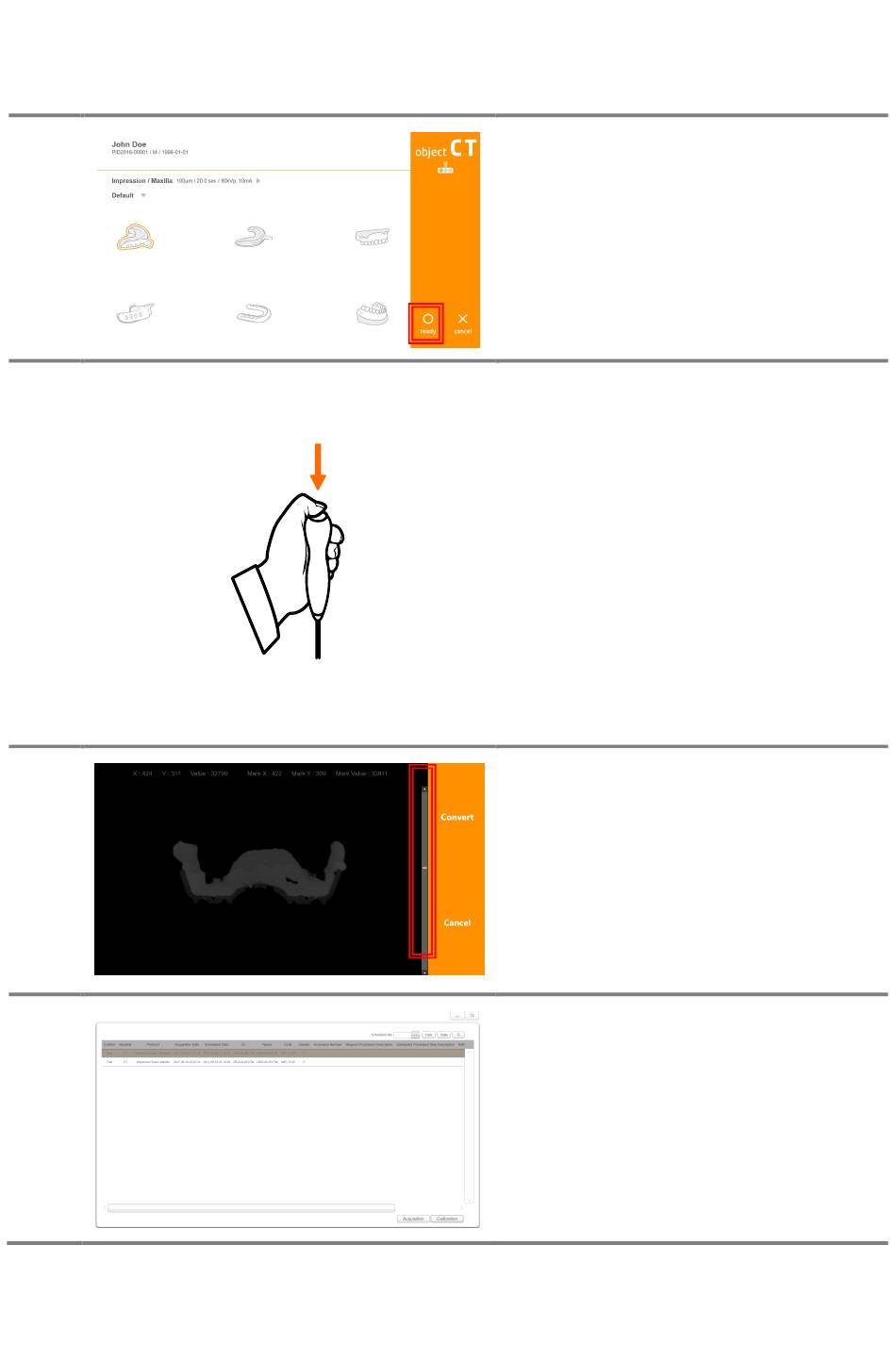

Click the [ready] button to prepare for
scanning.
After the green light on the exposure
switch has been illuminated, continue to
press the switch until scanning has been
completed.
Note: Take care not to release the button
during scanning as doing so will stop the
scanning process. Maintain audio and
visual contact with the patient and x-ray
unit during exposure. If the rotator stops
moving during exposure, or moves in an
erratic way, release the exposure button
immediately.
Use the scroll bar to move to the slice
that the most distinguished scan image,
then select the LB area and click the
[Convert] button.
When scanning is completed, the screen
returns to the initial screen.
28
