Summary of Contents for Rinnai EL 1000

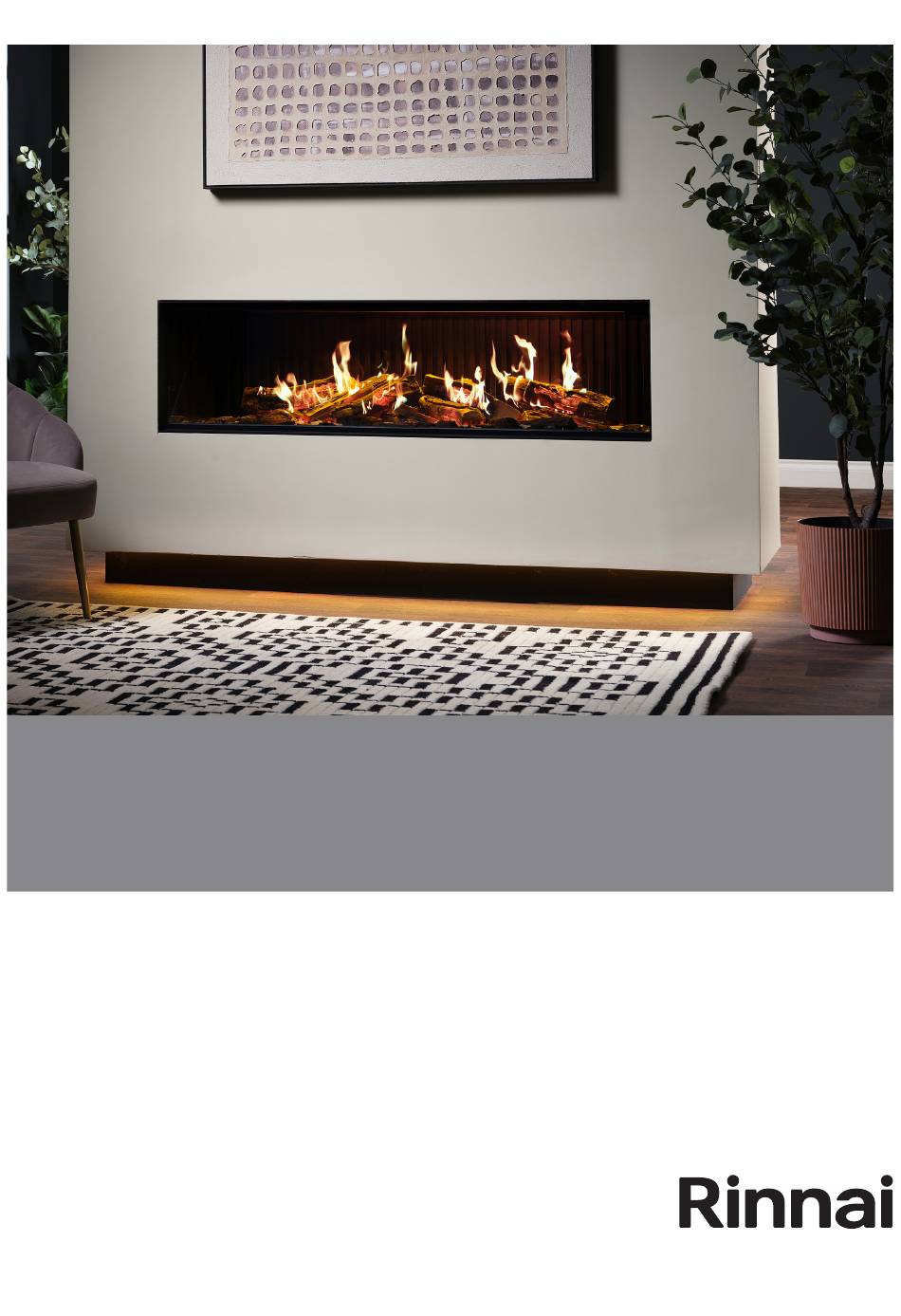

- Page 1 Electric Luxury Fire Series (EL 1000, EL 1500) Operation and Installation Guide...
- Page 2 For more information about buying, using, and servicing of Rinnai appliances call: 0800 RINNAI (0800 746 624). Rinnai New Zealand Limited 105 Pavilion Drive, Mangere, Auckland PO Box 53177, Auckland Airport, Auckland 2150...
-
Page 3: Table Of Contents
Appliance location ..........17 Enclosure..............18 Preparing the appliance........19 Installation type - aspect ........20 Installation ............21 Fuel bed setup - EL 1000 ........22 Fuel bed setup - EL 1500 ........26 Electrical ...............29 Check appliance operation ........32 Install wall linings ..........32 Warranty ...............33... -
Page 4: Warnings And Important Information
The cord and plug must not be modified. If the cord or plug are damaged, it must be replaced by genuine Rinnai replacement parts. The connection of the appliance to a permanent electrical supply (hard-wiring) and the installation of any other electrical wiring, power outlets, and switches must be performed by an authorised person, such as a licensed electrician. -
Page 5: Operation
Press repeatedly to cycle through the six fire preset modes (plus three user defined preset modes if programmed). The electric fire app is called the TUYA SMART APP. This is a third party app independent of Rinnai. For this app to run, the home’s internet router must be running on 2.4 GHz. -
Page 6: Remote Control
Remote control The remote control must be left in the same room as the appliance as it houses the thermostat that regulates the heat output. IMPORTANT House icon represents If the unit is on and no current room temperature buttons are selected the remote will default to When this icon is showing showing the current room... - Page 7 Standby Fuel bed downlight • Turns on the appliance to the last Repeatedly press to cycle through used settings without any heat. the fuel bed downlight colour menu. While in the fuel bed downlight menu, • Places the appliance into standby press the + or - buttons to increase or mode with all features turned off.
-
Page 8: Voice Control
‘Link to Google Assistant’ and follow the on-screen instructions to complete the pairing setup. Once paired the following voice commands can be used. <my fireplace> refers to the name set for the Rinnai appliance within the smart device settings. Google device... - Page 9 Alexa device Function Command Fireplace on/off Alexa, turn on/off <my fireplace> Flame on/off Alexa, turn on/off flame on <my fireplace> Flame mode Alexa, set flame mode on <my fireplace> to auto (auto/manual) Alexa, set flame mode on <my fireplace> to manual Heater on/off Alexa, turn on/off heater on <my fireplace>...
-
Page 10: Cleaning
Cleaning Always disconnect the appliance from the power supply and allow to cool before cleaning. IMPORTANT Your appliance needs very little maintenance, however it should be regularly cleaned using a dry cloth. Do not use detergents, abrasive cleaners or furniture polish. To clean the glass, use a damp cloth and ensure any moisture is dried fully using a lint free cloth. -
Page 11: Troubleshooting
Use the information below to help determine if a service call is required. If you are unsure about the way your unit is operating, or if you have any other faults or problems, please contact your installer or Rinnai (0800 746 624). Problem... -
Page 12: Ambient Light Kit
2 m extension cable (not illuminated) and a 2-way splitter This appliance can only be used with the Rinnai LED lighting kit. Other LED kits must not be used as they can damage the appliance and invalidate the warranty. -
Page 13: Installation
Installation Installation, servicing, repair, and removal shall be carried out only by authorised personnel. -
Page 14: Before Starting
NOT install any damaged items. If the mains power supply lead is damaged in any way, it MUST be replaced by a genuine Rinnai replacement part. Check all components have been supplied. Read these instructions to get an overview of the steps required before starting the installation. -
Page 15: Specification Summary
Can be conveniently controlled in four ways; manually on the appliance, with the remote control, through a smart device using wireless connectivity, and through voice control. Two models to choose from: EL 1000 and EL 1500. Suitable for indoor domestic applications only. Do not install near a wet area such as a bath, shower, or swimming pool. -
Page 16: Dimensions
1000 = 688 1500 = 898 Viewable glass dimensions EL 1500 1500 x 360 mm EL 1000 1000 x 360 mm EL 1000 / EL 1500 - three sided aspect 1000 / 1500 1038 / 1538 Viewable side glass 1000 = 688... -
Page 17: Appliance Location
Ensuring the 3-pin plug is accessible and increases to 350 mm. connected to a dedicated 230 V, 50 Hz, 10 A (EL 1000), 15 A (EL 1500), earthed power point supplied from mains electricity. Clearances to combustibles The minimum clearances shown MUST be maintained. -
Page 18: Enclosure
When building the frame factor the wall lining thickness to enable the lining edge to be fitted against the lips of the fire. If creating a recessed installation then non-combustible IMPORTANT linings above the fire must be used. Enclosure dimensions EL 1000 EL 1500 Width 1010 mm min. 1510 mm min. -
Page 19: Preparing The Appliance
Preparing the appliance Cover during installation to avoid any debris entering appliance During installation ensure the top vents of the fire are protected from any building debris or dust entering the appliance. Any debris entering the appliance will cause operational issues with the fan. Glass removal and accessing the parts To gain access to the various components required for installation follow the below steps to remove the glass panel on the front of the appliance. -
Page 20: Installation Type - Aspect
Installation type - aspect The appliance can be configured in three ways: • Front (one glass panel) • Corner (two glass panels) • Three-sided (three glass panels) Front The EL models will arrive in a single-sided (front only) aspect with the metal side panels already fitted. -
Page 21: Installation
Installation Acoustic cushioning During installation of the appliance onto a wooden frame or hardened surface, it is recommended to apply anti-vibration material such as self adhesive cushion foam tape to mitigate vibrational noise generated by the motors. The material should be strategically positioned on the unit’s support base, and at each point where the unit is supported—... -
Page 22: Fuel Bed Setup: El 1000
Fuel bed setup: EL 1000 The fuel bed components provided with the appliance must be installed in the exact locations and positions described in this guide. Failure to install the logs correctly will result in an impaired flame effect and the flames will appear to be hanging in mid-air. - Page 23 Position log AI-21 onto the stencil outline on the fuel bed, ensuring the pin underneath slots into the corresponding hole in the fuel bed. Then plug the cable into the fuel bed connector. Position log AI-23 onto the stencil outline on the fuel bed, ensuring the pin underneath slots into the corresponding hole in the fuel bed.
- Page 24 Position log P-10 onto the stencil outline on the fuel bed. Position log AI-29 and P-15 onto the stencil outline on the fuel bed, ensuring the pins underneath slot into the corresponding hole in the fuel bed. Then plug the AI-29 cable into the fuel bed connector. Position log AI-28 onto the stencil outline on the fuel bed, ensuring the pin underneath slots into the corresponding hole in the fuel bed.
- Page 25 Distribute the black glass embers around the entire fuel bed, placing them over the clear and black resin embers. You do not need to use all of the glass embers provided. At this stage it may be helpful to turn on the appliance to illuminate the fuel bed and review the coverage of the embers.
-
Page 26: Fuel Bed Setup: El 1500
Fuel bed setup: EL 1500 The fuel bed components provided with the appliance must be installed in the exact locations and positions described in this guide. Failure to install the logs correctly will result in an impaired flame effect and the flames will appear to be hanging in mid-air. IMPORTANT Experience has shown that the majority of performance problems are caused by burn media being installed incorrectly. - Page 27 Position log AI-9 onto the stencil outline on Position log AI-10 onto the stencil outline on the fuel bed, ensuring the pin underneath slots the fuel bed. into the corresponding hole in the fuel bed. Then, plug the cable into the fuel bed connector. Position log AI-11 onto the stencil outline on Position log AI-6 onto the stencil outline the fuel bed.
- Page 28 Distribute the clear resin embers around Distribute the black resin embers around the base of the logs, placing them inside the base of the logs, placing them inside the clear area of the fuel bed. Ensure good the black area of the fuel bed. Ensure good coverage, including areas underneath the coverage.
-
Page 29: Electrical
The unit needs to be connected to a dedicated 230 V, 10 A (EL 1000), 15 A (EL 1500) earthed power point. Once connected secure the power cord in place using the securing bracket and ST4*8 screw provided. - Page 30 Wiring diagram EL 1000 2 kW 30 | Electric EL fires...
- Page 31 Wiring diagram EL 1500 3 kW Electric EL fires | 31...
-
Page 32: Check Appliance Operation
There is a 14 mm trim option that can be fitted after the wall lining has been installed to ensure a smooth look finish, codes: • EL 1000: R2650 • EL 1500: R2651 Trims cannot be installed if the installation has a hearth as the trim extends down below the fire. -
Page 33: Limited Warranty
All terms of the warranty, subject to the conditions below, are effective from the date of first purchase from an authorised Rinnai dealer and/or date of first installation, which can be found on the electrical compliance certificate left by the installer. Proof of purchase will be required at the time of any warranty claim. -
Page 34: Warranty Exclusions
7. Cost of building work to access parts that need repair or replacement, or the costs of building repairs afterwards. 8. Subjective issues such as noise or smell that Rinnai have investigated and are established to be within normal operating parameters. -
Page 35: Purchase Details
Retailer: Retailer address: Date of purchase: Product details: Register your unit online: www.rinnai.co.nz/register/ for service reminders, product updates, and special offers. You can unsubscribe at any time. Please keep these details in a safe place for future reference. Installer details... - Page 36 Rinnai.co.nz Tel: 0800 746 624 http://www.youtube.com/rinnainz http://facebook.com/rinnainz Rinnai Electric EL Fires operation & installation guide 15348-A...
