Variscite VAR-SOM-MX91 Quick Start Manual

VAR-SOM-MX91 based on NXP i.MX 91
Evaluation Kit Quick Start Guide
12
11
10
9

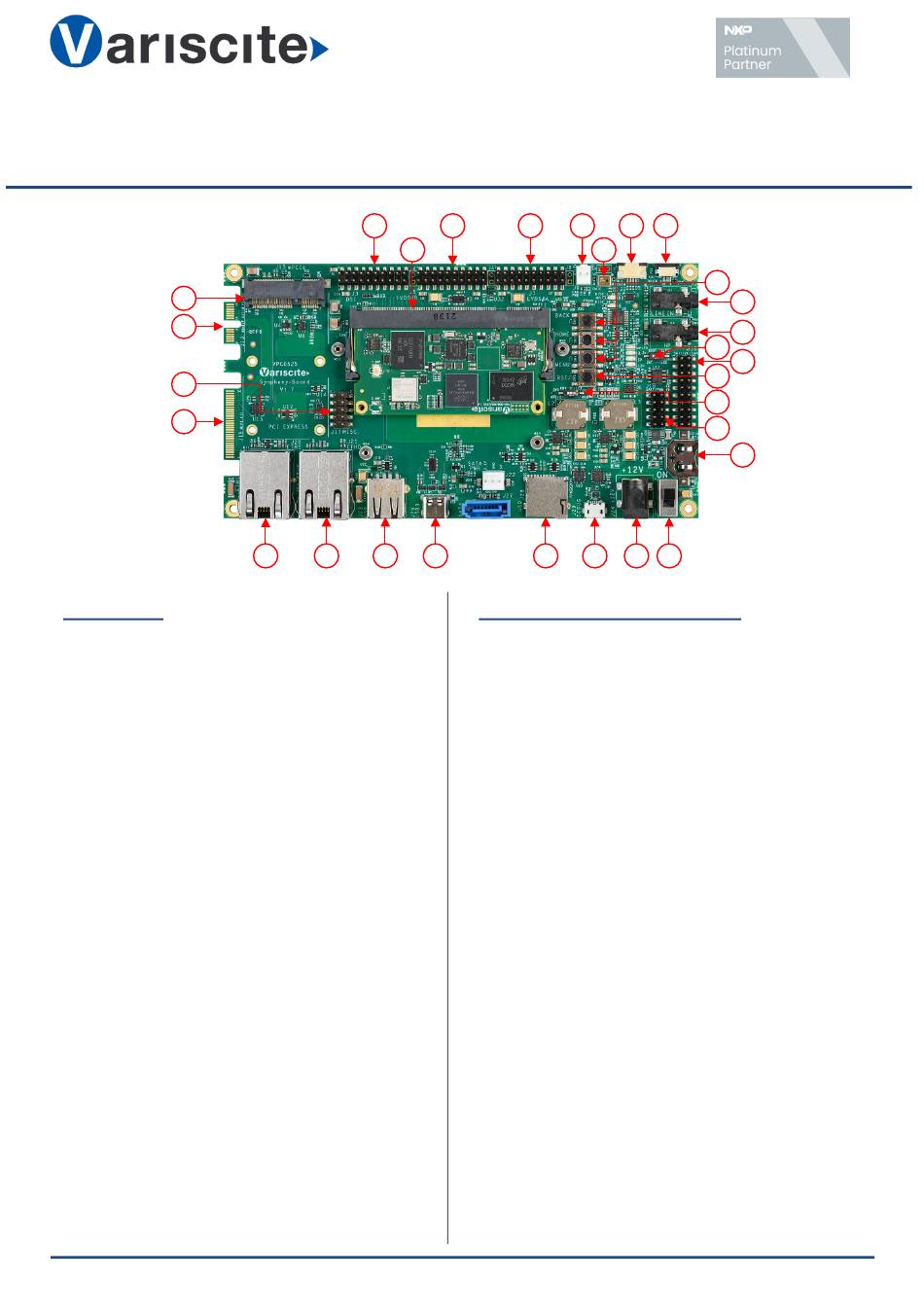

Features:
1. Power ON Switch (SW7)
2. 12V DC In Jack (J24)
3. USB Debug (J29)
4. micro-SD Card slot (J28)
5. USB 3.0 OTG (J26)
6. USB 2.0 Host (J23)
7. Gigabit Ethernet #0 (J21)
8. Gigabit Ethernet #1 (J20)
9. MIPI-CSI #1 Camera connector [optional] (J19)
10. Miscellaneous Header #1 (J17)
11. HDMI/ MIPI-CSI #2 Camera connector [not in
use] (J13)
12. Mini PCI Express Connector [not in use] (J15)
13. Miscellaneous Header #2 (J3)
14. SOM Connector (J1)
15. LVDS#B Header [not in use] (J5)
16. LVDS#A/ DSI Header [not in use] (J7)
17. Fan Power Connector (J9)
18. Digital Microphone (U1)
19. Resistive Touch (J10)
20. Capacitive Touch (J11)
21. User Buttons (SW1, SW2, SW4)
22. Line-In Connector (J12)
23. Headphones Connector (J14)
24. Boot Select Switch (SW3)
25. SAI/I2C/SPI/CAN Header (J16)
26. Reset Button (SW5)
27. PWR Select Switch (SW6)
28. UART/PWM Header (J18)
29. RTC Battery Holder (JBT1)
13
14
8 7 6 5
15 16 17
18
4 3
Evaluation kit initial setup
Plug the USB type A to micro-B cable between the
USB debug connector (J29) and a PC USB port.
