Variscite VAR-SOM-6UL Quick Start Manual

VAR-SOM-6UL based on NXP i.MX 6UltraLite/ ULL
Evaluation Kit Quick Start Guide

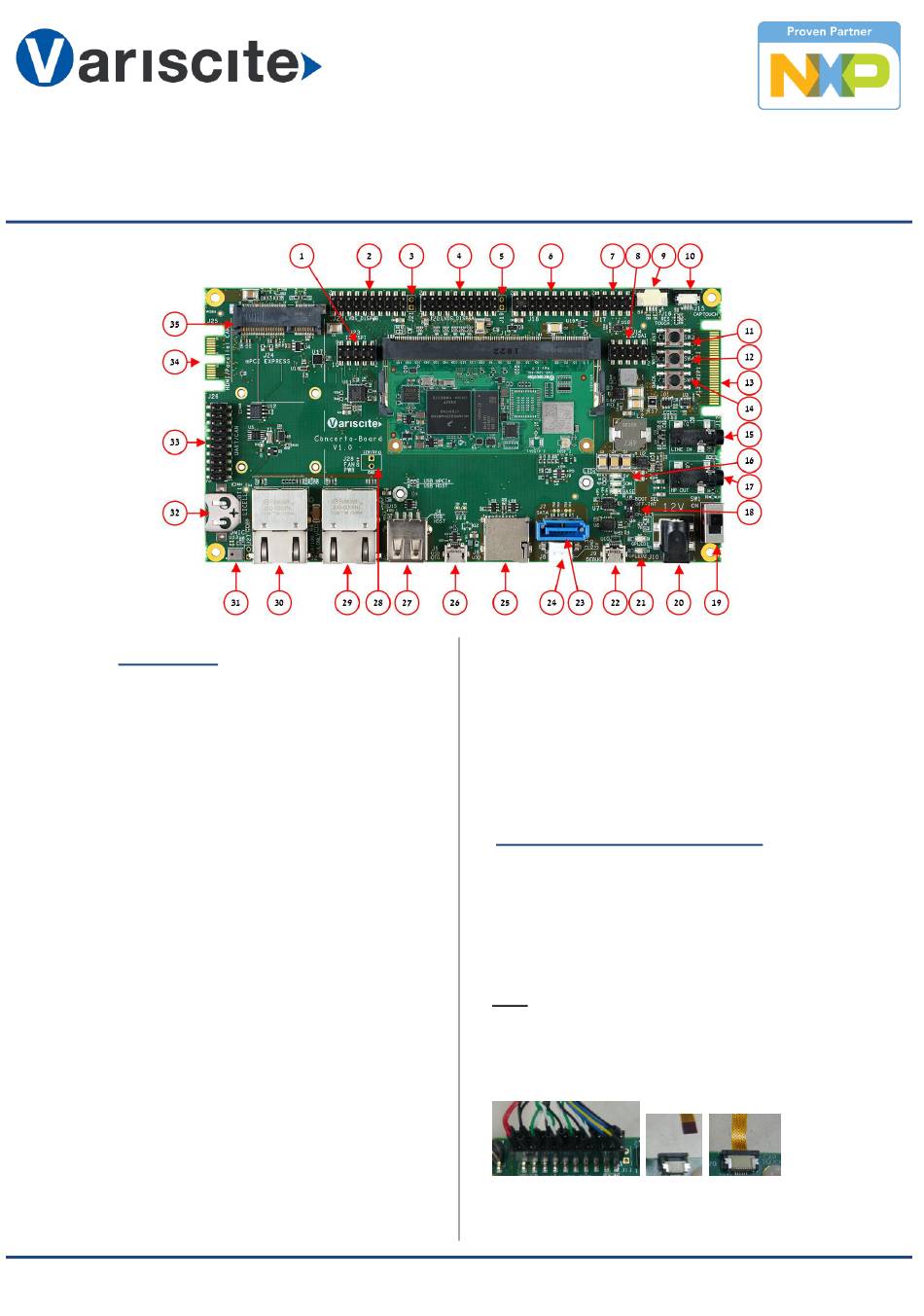

Features:
1. I2C/SPI Header (J23)
2. LVDS B Header (J22)
th
3. LVDS B 4 Line Header (J21)
4. LVDS A Header (J20)
th
5. LVDS A 4 Line Header (J19)
6. DSI/SPI/QSPI Header (J18)
7. Analog Signal Header (J17)
8. I2C/SAI Header(J14)
9. Resistive Touch Connector (J16)
10. Capacitive Touch Connector (J15)
11. Reset Button (SW3)
12. Wake Up Button (SW4)
13. MIPI-CSI2 Camera Connector (J13)
14. Back Button (SW5)
15. Line-In Connector (J12)
16. Power Indication LEDs (D1, D2, D4)
17. HP Out Connector (J11)
18. Boot Select Switch (SW2)
19. Main Power-On Switch (SW1)
20. 12VDC Power Input Jack (J10)
21. General Purpose LEDs (D21, D23)
22. Debug connector (J9)
23. SATA Connector (J7)
24. SATA Power Connector (J8)
25. µSD-Card Connector (J6)
26. OSB OTG Connector (J5)
27. USB Host Connector (J4)
28. Fan Power Connection (J28)
29. Ethernet 2 Connector (J3)
30. Ethernet 1 Connector (J2)
31. DMIC (U13)
32. RTC Lithium Cell Connector (JBT1)
33. UART/CAN Connector (J26)
34. HDMI/Camera Connector (J25)
35. Mini-PCIe Connector (J24)
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
Concerto-Board from the package.
2. Connect the 7" LCD Display and Touch cables to
the Evaluation Kit connectors J15, J20
respectively.
Note:
Display cable – connect the cable with the red wire
on pin 1.
Touch cable – connect the cable with the metal
contacts facing down.
3. Plug the USB type A to micro B cable between the
USB debug connector (J9) and a PC USB port.
