Variscite VAR-DVK-AM33 Quick Start Manual

DART-6UL based on NXP/Freescale i.MX6 UltraLite
Evaluation Kit Quick Start Guide

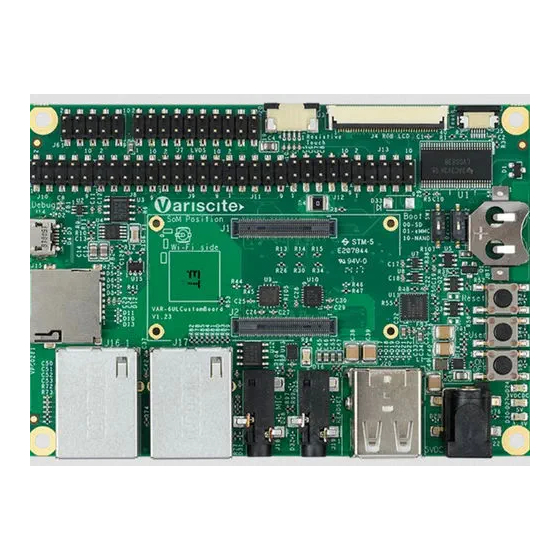

9
8
7

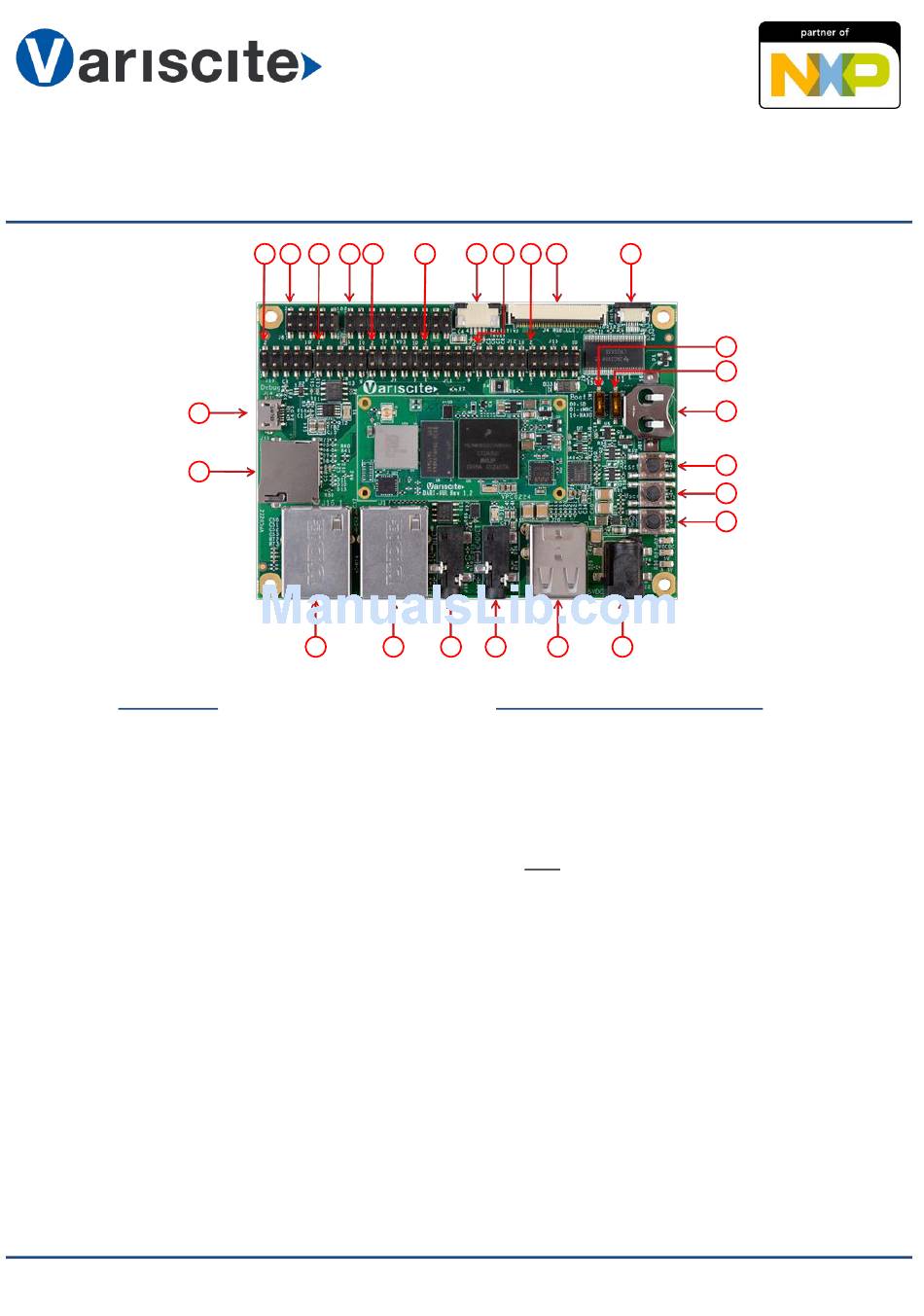

Features:
1. 5V DC In Jack (J22)
2. Dual USB Host Connector (J20)
3. Headset (J19)
4. Line In (J18)
5. 10/100 Mbps Ethernet #2 (J17)
6. 10/100 Mbps Ethernet #1 (J16)
7. micro SD Card slot (J15)
8. USB Debug (J14)
9. Expansion Header (J10)
10. Expansion Header (J6)
11. Expansion Header (J8)
12. LVDS Header (J7)
13. Expansion Header (J9)
14. Expansion Header (J11)
15. Resistive Touch (J3)
16. Expansion Header (J12)
17. Expansion Header (J13)
18. LCD Connector (J4)
19. Capacitive Touch (J5)
20. Boot select switch #1 (SW1)
21. Boot select switch #2 (SW2)
22. RTC Battery Holder (JBT1)
23. Reset Button (SW3)
24. User Button (SW4)
25. On/Off Button (SW5)
10 11 12 13 14
6 5 4
15 16 17 18 19
3 2 1
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and VAR-
6ULCustomBoard board from the package.
2. Connect the 7" LCD Display and Touch
cables to the Evaluation Kit connectors J4, J5
respectively.
Note:
Display cable – connect cable with metal
contacts facing up.
Touch cable – connect cable with metal
contacts facing down.
3. Plug the USB type A to micro B cable between
the USB debug connector (J14) and a PC USB
port.
