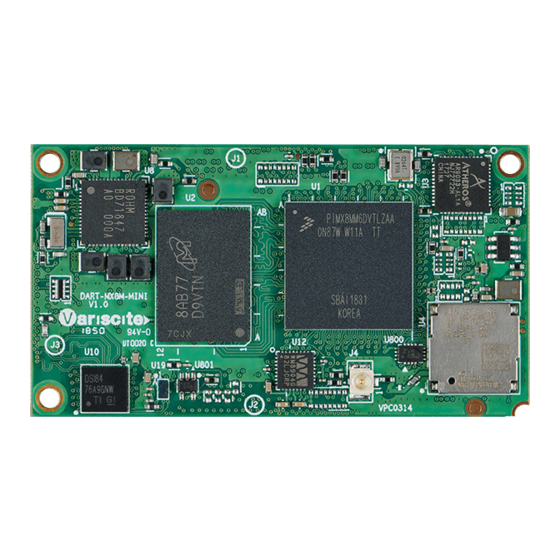

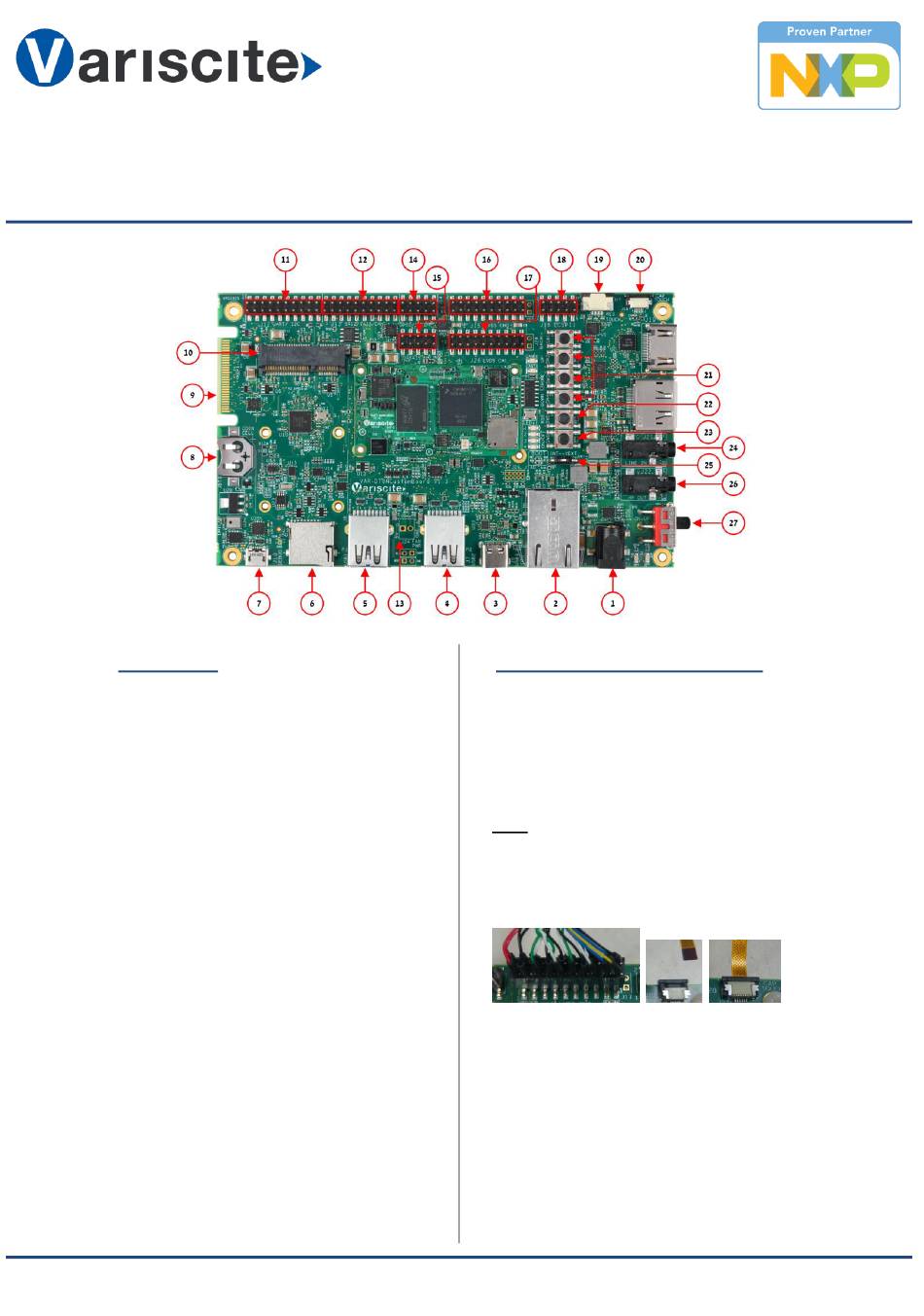

DART-MX8M-MINI based on NXP i.MX8M Mini
Evaluation Kit Quick Start Guide
Features:
1.
5V PWR IN (J4)
2.
Gigabit Ethernet (J5)
3.
USB 2.0 OTG (J6)
4.
USB 2.0 Host P2(J7)
5.
USB 2.0 Host P1(J8)
6.
SD-MMC (J9)
7.
USB Debug (J10)
8.
RTC BAT. Slot (JBT1)
9.
Single MIPI-CSI (J11)
10.
Mini PCIe #1 (J23)
11.
UART, I2C (J12)
12.
SAI2, SAI5, PDM (J13)
13.
FAN 5V (J24)
14.
GPIO, SPDIF (J14)
15.
SAI1 (J25)
16.
LVDS CH0 (J15)
17.
LVDS CH1 (J26)
18.
ECSPI, Host wake (J16)
19.
Resistive Touch (J17)
20.
Capacitive Touch (J18)
21.
User Buttons (SW1-TOP: SW4-BOT)
22.
Reset Button (SW5)
23.
ON/OFF Button (SW6)
24.
Line In (J21)
25.
Boot Select Switch (SW7)
26.
Headphones (J22)
27.
Power ON (SW8)
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
VAR-DT8MCustomBoard from the package.
2. Connect the 7" LCD Display and Touch cables to
the Evaluation Kit connectors J15, J18
respectively.
Note:
Display cable – connect the cable with the red wire
on pin 1.
Touch cable – connect the cable with the metal
contacts facing down.
3. Plug the USB type A to micro B cable between the
USB debug connector (J10) and a PC USB port.
