Variscite VAR-DVK-AM33 Quick Start Manual

12 13 14 15 16 17
11
10
9
8
7
6 5 4

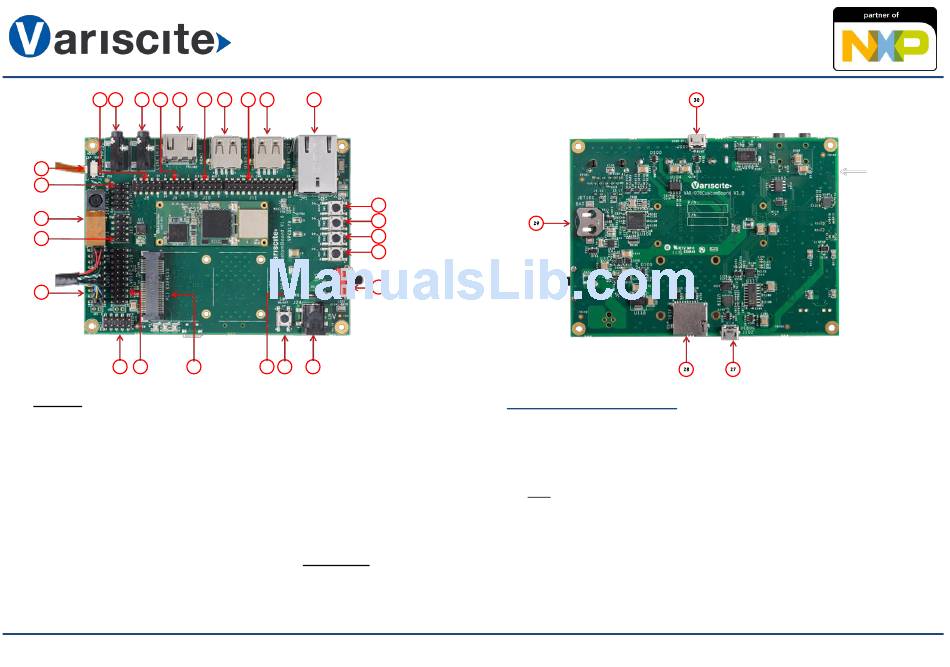

Top side:
1. 5V DC In Jack (J24)
2. ON/OFF Button
3. Boot select switch (SW6)
4. Mini PCI Express Connector
5. LVDS0 Header (Secondary Display)
6. RS232 Header
7. LVDS1 Header (Primary Display) (J18)
8. Miscellaneous Header
9. MIPI CSI-2 Camera [optional add-on]
10. I2C/SPI Header
11. Capacitive Touch (J7)
12. CAN Bus Header
13. Headphones Out
14. Line In
15. DSI Header
16. HDMI
DART-MX6 based on NXP's i.MX6
Evaluation Kit Quick Start Guide
18 19 20 21
22
23
24
25
26
3 2 1
17. Digital Audio Header
18. USB0 Host
19. Parallel Camera Header
20. USB1 Host
21. 10/100/1000Mbps Ethernet
22. USER Button1
23. USER Button2
24. USER Button3
25. Reset Button
26. PWR On Switch (SW5)
Bottom side:
27. USB Debug (J102)
28. micro SD Card slot (J101)
29. RTC Battery Holder
30. USB0 OTG
Evaluation Kit initial Setup
1. Carefully remove the 7" LCD and VAR-DT6CustomBoard board from the
package.
2. Connect the 7" LCD Touch and Display cables to the Evaluation Kit connectors
J7, J18 respectively as shown in the upper left picture.
Note: Display cable connector pins 1, 2 (colored in red) should be connected to
J18 pins 1, 2 respectively.
Touch cable – connect cable with metal contacts facing down.
3. Plug the USB type A to micro B cable between the USB debug connector (J102)
and a PC USB port.
4. Plug the wall adapter's pin into the VAR-DT6CustomBoard
5V power jack (J24) and to a 120VAC~240VAC power source.
