Variscite VAR-SOM-MX93 Quick Start Manual

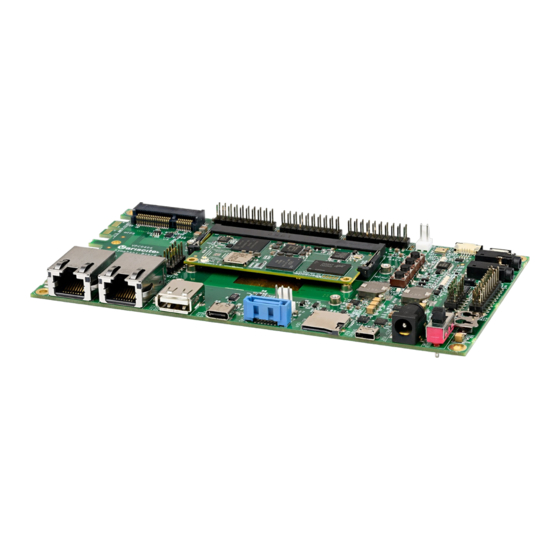

VAR-SOM-MX93 based on NXP i.MX 93
Evaluation Kit Quick Start Guide
12
11
10
9

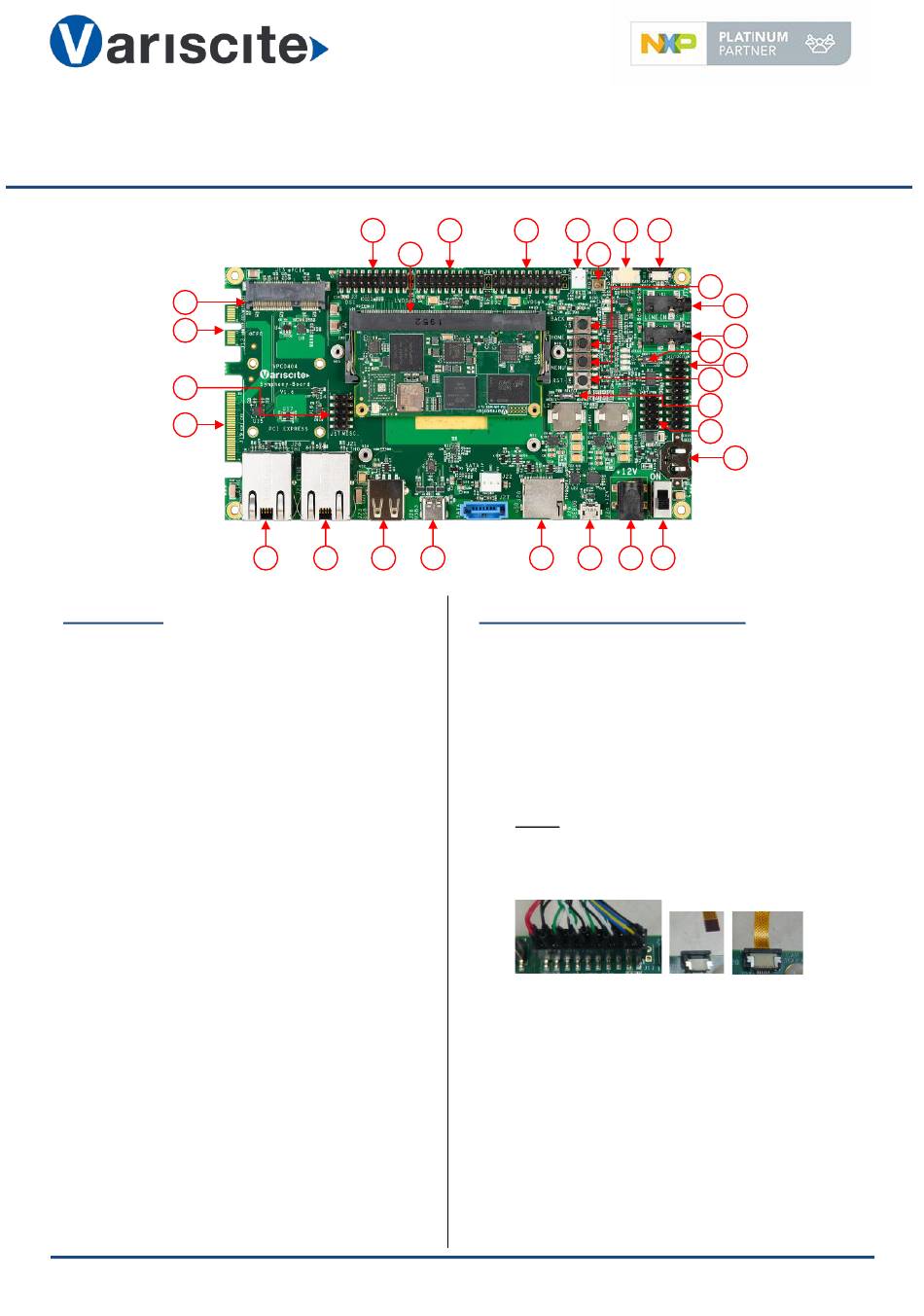

Features:
1. Power ON Switch (SW7)
2. 12V DC In Jack (J24)
3. USB Debug (J29)
4. micro-SD Card slot (J28)
5. USB 3.0 OTG (J26)
6. USB 2.0 Host (J23)
7. Gigabit Ethernet #0 (J21)
8. Gigabit Ethernet #1 (J20)
9. MIPI-CSI #1 Camera connector [optional] (J19)
10. Miscellaneous Header #1 (J17)
11. HDMI/ MIPI-CSI #2 Camera connector
[optional] (J13)
12. Mini PCI Express Connector (J15)
13. Miscellaneous Header #2 (J3)
14. SOM Connector (J1)
15. LVDS#B Header (J5)
16. LVDS#A/ DSI Header (J7)
17. Fan Power Connector (J9)
18. Digital Microphone (U1)
19. Resistive Touch (J10)
20. Capacitive Touch (J11)
21. User Buttons (SW1, SW2, SW4)
22. Line-In Connector (J12)
23. Headphones Connector (J14)
24. Boot Select Switch (SW3)
25. SAI/I2C/SPI/CAN Header (J16)
26. Reset Button (SW5)
27. PWR Select Switch (SW6)
28. UART/PWM Header (J18)
29. RTC Battery Holder (JBT1)
13
14
8 7 6 5
15 16 17
18
4 3
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
Symphony-Board from the package.
2. Connect the 7" LCD Display and Touch cables
to the Evaluation Kit connectors J7, J11
respectively.
Note: connect the display cable with the red
wire on pin 1. Connect the touch cable with the
metal contacts facing down.
3. Plug the USB type A to micro-B cable between
the USB debug connector (J29) and a PC USB
port.
19 20
21
22
23
24
25
26
27
28
29
2 1
