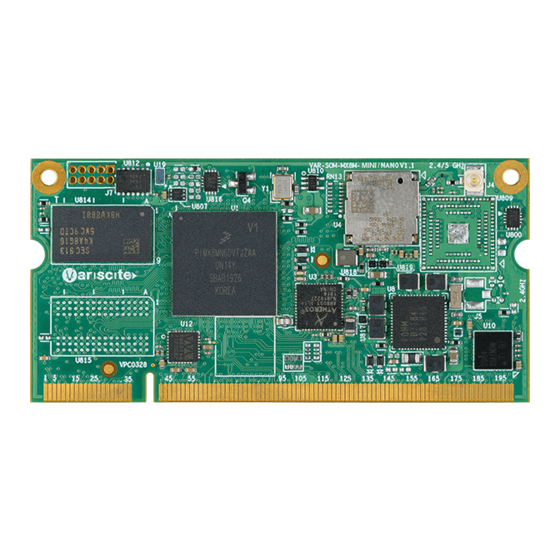

VAR-SOM-MX8M-NANO based on NXP i.MX 8M Nano
Evaluation Kit Quick Start Guide

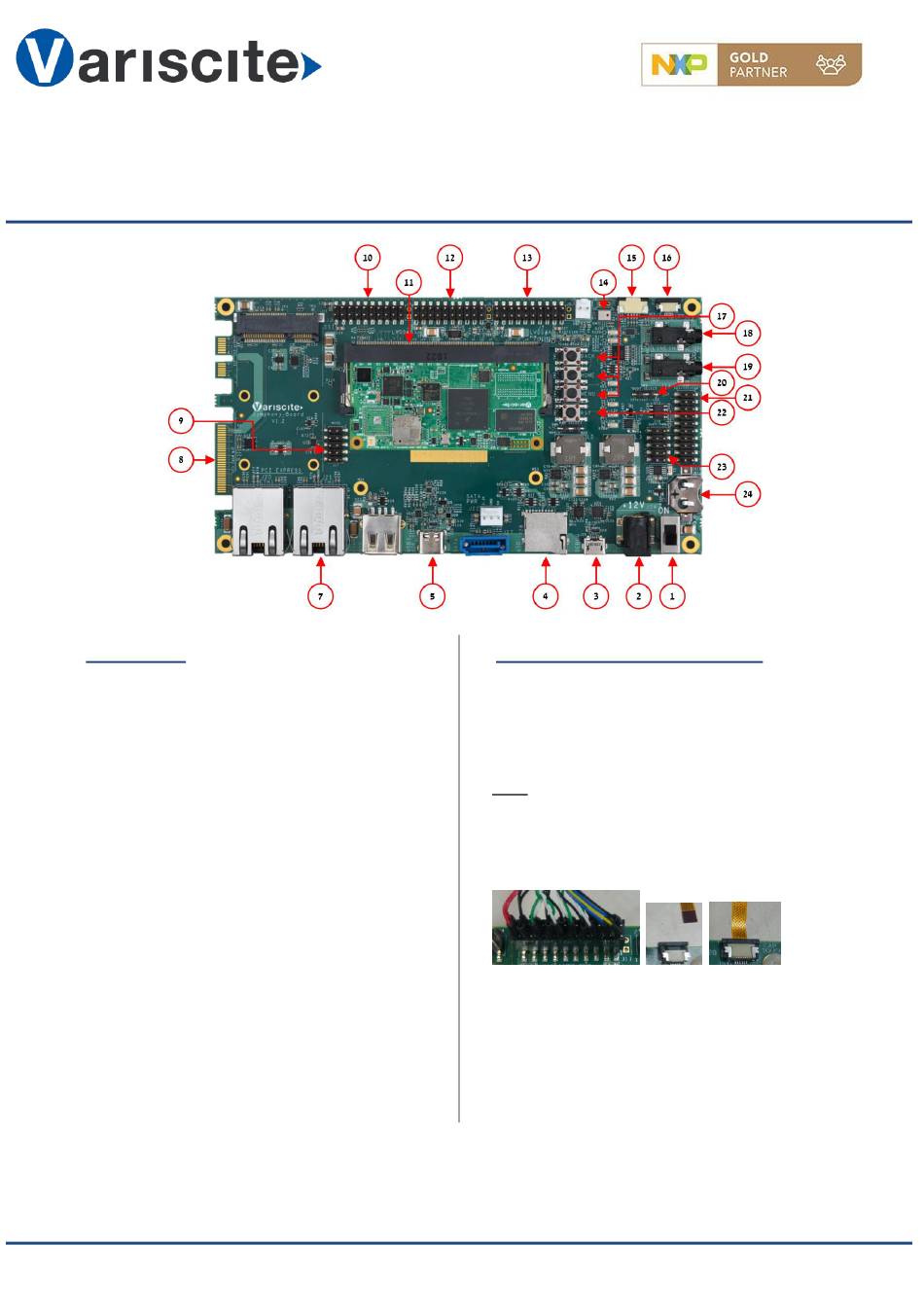

Features:
1. Power ON Switch (SW7)
2. 12V DC In Jack (J24)
3. USB Debug (J29)
4. micro SD Card slot (J28)
5. USB 2.0 OTG (J26)
6. USB 2.0 Host (J23)
7. Gigabit Ethernet #0 (J21)
8. MIPI-CSI Camera connector [optional] (J19)
9. Miscellaneous Header (J17)
10. ONOFF/GPIO Header (J3)
11. SOM Connector (J1)
12. LVDS#B Header (J5)
13. LVDS#A Header (J7)
14. Digital Microphone (U1)
15. Resistive Touch (J10)
16. Capacitive Touch (J11)
17. User Buttons (SW1, SW2, SW4)
18. Line-In Connector (J12)
19.
Headphones Connector (J14)
20. Boot Select Switch (SW3)
21. SAI/I2C/SPI/CAN Header (J16)
22. Reset Button (SW5)
23. UART/PWM Header (J18)
24. RTC Battery Holder (JBT1)
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
Symphony-Board from the package.
2. Connect the 7" LCD Display and Touch cables to
the Evaluation Kit connectors J7, J11 respectively.
Note:
Display cable – connect the cable with the red wire
on pin 1.
Touch cable – connect the cable with the metal
contacts facing down.
3. Plug the USB type A to micro B cable between the
USB debug connector (J29) and a PC USB port.
