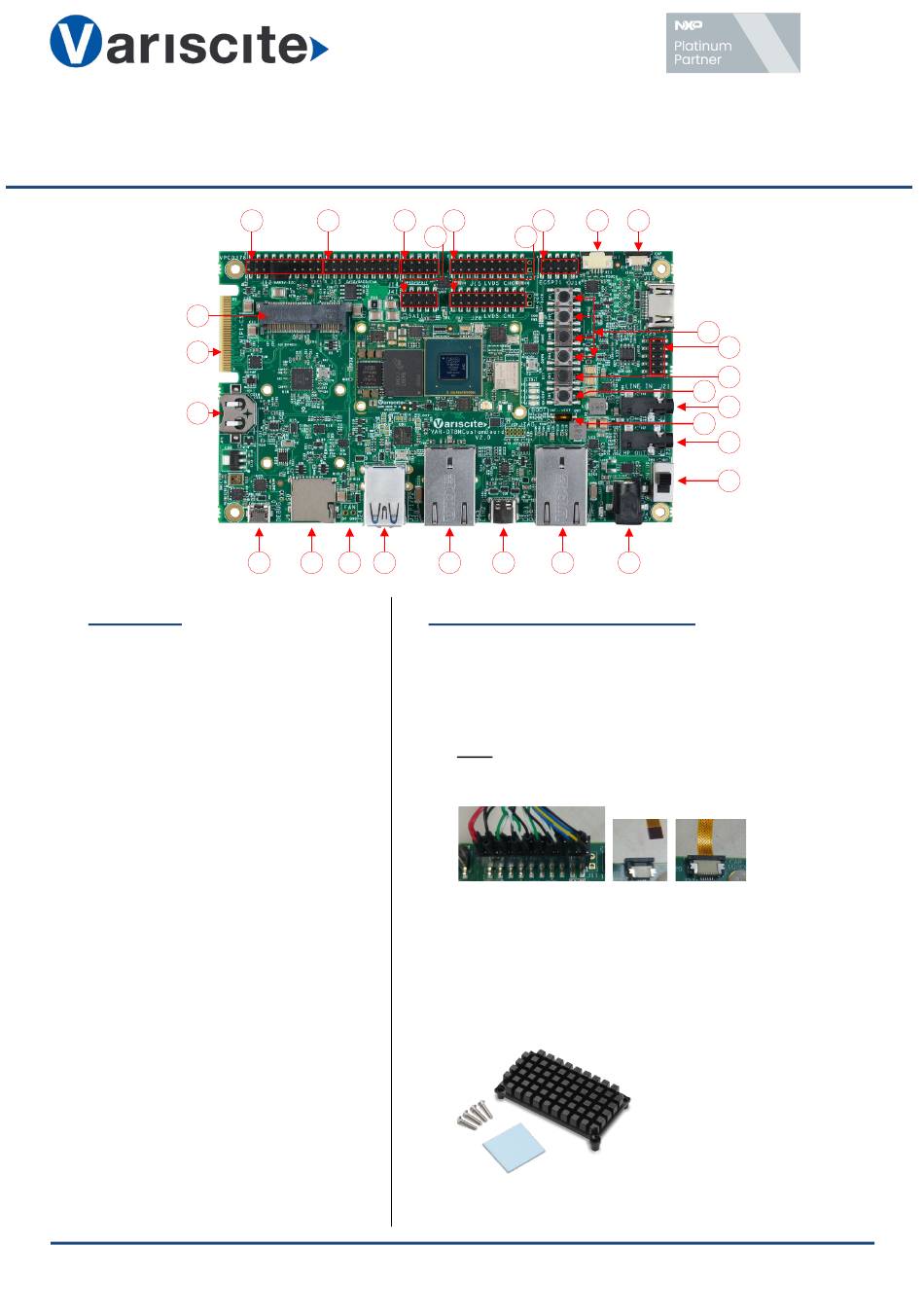

Variscite DART-MX95 Quick Start Manual

DART-MX95 based on NXP i.MX95
Evaluation Kit Quick Start Guide
12
11
10
9
8
Features
1. 5V PWR IN (J4)
2. Gigabit Ethernet #1 (J5)
3. USB 3.0 OTG (J6)
4. Gigabit Ethernet #2 (J43)
5. Dual USB 2.0 Host (J7)
6. FAN 5V (J24)
7. micro SD Card slot (J9)
8. USB Debug (J10)
9. RTC BAT. Slot (JBT1)
10. Single MIPI-CSI (J11)
11. Mini PCIe #1 (J23)
12. UART, I2C (J12)
13. SAI1, PDM, CAN (J13)
14. UART, SPDIF,GPIO (J14)
15. QSPI (J41)
16. LVDS CH0 (J15)
17. LVDS CH1 (J26)
18. ECSPI, Host wake ,CAN(J16)
19. Resistive Touch (J17)
20. Capacitive Touch (J18)
21. User Buttons (SW1-SW4)
22. GPIO (J25)
23. Reset Button (SW5)
24. ON/OFF Button (SW6)
25. Line In (J21)
26. Boot Select Switch (SW7)
27. Headphones (J22)
28. Power ON (SW8)
13 14 16
15
7 6 5 4
Evaluation kit initial Setup
1. Carefully remove the 7" LCD and
VAR-DT8MCustomBoard from the package.
2. Connect the 7" LCD Display and Touch cables to the
Evaluation Kit connectors J15, J18 respectively.
Note:connect the display cable with the red wire on pin 1.
Connect the touch cable with the metal contacts facing
down.
3. Plug the USB type A to micro B cable between the USB
debug connector (J10) and a PC USB port.
4. For heatsink assembly instructions, please follow the
VHP-DT8MM/P documentation. Please note that the
heatsink is mainly used for CPU/GPU intensive
applications and may be required per your specific use
case.
18 19 20
17
3 2 1
21
22
23
24
25
26
27
28
