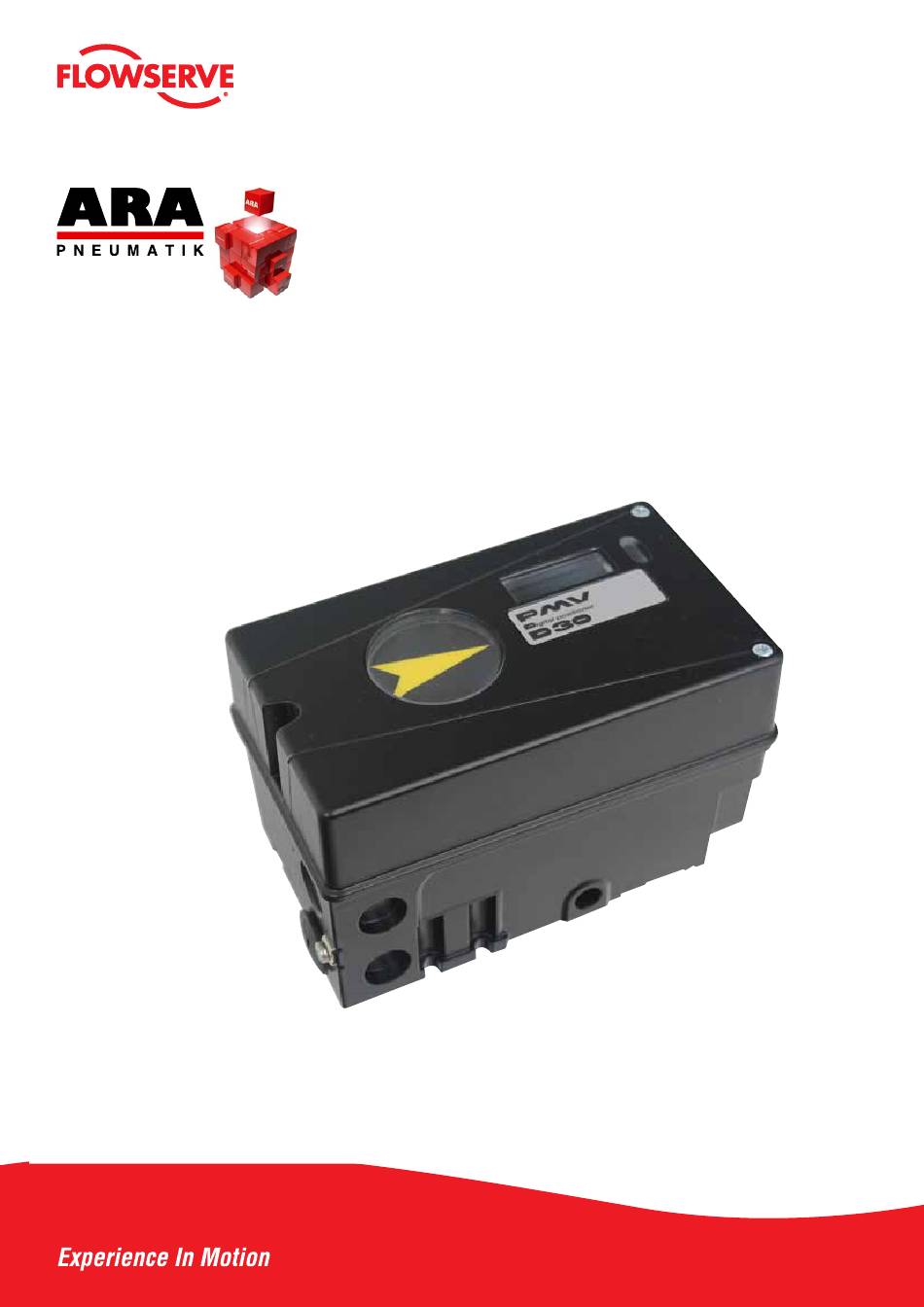

- Page 1 D30 Compact Digital Positioner 53- 012 Wrocław tel. 71 364 72 85 ul. Wyścigowa 38 fax 71 364 72 83 w w w . a r a p n e u m a t i k . p l...
- Page 2 D30 Compact Digital Positioner Description The PMV D30 Digital Positioner series offers intelligent and reliable valve control. Its compact modular design with a variety of mounting options makes it the perfect fit for controlling all major types of valve. It is available with 4-20 mA, Hart, Profibus and Fieldbus communication plus a range of optional integrated limit switches and continuous position feedback.
- Page 3 The D30 is up and running in minutes... 1. LCD with 5 buttons for simple menu navigation. 2. Push 2 buttons simultaneously to perform instant, accurate calibration. 3. Green, yellow, red LEDs providing instant indication of normal operation, fully open/closed valve cut off or alarm at a glance.
- Page 4 The D30 Helps Maximize Plant Uptime The ValveSight predictive diagnostics system provides a dashboard for two way communication between the valve and the operator. It taps into the valve and lets plant staff know not only detailed current status of the valve equipment but also provides indications on what is about to happen to help avoid unplanned stoppages of the plant.
- Page 5 Technical data D30 Compact Digital Positioner Optional plug-in modules Mechanical switches Rotation angle min 2.5° max 100° Stroke Type SPDT From 5 mm (0.2¨) Input signal Size Sub miniature 4-20 mA DC Rating 3 A/125 VAC / 2 A/30 VDC Air supply 1.4-8 bar (20-115 psi) DIN/ISO 8573-1 3.2.3...
- Page 6 Spindle and Dimension Drawings (mm/inch) 80 / 3.150" 65 / 2.559" 50 / .1.968" 35 / .1.378" 20 / .787" 48,3 / 1.902" 28,6 / 1.126" 28,6 / 1.126" 102,5/4.035" 17,7 / .699" 17,7 / .699" Shaft Dimensions S9 Shaft S21 "T"...
- Page 7 P V A PMV, Black cover, Arrow indicator P V D PMV, Black cover, Dome indicator F W A Flowserve, White cover, Arrow indicator F W D Flowserve, White cover, Dome indicator Temperature Range -40°C to 80°C (-40°F to 176°F)
- Page 8 Fax: +86-512-6288-8737 Flowserve Corporation has established industry leadership in the design and manufacture of its products. When properly selected, this Flowserve product is designed to perform its intended function safely during its useful life. However, the purchaser or user Flowserve (China)
