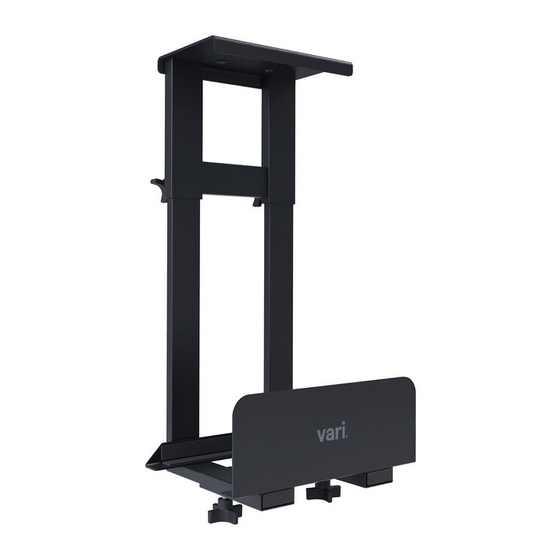

PC Desk Mount
TOP FRAME (A)
x1
BASE FRAME (B)
x1
SIDE FRAME (C)
x1
FRAME POSTS (D)
x2
M8 X 15MM HAND
SCREW (E)
x2
M8 X 25MM HAND
SCREW (F)
x2
FOAM PAD (G)
x1
FOAM PAD (H)
x3
5/32 X 12MM
SCREW (I)
x2
M5 X 15MM
TAPPING SCREW (J)
x4
Advertisement
Related Manuals for Vari PC Desk Mount
Summary of Contents for Vari PC Desk Mount
- Page 1 BASE FRAME (B) FOAM PAD (G) SIDE FRAME (C) FOAM PAD (H) 5/32 X 12MM SCREW (I) FRAME POSTS (D) M5 X 15MM TAPPING SCREW (J) (800) 207-2587 Patent and trademark information: vari.com/patents | ©2024 Varidesk, LLC All rights reserved.
- Page 2 TOOLS NEEDED - Phillips Head Screwdriver (not included) - Power Drill with a Phillips Head Drill Bit WEIGHT CAPACITY 35 lbs (15.87 kg) STEP 1: Prepare the Base Frame Take the BASE FRAME (B) and attach one adhesive FOAM PAD (H) to the frame. Press firmly to secure it in place.
- Page 3 STEP 2: Adjust for Your Computer Tower STEP 3: Attach the Base Frame Measure the height of your computer tower (CPU) to ensure the FRAME POSTS (D) can Slide the BASE FRAME (B) into the tubes of the FRAME POSTS (D). accommodate it.
- Page 4 M5 X 15MM TAPPING SCREWS (J) into the TOP FRAME (A) and tighten securely. Place your CPU in the PC Desk Mount and adjust the frame width and height by loosening or tightening the hand screws to securely hold the CPU in place.
