AGI T2 Tower Assembly And Parts Manual

Tower side walkway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

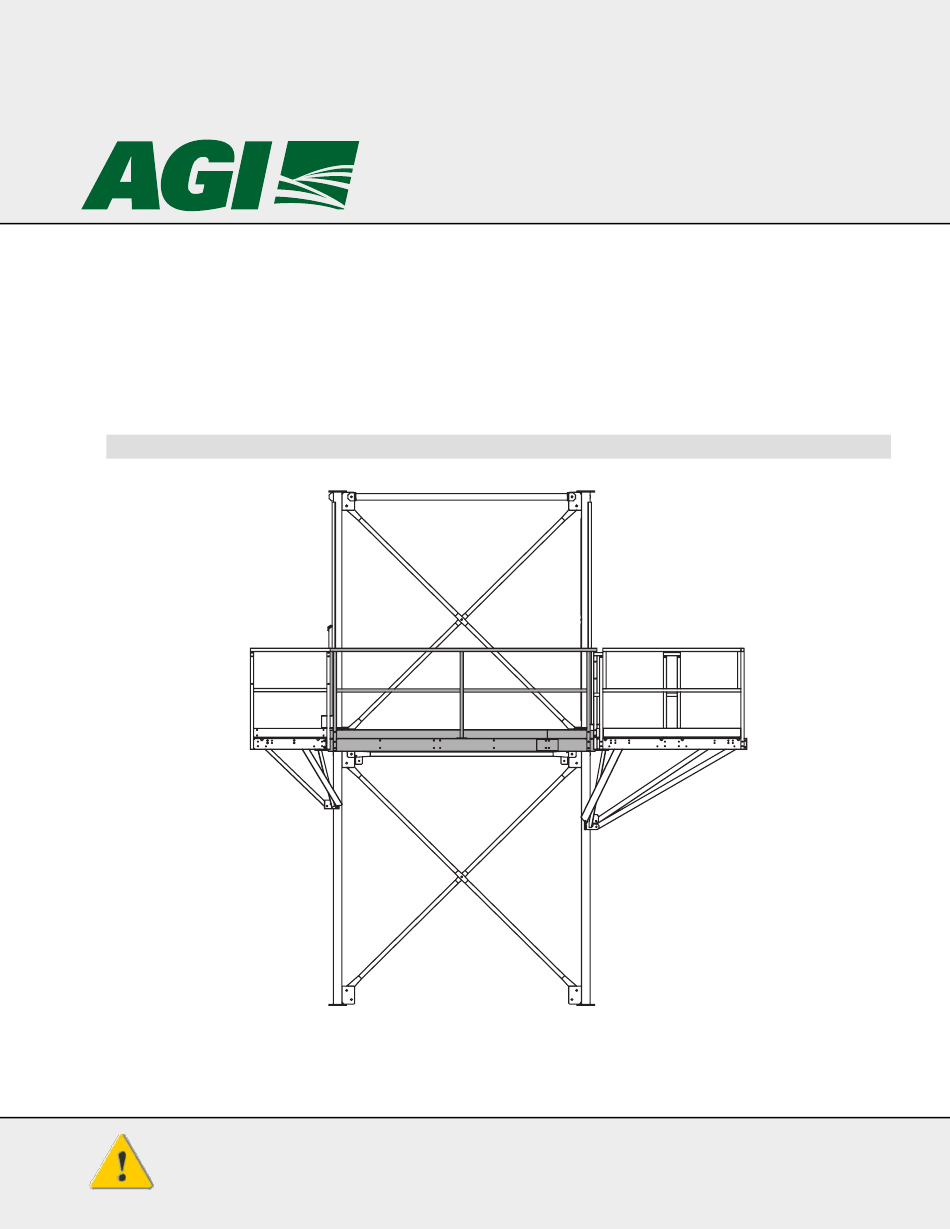

Tower Side Walkway
T2 Tower
Assembly and Parts Manual
Read this manual before using product. Failure to
follow instructions and safety precautions can
result in serious injury, death, or property
damage. Keep manual for future reference.
Part Number: 4000043 R4
Revised: September 28, 2022
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T2 Tower and is the answer not in the manual?

Questions and answers

Related Manuals for AGI T2 Tower

Summary of Contents for AGI T2 Tower

  • Page 1 Tower Side Walkway T2 Tower Assembly and Parts Manual Read this manual before using product. Failure to Part Number: 4000043 R4 follow instructions and safety precautions can Revised: September 28, 2022 result in serious injury, death, or property Original Instructions...
  • Page 2 New in this Manual The following changes have been made in this revision of the manual: Description Section Identity naming updates were made General Safety Information, Install Tower Sections on Corner Landings, Bolt Torque, Warranty...

  • Page 3: Table Of Contents

    TOWER SIDE WALKWAY – T2 TOWER CONTENTS 1. Safety............................... 4 1.1 Safety Alert Symbol and Signal Words..................4 1.2 General Safety Information....................... 5 1.3 Personal Protective Equipment....................6 1.4 Safety Equipment ........................6 1.5 Working At Height Safety......................7 1.6 Fall Restraint and Arrest Safety....................7 1.7 Walkway, Landing, Platform, and Stairs Safety ................

  • Page 4: Safety

    1. SAFETY TOWER SIDE WALKWAY – T2 TOWER 1. Safety 1.1. Safety Alert Symbol and Signal Words This safety alert symbol indicates important safety messages in this manual. When you see this symbol, be alert to the possibility of injury or death, carefully read the message that follows, and inform others.

  • Page 5: General Safety Information

    • Follow a health and safety program for your worksite. Contact your local occupational health and safety organization for information. • Contact your local representative or AGI Grand Island if you need assistance or additional information. • Always follow applicable local codes and regulations.

  • Page 6: Personal Protective Equipment

    1. SAFETY TOWER SIDE WALKWAY – T2 TOWER 1.3. Personal Protective Equipment The following Personal Protective Equipment (PPE) should be worn when installing the equipment. Safety Glasses • Wear safety glasses at all times to protect eyes from debris. Coveralls •...

  • Page 7: Working At Height Safety

    TOWER SIDE WALKWAY – T2 TOWER 1. SAFETY 1.5. Working At Height Safety • Ensure that all work at height is properly planned, organized and carried out by a competent person. • Use appropriate work equipment and make sure that they are inspected to ensure safety.

  • Page 8: Assembly

    1. Refer to the AGI Grand Island T2 Tower manual (part number 4000037). 2. Completely assemble together the T2 Tower Sections at the tower side walkway installation location. 3. Completely assemble together the T2 Tower corner landings and/or switchback landings at the tower side walkway installation location. See the following figure.
  • Page 9 TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY Figure 1. Install Tower Sections and Corner Landings at the Tower Side Walkway Installation Location TOWER SIDE WALKWAY INSTALLATION LOCATION T2 TOWER CORNER LANDING T2 TOWER CORNER LANDING STRGI-0105 4000043 R4...

  • Page 10: Splice Together Walkway Platform Assemblies

    2. ASSEMBLY TOWER SIDE WALKWAY – T2 TOWER 2.3. Splice Together Walkway Platform Assemblies Note The channel connecting bracket should already be installed to the long platform assembly. Install the channel connecting bracket center bolts. 1. Use the channel connecting bracket as a splice between platforms. Slide the short platform assembly in between the channel connecting brackets.

  • Page 11: Flange Nut

    TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY Install the channel connecting bracket upper and lower bolts. 1. Install 3/8” x 1” hex bolts, flat washers, and flange nuts at the upper and lower ends of the channel connecting brackets as shown in the following figure.

  • Page 12: Install The Handrails

    2. ASSEMBLY TOWER SIDE WALKWAY – T2 TOWER 2.4. Install the Handrails 1. Install the handrails to the walkway platforms. 2. Install 5/16” x 3” full thread bolts through the handrail post ends and the walkway platform ends as shown in the following figure.
  • Page 13 TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY 5. Install the handrail mid posts to the walkway platform. Use 5/16” x 1” hex bolts and flange nuts as shown in the following figure. 6. Securely all tighten all hardware. Figure 5. Install Handrail Mid Posts to the Platform.
  • Page 14 2. ASSEMBLY TOWER SIDE WALKWAY – T2 TOWER Note Once assembled the platforms and handrail assembly should appear as shown in the following figure. Figure 6. Platforms and Handrail Assembly STRGI-0112 4000043 R4...

  • Page 15: Install The Tower Side Walkway To The Landings

    TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY 2.5. Install the Tower Side Walkway to the Landings Use adequate and proper lifting equipment. 1. Install the tower side walkway to the landings at each tower side walkway end as shown in the following figure.
  • Page 16 2. ASSEMBLY TOWER SIDE WALKWAY – T2 TOWER 2. Lower the tower side walkway locating pins into the landing receivers as shown in the following figure. Make certain each locating pin connects directly into a receiver. Figure 8. Lowering the Locating Pins into the Receivers...
  • Page 17 TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY 3. After all locating pins are securely resting in position, install 3/8” X 1 1/2” grade 5 hex bolts though the connecting holes on the underside of the walkway to connect the walkway and landing. See the following figure.
  • Page 18 2. ASSEMBLY TOWER SIDE WALKWAY – T2 TOWER 6. After the tower side walkway is bolted to the landings, the tower side walkway and landings assembly should appear as shown in the following figure. Figure 10. Tower Side Walkway and Landings Assemblies...

  • Page 19: Install Handrail Clamps

    TOWER SIDE WALKWAY – T2 TOWER 2. ASSEMBLY 2.6. Install Handrail Clamps 1. After the tower side walkway and landings assemblies are installed, install handrail clamps between each tower side walkway and each neighboring landing handrail. See the following figure.

  • Page 20: Appendix

    3. APPENDIX TOWER SIDE WALKWAY – T2 TOWER 3. Appendix 3.1. Tower Side Walkway Parts Identification 3.1.1 Primary Parts Identification Figure 13. 10’ (3,048 mm) Tower Side Walkway Figure 12. 8’ (2,438 mm) Tower Side Walkway (PN 4503212) Primary Parts...
  • Page 21 TOWER SIDE WALKWAY – T2 TOWER 3. APPENDIX Figure 14. 12’ (3,658 mm) Tower Side Walkway (PN 4508313) Primary Parts STRGI-0119 Part Number Description 4508399 12’ (3658 mm) tower walkway long platform 4508400 12’ (3658 mm) tower walkway short platform 4508401 12’...
  • Page 22 3. APPENDIX TOWER SIDE WALKWAY – T2 TOWER Figure 15. 14’ (4267 mm) Tower Side Walkway (PN 4508314) Primary Parts STRGI-0120 Part Number Description 4508402 14’ (4267 mm) tower walkway long platform 4508403 14’ (4267 mm) tower walkway short platform 4508404 14’...
  • Page 23 TOWER SIDE WALKWAY – T2 TOWER 3. APPENDIX Figure 16. 16’ (4877 mm) Tower Side Walkway (PN 4508315) Primary Parts STRGI-0121 Part Number Description 4508402 16’ (4877 mm) tower walkway long platform 4508403 16’ (4877 mm) tower walkway short platform 4508404 16’...

  • Page 24: Hardware

    3. APPENDIX TOWER SIDE WALKWAY – T2 TOWER 3.1.2 Hardware Table 1. Tower Side Walkway Hardware STGI-0553 STGI-0555 3/8” X 1” GRADE 5 3/8” x 1 1/2” HEX BOLT (grade 5) HEX BOLT 90000033 3/8” FLAT WASHER 90000031 90010020 STGI-0554 3/8”...

  • Page 25: Bolt Torque

    Tighten all bolts to the torque specified, unless otherwise noted. Check tightness periodically, using Table 2 as a guide. Replace the hardware with the same strength bolt, contact AGI Grand Island if you are unsure. Table 2. Recommended Bolt Torque...

  • Page 26: Warranty

    4. WARRANTY TOWER SIDE WALKWAY – T2 TOWER 4. Warranty AGI Grand Island (the Company) makes the following warranty to the initial retail purchaser of its products (the Customer). Materials and Workmanship The Company warrants products manufactured by it to be free from defects in materials and workmanship in normal use and service for a period of one (1) year after date of delivery to the Customer.
  • Page 27 TOWER SIDE WALKWAY – T2 TOWER 4. WARRANTY 4000043 R4...
  • Page 28 2928 E. Hwy 30, Grand Island, Nebraska, USA 68801 2928 East Highway 30, Grand Island, NE 68801, USA 2928 E. Hwy 30, Grand Island, Nebraska. USA 68801 P 308.384.9320 | F 308.382.6954 | E sales@aggrowth.com...
