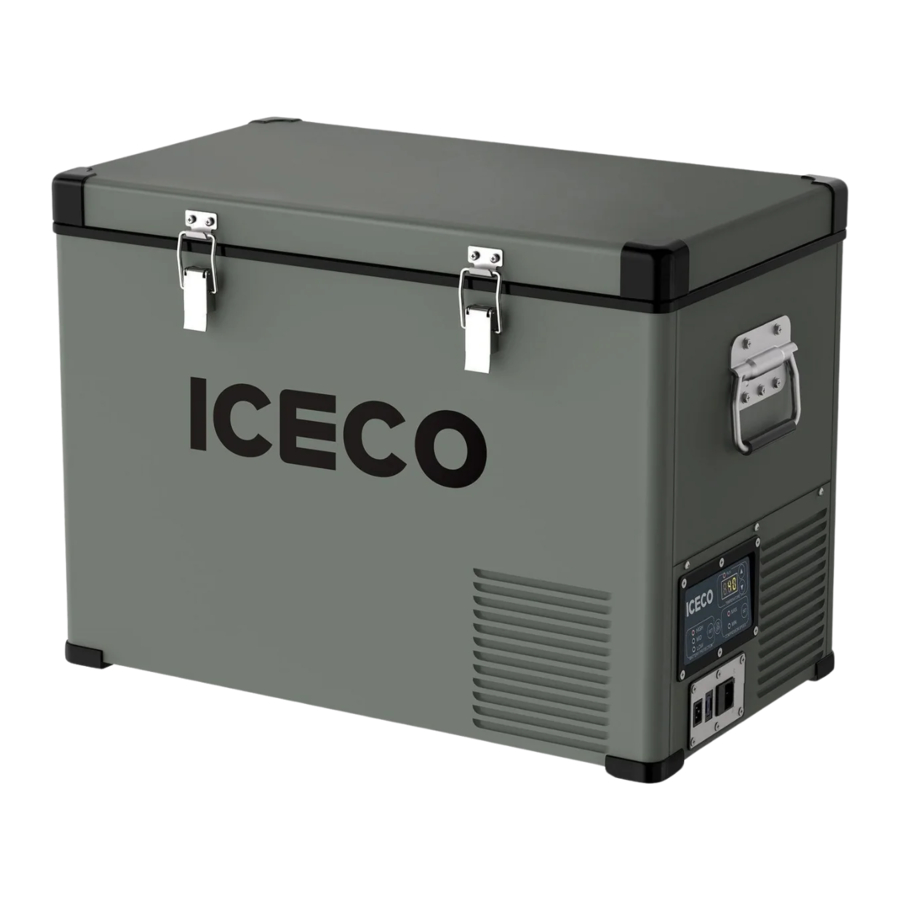

Iceco VL45 Manual

Supply Details

VL45

*Note: The AC cable is usually used for power bank, vehicles, onboard ships with AC sockets.

*Note: Unit can be used with 100-125V~, when connected to an AC cable. If unit is used with 200-240V~, please contact ICECO service team to get another AC cable. The AC cable is usually used for power bank, vehicles, onboard ships with AC sockets.

Operation

1. Battery Protection Setting (DC only)
2. Power (Press & Hold to turn on/o )
3. Compressor Speed (MAX/MIN Mode)
4. Temp. Setting (Up)
5. Temp. Setting (Down)

ON/OFF Button
When power-on, short press the "" button, the system enters the standby mode; In the standby mode, short press the "" button, the system enters the power-on mode.

Setting Temperature
After the fridge turned on, the fridge's CURRENT interior temperature reading will appear on the display, as a solid/non-flashing number.

Switch Between °C to °F
After the fridge turned on, press and hold the Botton "" & "" to switch between Celsius "" and Fahrenheit "".

MAX & MIN Mode
After the fridge turned on (Press & Hold the "" Button), you can press the "" Button to switch between MAXIMUM or MINIMUM compressor speed for the fridge.
To change the fridge's set temperature: Use Temperature "" or Temperature "" Buttons to change the fridge's set temperature.
The "" temperature will appear as a FLASHING number, and after the temperature is "", the display will return to showing the fridge's CURRENT interior temperature.

Triple Battery Protection Operation
After the fridge turned on, Press "" Botton to adjust the fridge's low battery protection level pre-sets.

Error Code And Solutions

E1

Error Code
The DC Voltage is below the protection settings and the battery protection mode is activated.

Solutions

1. In case of using in the car, turn the car ignition on and start the refrigerator again;
2. In the case of using the AC cable to connect the electricity at AC socket, you can adjust the battery protection to medium or low mode. If it still does not start after adjusting the mode, then the adapter is faulty and needs to be replaced with a new one.

E2

Error Code
The cooling fan is over-loaded with more than 1A of current.

Solutions
If the fan does not start but the compressor does, this is a short-circuited fan. You can x the error code by replacing the fan.

E3

Error Code
Repeated switching of the machine or a faulty input voltage causes this motor start error. The pressure difference in the refrigeration system is too high.

Solutions

1. Make sure to turn off the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;
2. The input voltage is too low to reach the minimum starting voltage required by the battery protection, resulting in the refrigerator can not start. Reduce the starting voltage gear can solve the problem.

E4

Error Code
Minimum motor speed error, the compressor is over-loaded, and the motor cannot maintain its minimum speed of 1850 rpms.

Solutions

1. Make sure to turn off the machine and wait for 5 minutes before turning it on again. If the compressor starts and then stops a few seconds later, it is an E1 fault, and you need to refer to the above E1 troubleshooting method for troubleshooting;
2. The compressor will break down at ambient temperatures above 55°C. Try to avoid using the refrigerator at high ambient temperatures. Make sure there is enough space outside the compressor cover to dissipate heat
   (more than 5cm on the left and right sides and 10cm space on the front air outlet).
   Check that the cooling fan terminals are connected tightly. A non-functioning cooling fan will result in the compressor being unable to dissipate heat and the temperature will rise.

E5

Error Code
Compressor control module temperature too high or too low protection.
(ambient temperature is too high or too low, or the system load is too high, causing the internal temperature of the module/ECU > 212°F or< 14°F)

Solutions

1. The compressor will break down at ambient temperatures above 55°C. Try to avoid using the refrigerator at high ambient temperatures. Make sure there is enough space outside the compressor cover to dissipate heat
   (more than 5cm on the left and right sides and 10cm space on the front air outlet).
   Check that the cooling fan terminals are connected tightly. A non-functioning cooling fan will result in the compressor being unable to dissipate heat and the temperature will rise.
2. For ECU (module) issues, you can adjust the battery protection mode and then make sure the starting voltage is normal. If that doesn't x the problem, the ECU will need to be replaced.

E6/LL

Error Code
The temperature sensing head is loose or damaged.

Solutions

1. Check the temperature sensing head to see if the connection is tight. If it is loose, reconnect it and install it in place.
2. If the sensor head is damaged, replacing the sensor head can solve the problem.

E7/HH

Error Code
NTC failure (short circuit)

Solutions

1. Check the temperature sensing head terminals for water ingress. Try replacing the temperature sensing head to see if the refrigerator works properly.
2. Check the terminals on the control panel end for shorts.

Cleaning And Maintenance

Cleaning

• Always unplug the fridge before cleaning the fridge.
• You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent.
• You may use a soft sponge, or microfiber cloth.
• When not in use, it's better to leave the lids open to reduce odors.
• If odors occur, please clean the fridge thoroughly, or use baking soda in a bowl to absorb odors.

Danger Behavior

Use pointed objects to scrape, or defrost ice.
Use abrasive detergents to clean.
Use heavy duty sponges (due to scratching).
Clean the fridge with running water or pressure washer.
Clean the fridge without power input covers secured.

Troubleshooting (Q & A)

Heat Resistance & Water Resistance
Heat Resistance
ICECO refrigerators are engineered to operate at an ambient temperature of up to 55°C (131°F).
Water Resistance
ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet.
We DO NOT recommend exposing the fridge to moderate or heavy rain.
As with all electrical appliances, over-exposure to moisture may shorten the fridge's life.

What should I do if the refrigerator is upside down when it is delivered?
Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.

Why did it change back to the original temperature after setting the temperature?
The Solid/Non-Flashing number on the display is the CURRENT interior temperature. The Flashing number is your SET temperature after adjustment.
The compressor will shut off when the SET temperature is reached.

Why is there a temperature difference (between the actual temperature of the refrigerator and the set temperature)?
Because of the sinking nature of cold air, the different temperatures may exist in different locations in the refrigerator (the temperature of the bottom will be the lowest). The panel only shows the average temperature of the refrigerator.

What kind of cable do I need to use in the car and at AC socket?
The DC cable is provided. You can power it from your vehicle's cigarette lighter plug using the DC cable. You can also power it at AC socket, but you need to use with AC cable as precondition.

What is the function of triple battery protection? How do they work?
The triple battery protection is designed to prevent over-discharge and battery depletion.
When the measured DC voltage is below the set value, the compressor is shut off to prevent battery depletion.

VOLTAGE	PROTECTION POSITION	LOW	MED	HIGH
		1Bar	2Bar	3Bar
12V	CUT OFF (V)	9.6	10.4	11.1
	CUT IN (V)	10.9	11.7	12.4
24V	CUT OFF (V)	21.3	22.8	24.3
	CUT IN (V)	22.7	24.2	25.7

For example, when you switch to a LOW MODE, the battery voltage is under 9.6 volts, the refrigerator will automatically cut the power OFF;
The refrigerator will start again till the battery voltage reached back to 10.9 volts.

What is the 24 hours power consumption?

This data is only suitable for laboratory testing, and the actual power consumption is subject to actual conditions.

What is the specification of the fuse of the refrigerator?
The supply line is protected by a 15A fuse located in the refrigerator.

Accessories

(Purchase Separately)

Fridge Accessories

Power Support Series

ICECO Portable Fridge Catalog

Safety Instruction

• Please read the user manual and safety instructions carefully before using the appliance.
• By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage.
• The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have.
• The appliance shall not be exposed to moderate /heavy rain.
• Place the refrigerator on a dry, secure surface, with adaquate ventilation.

Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements.
Do not use this appliance near direct heatsources, such as an open flame or radiator.
Do not place open containers of liquid inside the fridge.
Please don't put hot/warm food into the fridge directly without letting it cooling off. Place/arrange the content of your fridge securely when using the refrigerator inside a moving vehicle.

• To maximize energy savings, please make sure the lid is closed and secure, and only open the fridge when you need to.
• The power cable must only be replaced by qualified technical personnel and by an assistant body authorized by the manufacturer.
• Before carrying out any maintenance operations on the refrigerator, disconnect all power sources from the fridge.
• This appliance is suitable for camping use.

Please keep the fridge in a well ventilated area.
Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
Do not store explosive items, such as aerosol cans with a flammable propellant in this appliance.
Risk of re and electrical shock.
Do not let hot items touch the plastic parts of the appliance.
Do not put flammable products or items in, near or on the appliance.
Do not touch the compressor or the condenser when the fridge is operating. They may be very hot.
When setting up the appliance, ensure the supply cord is not trapped or damaged.

Further information is provided on the technical data label inside the product.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. This appliance is intended to be used in applications such as: Car, truck, RV, camping trip, van, boat, suv, jeep, overlanding life and so on.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person in order to avoid a hazard.
5. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
6.
   Risk of child entrapment. Before you throw away your old refrigerator or freezer:
   • Take off the doors.
   • Leave the shelves in place so that children may not easily climb inside.
